Netgate 4100 Base PFSENSE+ Security Gateway Network Firewall

Product information

Code 669853624399
Select a configuration:
Sort by color:
Status: New
In stock: 5 PCs
Approx weight: 0 kg
Sales volume for 30 days: 1
Price per 1 piece :
Local delivery:
Quantity: + -
Minimal lot:
Selected configuration: Sort by color: One year warranty
Total:
Add to cart

Add to favorites

Sort by color: One year warranty; Three -year warranty;
Original description

Note: This product is sold in the United States, which does not provide return and exchange services

If you need to consult the Netgate series of products, please contact us

With pFSENSE®Plus software's netgate®4100 is one of the most common security gateways in similar products.It combines dual -core Intel® Atom®The C3338R Core CPU with the power of integrating QuickAssist and AES-NI, along with 4 GB of memory, provides an excellent user experience, providing over 8.15 Gbps of L3 routing in six separate systems - (2) 1 GbE and (4) 2.5 GbE - flexible WAN/LAN ports.



Netgate 4100 is very suitable for flexible port configuration to support professional families, small and medium -sized enterprises or marginal deployment of 1 to 2.5 Gbps Wan functions of RJ45 copper/SFP optical fiber combination WAN port and (4) discrete and non -exchange.RJ-45 Ethernet LAN port-all uses a quiet desktop appearance.

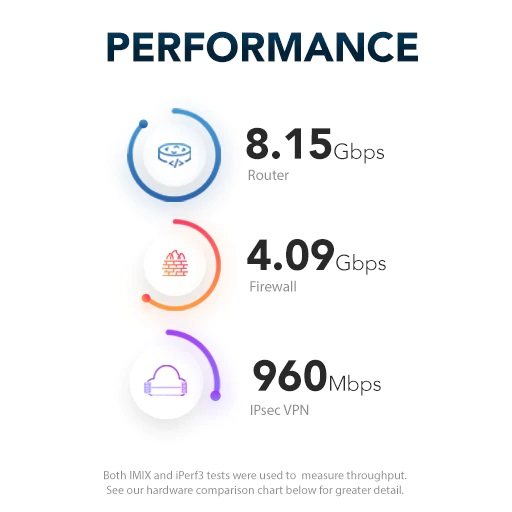

L3 forward

IPerf3 traffic: 8.15 gbps
IMIX traffic: 3.24 Gbps
Firewall
(10K ACL)

IPerf3 traffic: 4.09 gbps
IMIX traffic: 1.40 Gbps
IPsec VPN
(AES-GCM-128 with QAT)

IPerf3 traffic: 960 Mbps
IMIX traffic: 312 Mbps
Use PFSENSE PLUS Software version 22.01 Netgate 4100 performance test

CPU: Intel® Atom®C3338R, with QAT, 2 cores @ 1.8 GHz.Provide 8.15 GBPS routes for common iPerf3 traffic and firewall through firewall with more than 4.09 GBPS.

Network port: 6 independent 1G and 2.5G flexible WAN/LAN configuration.Use the combination of 6 ports to obtain the maximum flexibility -with 1 and 2.5 Gbps WAN functions of cross -RJ45 and SFP ports, and 4 discrete and non -exchange 2.5 GBPS LAN ports

Storage: 16 GB eMMC (or optional 128 GB NVMe M.2 SSD and Netgate 4100 Max)

Memory: 4 GB DDR4 RAM, DDR4 memory can provide more stable and higher transmission rates for memory -type applications (such as IDS/IPS).

Cooling: The passive cooling system and low power consumption of Netgate 4100 provide efficient thermal management and the mute operation expected by small equipment, although its performance has been significantly improved.

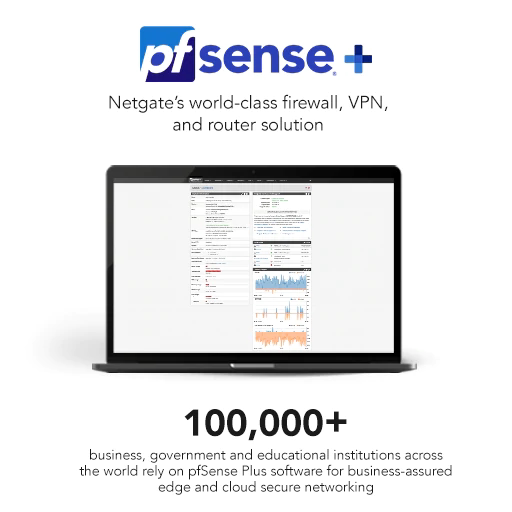

PFSENSE PLUS software provides the performance, flexibility, reliability and business guarantee expected by leading security network applications:

The performance of up to 10 GBPS
Flexible third -party application options
Traditional management mechanism
The reliability of long test
Complete business guarantee support
PFSENSE PLUS includes load balance, traffic plastic surgery, compulsory portal, UTM device, DNS/DHCP server, IDS/IPS, transparent cache agent, web content filtering, fault transfer WAN, and so on.

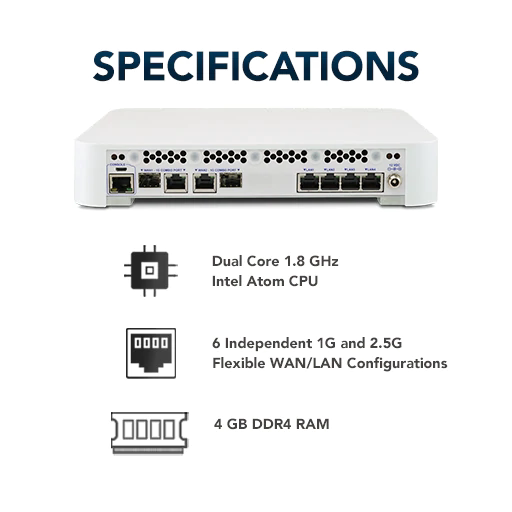

Hardware specifications:

CPU

Intel® Atom® C3338R with QAT, 2-core @ 1.8 GHz (Denverton family)

CPU Cores

Dual Core

Physical Network I/O ports

(2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) Combo WAN ports

(4) 2.5 Gbps RJ-45"direct" (unswitched) ethernet  LAN ports

Storage

16 GB eMMC (onboard - soldered)

Memory

4 GB DDR4 w/o ECC, single channel

Physical Expansion Card Slots

2x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe) (PCIe, USB 2.0, USB 3.0)

Console Port

1x auto-detect console port:"Cisco pinout"RJ45 + micro-USB (micro-USB cable included with each system)

USB Ports

2x USB 3.0 jacks (USB-A female) located on left side rear when viewed from system front

LED

3x 4-color LEDs (RGB + amber) Software / bootloader controller via Microchip MCU

Enclosure

Desktop - Aluminum, plastic, and steel enclosure.
10 x 7.88 x 1.88 inches
254 x 200 x 47.63 mm

Mounting

Optional wall mount kit

Cooling

Passive

Power

External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector
- AC Inlet: IEC320-C7 (2 PIN) -
- Power Cord: One US, UK, EU or ANZ power cord included depending on the regional system SKU on box.
- US Power Cord: NEMA 1-15-P to IEC320-C7
- UK Power Cord: BS 1363 to IEC320-C7
- EU Power Cord: CEE7/16 to IEC320-C7

Environmental

0°C (32°F) to 40°C (104°F) - ambient

CertificationsCE, CB, FCC (Class B), RoHS, CCATS, UL, RCM
