Furman CN-3600S E advanced power protection regulator remote interface configuration

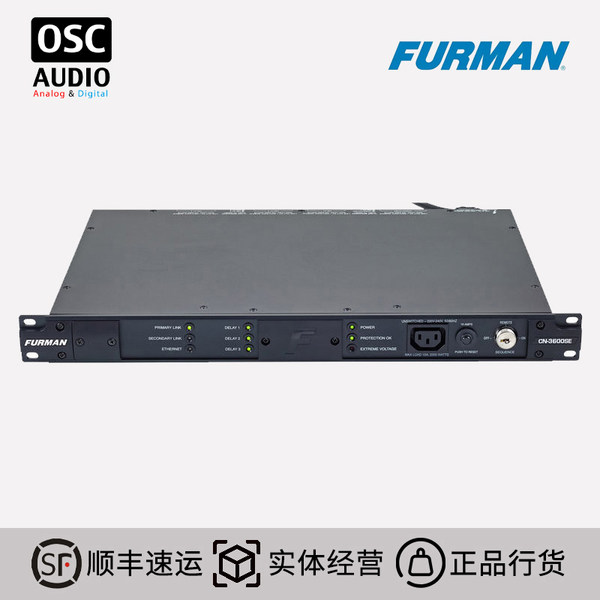

The Furman CN-3600SE SmartSequencerTM SmartSequencerTM combines protected AC power distribution and filtering with timing system power on/off to present a 220-240VAC rack-mount device with a 1U rack unit size.
(I) Functional characteristics:
1. SmartSequencing Intelligent timing technology allows large and complex professional audio and video systems to safely control power, with the simple press of a button or turn the key.
2. Multiple devices can be daisy-chained, with distances between devices up to 300 meters, and communicate in two directions, thereby performing timing power control for large and/or complex systems.
3. Compatible with RS-232 control and provides an instruction set integrated into the control system.Optional RS-232 to Ethernet adapter is used for control, programming, and monitoring from any network-capable device, via remote login, directly via HTTP connection, or Panamax/Furman's BlueBOLT platform.
4. Series Multi-level Protection (SMP) ensures zero fault downtime, suitable for critical installations, and can safely absorb, clamp and dissipate instantaneous surges and sharp waves without damaging internal circuits or connected equipment.
5. Extremely high voltage shutdown (EVS) protection from catastrophic undervoltage (subsidized by 175V) or overvoltage (subsidized by 275V).The device can be set to automatically or manually resume after the EVS state is over.
6. Linear filtering technology (LiFT) reduces AC noise in the audio and video frequency bands to ensure the best performance of the connected equipment.
7. The safety cover and the timing open/close key switch prevent unauthorized personnel from incorrectly operating the DIP switch or turning on/off the device.
8. The fire alarm is turned off.
9.16 amps total capacity.
(II) Furman CN-3600SE Technical parameters:
AC voltage input range 180-270 VAC, 50/60Hz
Maximum AC current rated 16 A (thermal circuit breaker)
AC Power cord: 1.5mm2x3, 2.5m long, black, IEC C-19 female to Schuko
CEE 7/7 male plug
AC socket:
Convenient socket (front panel) 1 IEC C-13 (non-switching)
Rear panel socket: 1 pair of IEC C 13 (non-switching), 3 pairs of IEC C13 (time sequence, each pair is subject to separate delay control)
Surge/Unvoltage-Overvoltage Protection:
AC Surge Protection: Series Multi-Level Protection (SMP)
Spike protection mode: line to neutral, zero ground leakage
Pin wave clamping voltage: 375 V Peak @ 6,000 V/3,000 A
Reaction time: 1 nanosecond
Maximum surge current: 6,500 A
AC Undervoltage Protection: 175VAC+/-5VAC
AC Overvoltage Protection: EVS, 275VAC+/-5VAC
AC Overvoltage Reset Mode: Manual and Automatic Reset (configurable)
AC filtering:
LiFT
Noise attenuation: linear, 10dB @10KHz, 40dB@100KHz, 50dB@500KHz
Operating temperature range: 5C (40F) to 40C (105F) degrees
Humidity range:<90% rH (relative humidity)
user interface:
Key switch: Front panel, 3 position key switch (on, off, remote)
Key: Included, 1 pair
Key switch: Front panel, hidden under the safety cover
Circuit breaker: Front panel, key switch, 16A thermal circuit breaker
Front panel diagnostic indicators: primary connection, secondary connection, Ethernet, remote shutdown, delay 1, delay 2, delay 3, power supply, protection OK, extremely high voltage
Front panel DIP switch: Hide under the safety cover, 1 minute delay, 2 minute delay, 4 minute delay, Forced turn off NO/NC, 12V mode on/off Ground mode on, instant/continuous, primary/secondary, EVS reset automatic/manual
Potentiometer: Front panel, hidden under the safety cover, delay fine adjustment
Control/Status/Trigger (Rear Panel):
Remote control terminal: +5-30VDC input, 12VDC (10mA) output
Intelligent timing: 4-pin Phoenix interface with threaded sleeve, main and secondary connection (current loop - 300 m nominal)
Remote terminal: 4-pin Phoenix connector with threaded sleeve; +12V, STAT, REM, GND
Forced Close/Delay 3 Terminal: 5-pin Phoenix Head with Threaded Sleeve, Forced Close, Delay 3
RS-232 Compatibility: Compatible, DE-9 Connector
IP addressing capability: Optional, via BB-RS232 Ethernet/RS-232 adapter (sold separately) for direct IP control via Telnet, HTTP, BlueBOLT
Voltage meter: Get available data via RS-232 or Ethernet options, +/- 2VAC accuracy
Alternator: Get available data via RS-232 or Ethernet options, +/-1A accuracy
Current consumption (no load): 10 W
Parameters will change due to product upgrades and updates.Safety certification mark: CE RoHS compatible: Yes
