GPS NEO-M9N original imported GNSS module four-star multi-frequency bd, galileo, glonass,

Product information

Code 634330789653
Status: New
In stock: 99999 PCs
Approx weight: 0 kg
Sales volume for 30 days: 1
Sales volume: 10
Price per 1 piece :
38.13 $6.35 $
Local delivery:
2.16 $
Quantity: + -
Minimal lot:
Total:
8.51 $
Add to cart

Add to favorites

Vendor info

Name: hummer_he
Shop name: 深圳市谷瑞科技
Shipping estimate: 3
Goods valuation: 3
Service evaluation: 3
Add vendor to favourites
Rating:
Model: NEO-M9N-00B-00;
Brand: UBX;
Place of origin: Other overseas regions;
Applicable scene: For leisure;
Size: 16x12x2mm;
Cold start capture time: 26 seconds;
Speed accuracy: 0.1m/s;
Module type: GPS+Beidou;
Positioning accuracy: 2m;
Original description



1 Functional description
1.1 Overview
The NEO-M9N GNSS receiver features the u-blox M9 standard precision GNSS platform, and
Provides exceptional sensitivity and acquisition times for all L1 GNSS systems. u-blox M9 receivers
are available in different variants to serve automotive and industrial tracking applications, such as
navigation, telematics and UAVs.
The u-blox M9 standard precision GNSSplatform, which delivers meter-level accuracy, succeeds the
well-known u-blox M8 product range.
u-blox M9 receivers support concurrent reception of four GNSS.The high number of visible satellites
allows the receiver to select the best signals. This maximums the position accuracy, in particular
under challenging conditions such as deep urban canyons.
u-blox M9 receivers detect jamming and spoofiving events and report them to the host, which allows
The system to react to such events. Advanced filtering algorithms mitigate the impact of RF
interference and jamming, thus enabling the product to operate as intended.
The receiver also provides higher navigation rate and improved security features compared to
previous u-blox GNSS generations.

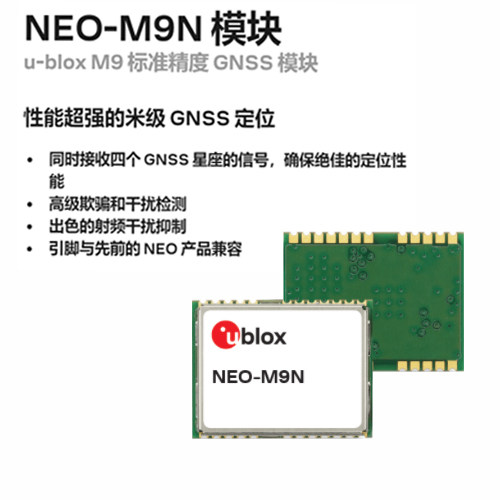

The NEO-M9N module is available in the 12.2 x 16.0 mm NEO form factor LCC package.
