1. Ban: This fire extinguisher cannot be used to extinguish fires from live equipment, otherwise it will threaten personal safety.
2. Product introduction
The MPZ series water-based fire extinguishers produced by our company are produced in accordance with the GB4351-2005 standard, and their cylinder is made of high-quality carbon steel and processed through special processes.This series of fire extinguishers has simple structure, flexible operation and easy to use.
3. Structure and composition of fire extinguisher
The fire extinguisher is mainly composed of a cylinder assembly, a head assembly, a nozzle assembly, etc. The fire extinguishing agent is a water-forming foam premixed liquid, the driving gas is nitrogen, and its working pressure is 1.2MPa at room temperature.
Fourth, main performance characteristics
1. This series of fire extinguishers has the characteristics of high fire extinguishing efficiency and rapid fire extinguishing. The fire extinguishing agent contained in the interior has the advantages of stable performance, non-toxicity, pollution-free and easy storage.
2. The driving gas used is non-toxic and odorless, and it will not harm the human body after being sprayed.
3. The fire extinguisher bottle head valve is equipped with a pressure gauge, which has the effect of displaying its internal pressure, which is convenient for inspection and maintenance.
V. Scope of use
1. Suitable for extinguishing initial fires of flammable solids or liquids, but not fires with live equipment. They are widely used in oil fields, oil depots, ships, factories, shops and other places. They are fire-fighting equipment to prevent fires and protect people's lives and property.
2. The temperature range of use is: +5℃~+55℃.
6. Main technical parameters (20℃±5 ℃)
| model | Fire extinguishing weight kg | Effective Jet Time S | Effective spray distance m | Jet lag time S | Jet remaining surplus rate% | Foam | 25% liquid serum time s | Extinguishing level |
A | B |
MPZ/3 | 03-0.15 | ≥15 | ≥3.0 | ≤5 | ≤15 | ≥5 | 60 | 1 | 55 |
MPZ/6 | 06-0.30 | ≥30 | ≥3.5 | 1 | 55 |

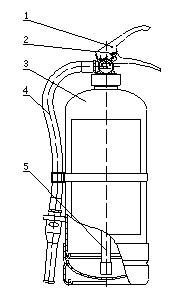

Structural diagram
 | 1. Siphon
2. Spray cylinder assembly
3. Cylinder assembly
4. Safety device
5. Head assembly |
8. How to use
Lift the fire extinguisher to the fire scene, pull out the safety pin, hold the jet hose tightly, press down the handle, aim at the root of the flame, Class A strafing the fire, Class B cover extinguish the fire; release the handle and stop the jet, thereby achieving clearance ejection.
9. Maintenance
1. The storage ambient temperature is: +5℃~+45℃; it shall not be exposed to the scorching sun, approaching the fire source, or subject to violent vibration.
2. The fire extinguisher should be reliable, and the place of storage is ventilated and dry.
3. Regularly check whether the insurance sales and lead seals are intact, whether the pressure value meets the requirements, and whether the components are loose, deformed, rusted or damaged.
4. After the extinguisher period expires, the bottle head valve, nozzle, etc. should be checked for damage every two years or before refilling, and check whether the cylinder is rusted; and conduct a 2.1MPa water pressure test, and those who fail the qualification should be scrapped.
5. The repair or refill of fire extinguishers should be repaired by a qualified professional fire maintenance department, and users shall not disassemble or repair without authorization; please refer to our company's maintenance manual for details.
