德芯 NDS3908i 8-in-1 multi-channel IP decoder supports MPEG-2/H.264/AVS+decoding

Product information

Code 626610722652
Status: New
In stock: 302 PCs
Approx weight: 0 kg
Price per 1 piece :
1 076.71 $5.80 $
Local delivery:
0.00 $
Quantity: + -
Minimal lot:
Total:
5.80 $
Add to cart

Add to favorites

Vendor info

Name: 怡安科技有限公司
Shop name: 电视器材
Add vendor to favourites
Brand: 德芯;
Original description

Factory direct sales, large quantities can be negotiated.Provide hotels, hotels,Wired for entertainment centers, rental houses, collective dormitories, etc.TV overall solutionEssence

Shenzhen can be delivered throughout the country and provided paid installation/debugging services.Free technical guidance nationwide.

Contact: Mr. Zhao

All product factories in the store are directly sold to achieve absolute new products and eliminate renovation materials, all of which are original genuine products.All products provide technical support. We are not only selling products, but also part of our products. While ensuring quality and services, we have reasonable prices.

electricity talk:15919407001

Overview

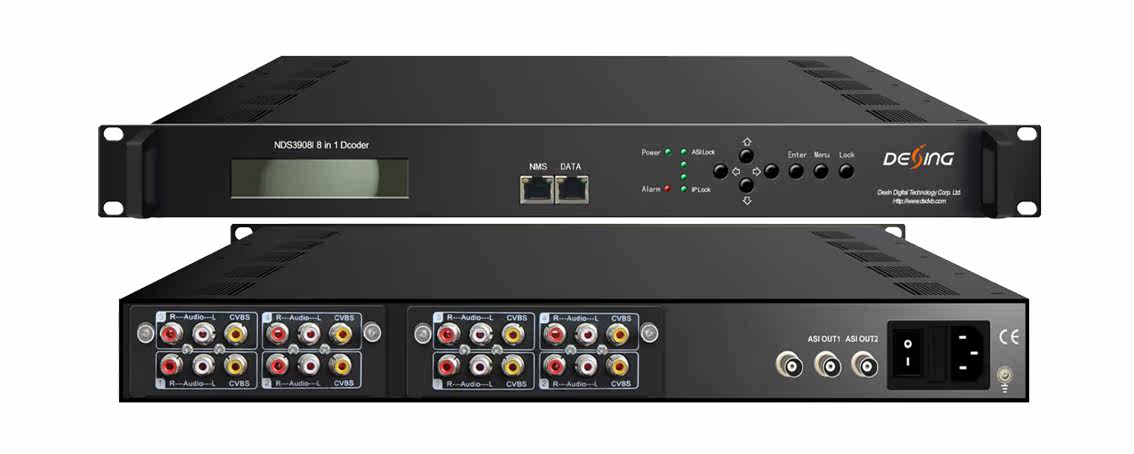

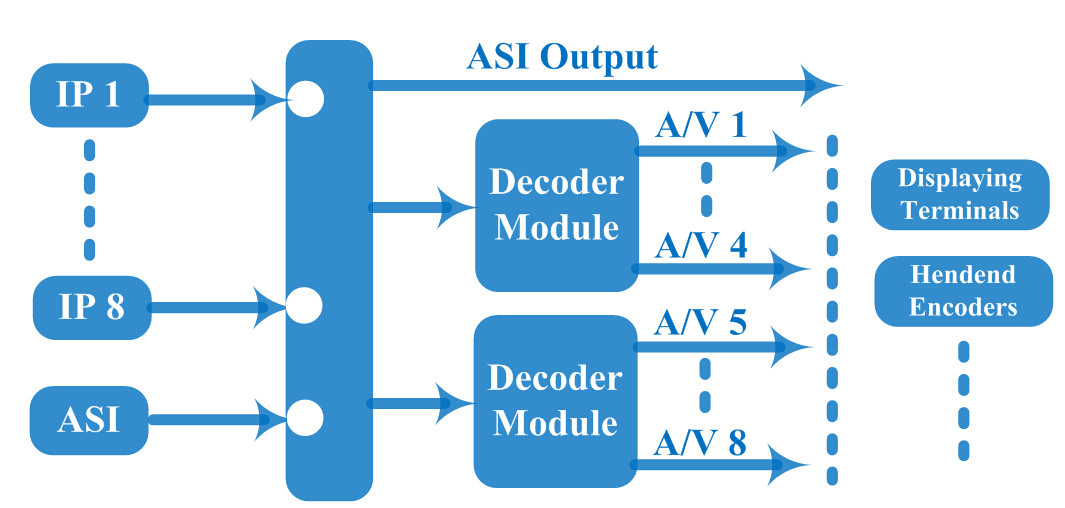

   NDS3908I 8-in-1 multi-channel IP decoder is a high-quality decoder with independent intellectual property rights developed by our company.The device adopts high-standard transport stream processing and IP processing technology, which can support MPEG-2/H.264/AVS+ decoding.The main function of the device is to convert IP into TS stream and perform MPEG-2/H.264/AVS+ decode output.Supports 8 IP streams (TS streams) and 1 ASI stream decoding and 8 AV outputs.

Main characteristic

●Support MPEG-2/H.264/AVS+ decoding
●Support 8-channel IP stream (TS stream) decoding

●Support 1-channel ASI stream decoding
●Support 8 different IP transport streams, support unicast and multicast modes
●Support 8 CVBS outputs and 8 unbalanced stereo outputs
●Support real-time bit rate monitoring
●High reliability design, stable performance
● LCD LCD display and key operation
●Support network management (NMS)

Technical indicator





 signal input 8 IP transmission stream input
 1 TS stream input
 interface IP Input (RJ45)/ASI Streaming Input (BNC)
 Enter the IP code stream 100Mbps
 IP Transmission Protocol UDP
 decoding Video decoding MPEG-2/H.264/AVS+
 Video output interface 8×CVBS (RCA)
 Video output resolution 576i@25fps, 480i@29.97fps
 Audio decoding MPEG-1 Layer 2, HE-AAC, LC-AAC, AC3, DRA
 Audio output interface 8-channel unbalanced stereo output (RCA)
 Conventional characteristics operate LED LCD display/key operation
 language Chinese
 Size (long x width x height) 44 mm×482 mm×410mm
 environment 0~45℃ (work); -20~80℃ (storage)
 power supply AC 100 ~ 240V, 50/60Hz
 power <25W
