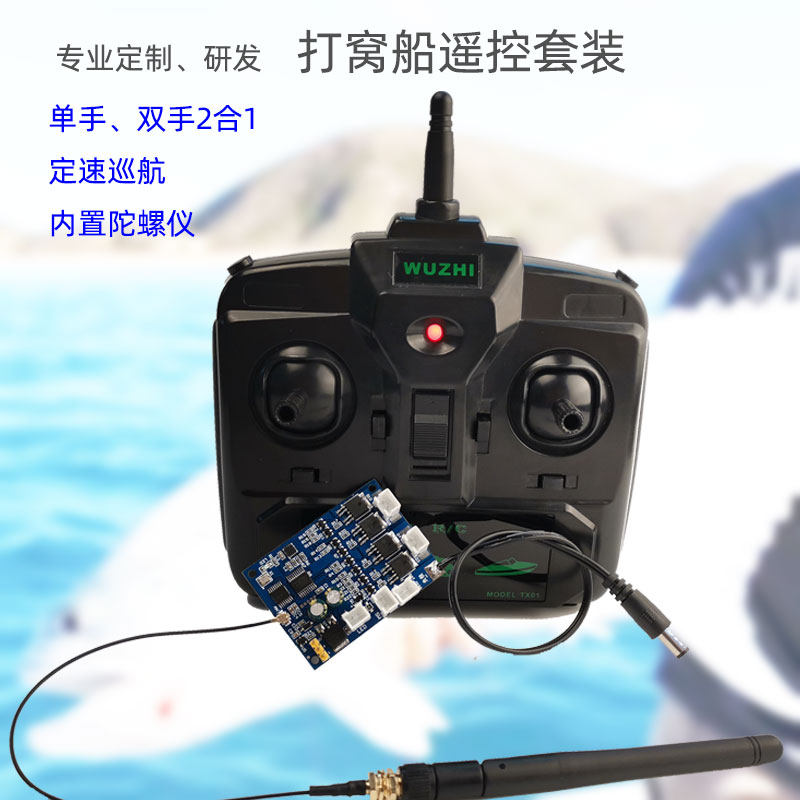

Our store also has high-power 10A nest boat remote control accessories, with gyroscope driving in a straight line, can connect to servo, cruise control and other functions, and can choose from one-hand remote control and two-hand remote control.
Nesting ship remote control accessories (high power 5A, remote control long distance 500 meters)
Apply to nesting boats, remote control tank cars, differential vehicles, differential boats
The product contains only the remote control+receiving board (motherboard). Customers need to prepare the battery, motor, hull, and the shop does not sell batteries, motors, hulls;
The battery recommends 7.4V charging batteries, and the motor is recommended for 390 motors. If your motor is loaded with a load current under 7.4V voltage exceeding 5A, the motor that needs to be changed, or the battery voltage is lower, such as 3.7V, 4.8V, 6V battery.
Read before buying!
1. Suitable for the nesting boat or toys that are placed on the left and right sides (cannot be suitable for a steering gear or toys that turning the motor turn!)
2. The receiving board has passed the inspection of the factory. Because the customer needs to adapt to the battery and motor by themselves, the personal DIY unstable operationality, the receiving board does not accept returns and exchanges and after -sales service!Do not accept returns and exchanges and after -sales service!Do not accept returns and exchanges and after -sales service!Those who mind are cautious, thank you!
3. The receiving board can only match the remote control of our store, and the remote control of other manufacturers cannot be compatible.The remote control can only be paired with the products of our shop, and cannot be compatible with other manufacturers' model toys.
4. The wireless transmitting signal is strong. When used, the distance between the remote control and the control board should be greater than 20cm. Otherwise, the distance is too close to the saturation of the wireless signal, and the remote control and the control board cannot be connected.
1. Product highlights:
1.1. Removal automatically, do not string code, one -on -one remote control.
1.2. Remote control distance, 500 meters.
1.3. The power is large, and the motor driver can output a maximum output of 5A current.
1.4.The handle controls the left and right motors separately, and there is a motor to fine -tune the button.
1.5.Essence
2. Product parameters:
2.1. Receive board adaptation battery -7.4V lithium battery pack, 7.2V lithium battery pack.Do not use dry batteries, poor output capacity of dry batteries, which will cause the motor to be unable to start; maximum resistance 14V.
2.2. Receiver board adapter motor - recommended 390 motor.The maximum output current of each receiving board motor driver is about 5A, and can drive small and medium-sized motors with a load current of less than 4A. The motor blockage current is preferably less than 5A.It is not possible to drive high -power motors such as 380 and 550, and it is easy to destroy the control board due to the large load current.Because there are many types of motor and manufacturers, even if similar motors, there are differences in driving currents, and factors such as power supply voltage, battery protection board, motor load, motor blocking current will affect the final current. Therefore, it is best to measure when used in use.Use the motor parameters to be used again. Do not burn the control board because the motor does not match.
2.3. Receive board A interface: customized, default LED light, and a flow resistance of 270 ohm.
2.4. Receive board B interface: Customized, default to connect to the nest 130 motor (TT motor), and the current limit resistance is 10 ohm.
2.5. Remote control — quarter -4 battery.
2.6. Remote control channels - 4, left motor rotates forward and backward, right motor rotates forward and backward, LED light control channel, and nest motor control channel.(The speed is not adjustable)
2.7. Remote control distance-500 meters.
2.8. Remote control power consumption -25mA.
2.9. Weight -receiving board 14g, remote control 172g, packaging box 64g
2.10. Packaging size -200mm*160mm*77mm
3. How to use
3.1. The remote control is loaded into the battery 4 of 4, the switch is turned on, and the indicator lights flickered
3.2. Receive board inserting the battery, turn on the switch to the power, automatically dial the code with the remote control.Open the remote control or open the receiving board first, and you can automatically code.(The distance between the receiving board and the remote control is greater than 20cm)
3.3. The left handle is controlled by the left motor forward and backward direction. The right handle is controlled by the right motor forward and backward direction. The two keys on one side of the direction handle are the motor speed and minus and fine -tuning buttons.
4. Frequent questions and answers
4.1. Insert the battery in the remote control, the remote control light is not on
Answer: The battery has positive and negative poles; or the battery has no electricity.
4.2. Insert the battery of the receiving board, the indicator light does not light up
Answer: The switch is not turned on; the battery is not electric;
4.3. The receiving board and the remote control cannot be coded, and the indicator light has been shining
Answer: The distance between the remote control and the receiving board is too close, causing the wireless signal saturation.
4.4. Promote any handle, the receiving board indicator is destroyed, the motor cannot rotate or can only drive a motor
Answer: There is no electricity to receive board batteries, or the battery cannot output a large current cannot drive the motor. Please do not use dry batteries or expired batteries.
5.Exclusive mold, receiving commercial customization, support for model training
