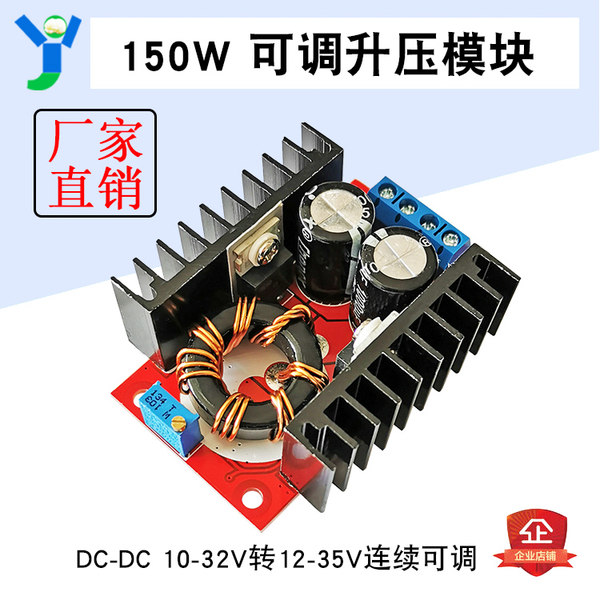

Power supply, module, laptop, 150W, 32v, 35v

product description:
In addition to the capacity of the carrier, it is also affected by a variety of factors such as the front -stage power supply and the rear load; the following data is the results measured by professional equipment, and other factors are not considered.The power module is a type of electronic component. Please buy it with no electronic professional knowledge.Weight: 65 grams

Module parameters:
Module nature: non -isolation boost module

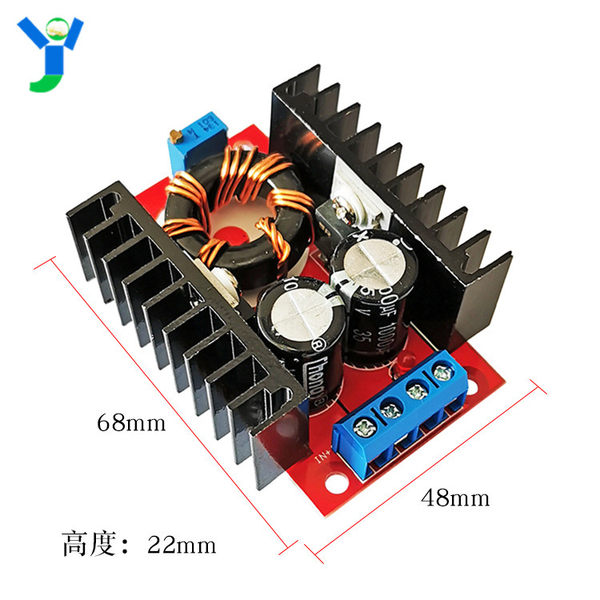

Module size: 65mm*height 23mm*(56.5mm width includes heat sinks)

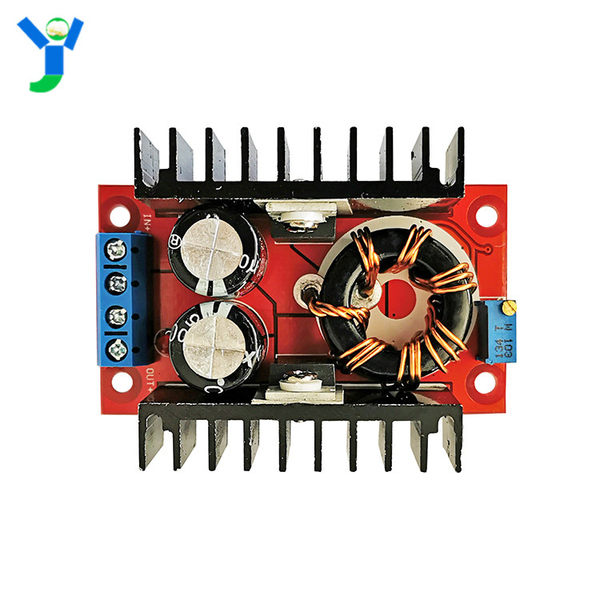

Input method: in+input positive level, in-input negative electrode
Output method: OUT+Output Positive Class, OUT-Output negative electrode
Wiring method: free welding, terminal
Input voltage: 12-32V
Output voltage: (1) Continuous adjustment (12-35V)
       (2) Fixed output (any choice between 12-35V)
Output current: 6A (MAX)
Enter current: 10 (MAX) (please strengthen heat dissipation by 10A)
Output power: natural cooling 100W (MAX), adding fans 150W (MAX)
Easily drive 65W 90W laptop, including dual -core
Use a 12V battery with an ordinary 19V 3.42A laptop module temperature of about 45 degrees
Conversion efficiency: 94%(measure when input 16V output 19V 2.5A) (for reference only)
Work temperature: Industrial grade (-40 ° C to +85 ° C) (the ambient temperature exceeds 40 degrees, please reduce power use, or add fan)
Full load temperature: 45 ℃
Air load current: Typical 25mA
Short -circuit protection: None (please enter and add an overcurrent protector)
Enter anti -connection protection: None, enter the two poles in the input series
Weight: 70g

Scope
1) DIY an output can adjust the vehicle power supply. You only need to input your 12V power supply. You can (14-35V) freely adjust the output voltage, but the output voltage cannot be lower than the input voltage.
2) Universal car notebook power supply.The input is connected to your 12V power supply, and the output is adjusted into the voltage of your notebook to work.
3) The voltage charger, you can use the 12V power supply to charge a battery above 12V, such as 24V battery.
4) Power on your electronic device. As long as you adjust the voltage to the voltage you need and the current does not exceed the rated current, it can work normally.
5) Power supply before the system. When you enter a project as 10-18V when you do a certain project, and your system board requires about 24V power supply and its power is very high, and the power of the ordinary DC-DC module is too small to be too small., You can work without debugging directly.
