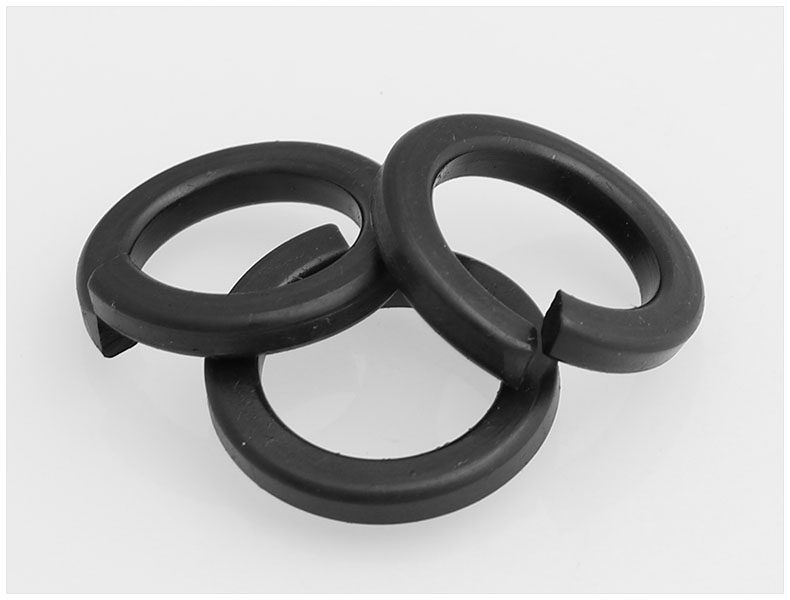

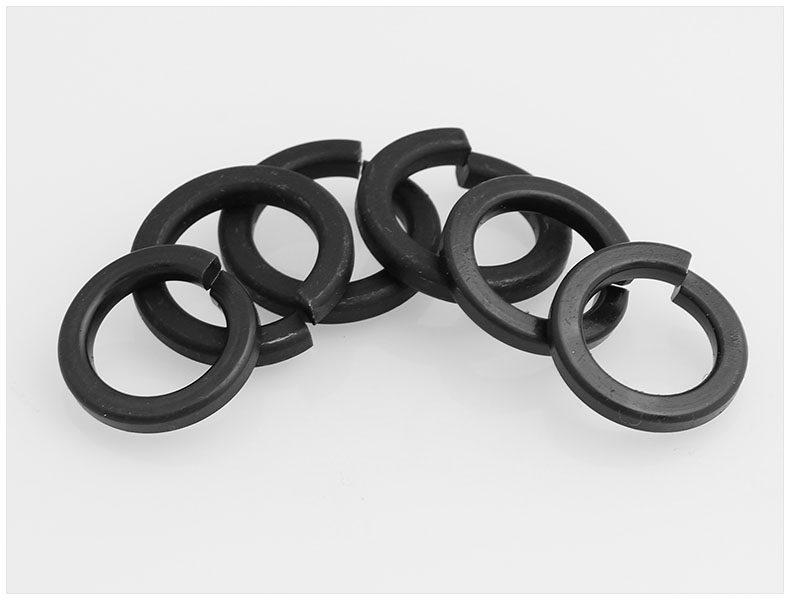

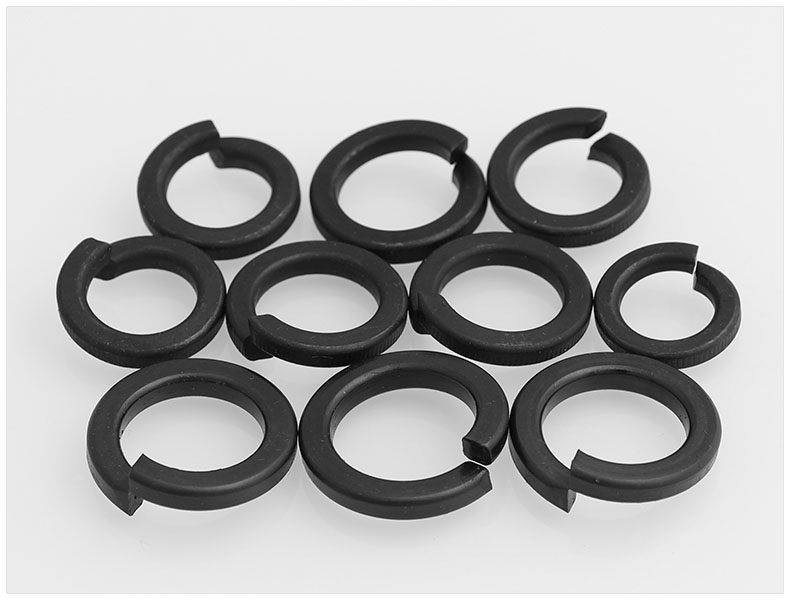

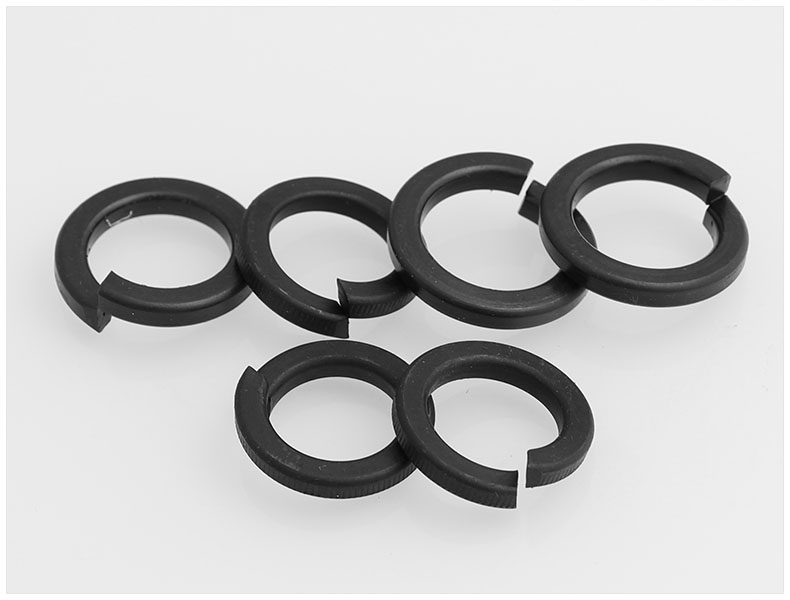

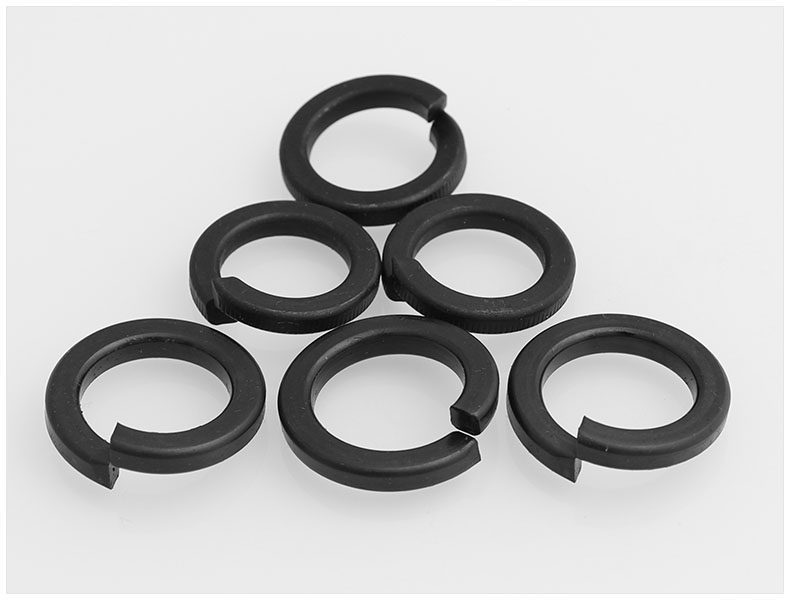

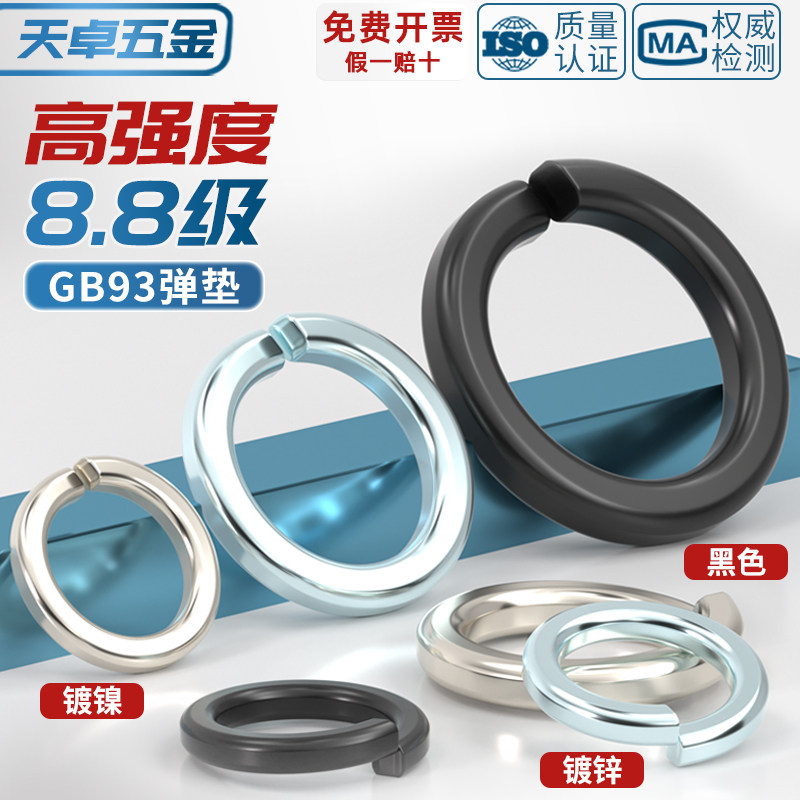

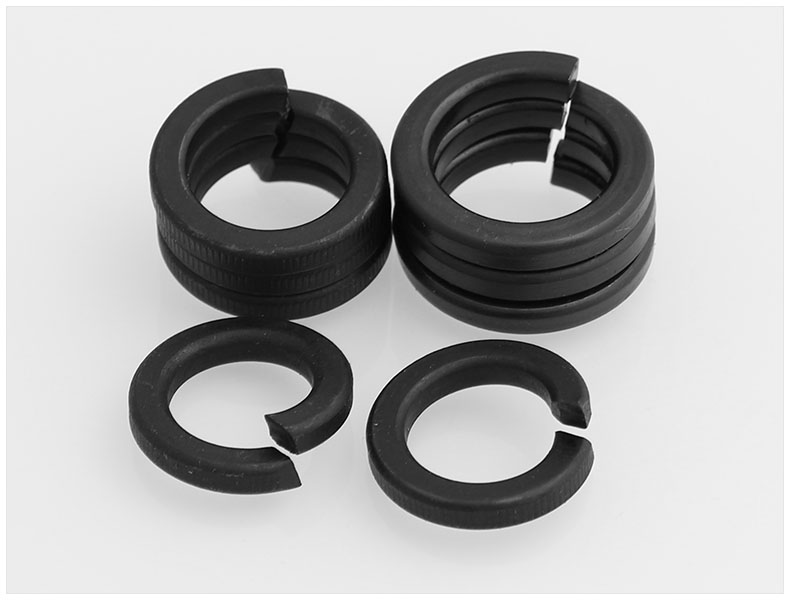

National standard 8.8 level 65mn manganese hard black bomb pad galvanized nickel plating spring cushion ring M3M4M5M6M8M10-M48

Product information

Code 601243328817

Select a configuration:

Sort by color:
Status:	New
In stock:	99999 PCs
Approx weight:	0 kg
Sales volume for 30 days:	100
Sales volume:	50
Price per 1 piece :
Local delivery:
Quantity:	+ -
Minimal lot:
Selected configuration:	Sort by color: ♥♥The following is [8.8-grade black zinc plated] series ♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥
Total:
Loaded translation of the description of the goods Add to cart Remove from cart PCs Loading product reviews This product is not available Added to the cart! Remove from cart The goods are not added, please try again later Product removed from your cart! Add to cart The goods are not removed, try again! Remove from cart Add to cart Remove item from favorites Add to favorites

Sort by color:	♥♥The following is [8.8-grade black zinc plated] series ♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥; M2 (200); M2.5 (200); M3 (200); M4 (200); M5 (200); M6 (100); M8 (100); M10 (50); M12 (50); M14 (20); M16 (20); M18 (20); M20 (10); M22 (10); M24 (5); M27 (5); M30 (5); M33 (2); M36 (2); M39 (1); M42 (1); M45 (1); M48 (1); ♥♥The following is [8.8-level blue zinc plated] series ♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥; M3 [100 pieces]; M4 【100】; M5 【100 pieces】; M6 [100 pieces]; M8 [10]; M10 [10]; M12 [10]; M14 [10]; M16 [10]; M18 [10]; M20 [10]; M22 [10]; M24 [10]; M27【5】; M30 [5]; ♥ The following is the [8.8-grade black zinc plated] series♥ ; The following is the [8.8-grade blue zinc plated] series&hearts
Brand:	Tianzhuo Hardware;
Model:	8-level ammunition pad m2-m30;
Material:	Level 8 alloy steel;
Place of origin:	Bhutan;
Category:	Pad;

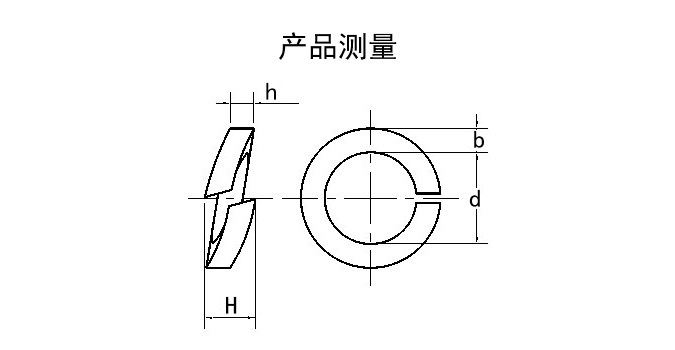

Specification	d		h≈b			H		Outer diameter	Every 1,000 pieces
Specification	max	min	Nominal	max	min	max	min	refer to	Quality is about kg
M2	2.35	2.1	0.5	0.58	0.42	1.25	1	3.3	0.02
M2.5	2.85	2.6	0.65	0.73	0.57	1.63	1.3	4.2	0.03
M3	3.4	3.1	0.8	0.9	0.7	2	1.6	5.3	0.06
M4	4.4	4.1	1.1	1.2	1	2.6	1.4	6.3	3.25
M5	5.4	5.1	1.3	1.4	1.2	3.25	2.6	7.8	0.26
M6	6.68	6.1	1.6	1.7	1.5	4	3.2	9.6	0.47
M8	8.68	8.1	2	2.2	2	5.25	4.2	12.5	1.07
M10	10.9	10.2	2.6	2.75	2.45	6.5	5.2	15.8	2.05
M12	12.9	12.2	3.1	3.25	2.95	7.75	6.2	18.8	3.49
M14	14.9	14.2	3.6	3.8	3.4	9	7.2	24.7	5.47
M16	16.9	16.2	4	4.3	3.9	10.25	8.2	20.7	8.09
M18	19.04	18.2	4.4	4.7	4.3	11.25	9	27.8	10.91
M20	21.04	20.2	5	5.2	4.8	12.5	10	30 .4	14.95
M22	23.04	22.5	5.3	5.7	5.3	13.75	11	34.2	20.11
M24	25.5	24.5	6	6.2	5.8	15	12	37.5	26.06
M27	28.5	27.5	7.1	7.1	6.5	17	13.6		37.64
M30	31.5	30.5	7.3	7.8	7.2	18.75	15		50.73
The above data is measured by a single batch, and there are certain errors. Please refer to the real object!Those who mind are cautious.
