| Basic parameters | brand | Pourxuan (Pourxuan) |
category | HDMI KVM switch |

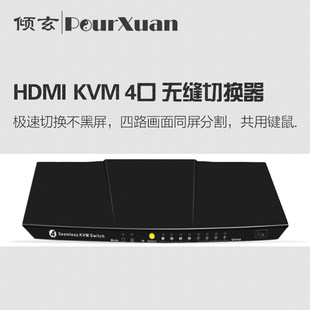

name | HDMI KVM 4-port split screen synchronizer |
size | 262mm*108mm*33mm |
Power Adapter | Input AC (50HZ, 60HZ) 100V-240V; Output: DC5V |
Operating temperature | -15 to +55 ℃ |
Working humidity | 5% to 90% RH (None Concretion) |
| Application instructions | Applicable equipment | Computers with HDMI interface and support USB keyboard and mouse, monitoring hosts and other terminal hosts |
product description | This product is a 4-in-1-out multi-screen display seamless HDMI KVM switch, which facilitates centralized control of cross-platform computer equipment.You can easily switch computers that manage 4 HDMI interfaces on one HDMI monitor.This device supports two output modes: KVM mode and synchronizer mode.In synchronizer mode, you can use a set of keyboard and mouse to control 4 hosts at the same time; in KVM mode, you can use a set of keyboard and mouse to control one host at the same time, and you can cyclically switch between the two modes through keyboard hotkeys.It can display up to 4 signal sources on a display simultaneously, and has multiple screen display modes, while enabling seamless switching between multiple signal sources of the same resolution.This product can control switching through a variety of methods, such as input selection buttons through front panel, infrared remote control, mouse travel, and keyboard hotkeys. |
Wire requirements | HDMI cable gauge is at least 26AWG |
| Features | (1) | Control 4 computers through a set of keyboard, mouse and monitor terminals |
(2) | Supports up to 1080P/60Hz resolution |
(3) | Supports seamless switching between HDMI signal sources of the same resolution, without black screen flashing |
(4) | Supports two working modes: KVM mode and synchronizer mode |
(5) | Supports two screen display modes: single screen mode and multi-screen mode |
(6) | supportUse wire gauge at least 26AWGHDMI cable, input end: 1080P ≤15 meters, output end: 1080P ≤15 meters |
(7) | Supports hot swap, all devices connected to KVM can be increased or decreased at any time without shutting down the host |
(8) | Supports additional USB2.0 interface, can connect to USB2.0 devices such as USB disk, QR code scan gun, touch screen, wireless network card, etc., and can be switched with the input port. |
(9) | Supports LPCM7.1, Dolby TrueHD, and DTS-HD Master Audio and other audio formats. |
(10) | Supports seamless switching between keyboard and mouse, and no delay control when switching the host |
(11) | Supports control KVM switching input channels through four methods: infrared remote control, panel keys, keyboard hotkeys and mouse travel. |
(12) | Supports automatic scanning function to monitor all hosts |
(13) | Supports input port virtual display devices to avoid changes in host display settings during switching channels |
| other | Packaging | Host*1, power adapter*1, instruction manual*1, remote control*1, (Note: This product is issued a neutral model by default. If you need to bring a brand model, please note it or contact customer service when placing an order). |
After -sales service | Products for one year |
Precautions | 1. Stay away from humidity, high temperature, dust, corrosive and oxidized gas environment to avoid damage 2. All components should avoid strong vibration. Do not collide, knock, or fall to avoid damage 3. Do not contact the electrical source adapter with wet hands 4. When pulling the adapter plug on the power socket, hold the plug, do not pull the power line 5. Please turn off the power when the machine is not used (please unplug the power adapter plug when not in the long run) 6. Do not turn on the cover, do not contact any device in the machine. 7. Must use the power adapter provided by the manufacturer or by the manufacturer |
support hotline | 13980531159 |
Official website | http://www.pourxuan.com (Please copy the URL paste in the browser and open it) |
