| Brand: | Dan; |
| Place of origin: | Chinese mainland; |
| Goods number: | TDA2030A; Portal module; |
Product parameters
1. Blue light LED power indicator, real-time monitoring of power supply status,
2. There are two input interfaces at the audio signal input terminal, (1) connected to the seating port, (2) 3P socket input port, and one of them can be selected.

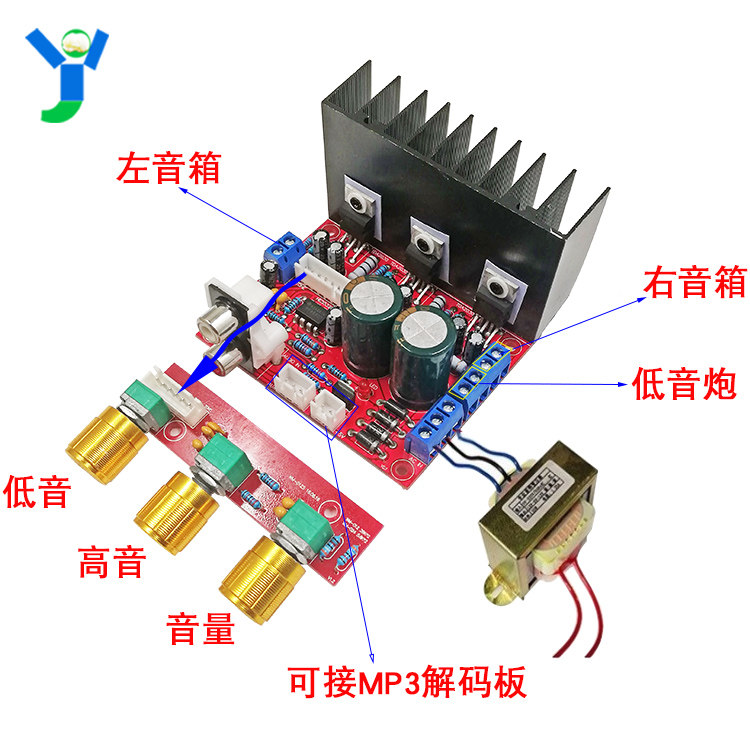

3. You can install a 5V MP3 decoding board and enter the sound to the amplifier (see the picture below for details)
4. Input power supply: AC dual 12V2A transformers, it is recommended to use dual 12V30W or higher transformers.
5. Output power:
(1), left and right channels: rated power: 18W&Times; 2, it is recommended to use 3-5 inches, 4-8Ω, 10-30W full-frequency speaker;
(2), bass output: rated power: 30W&Times; 1, it is recommended to use 4-6 inches, 4-8Ω, 20-50W ultra-heavy bass speaker;

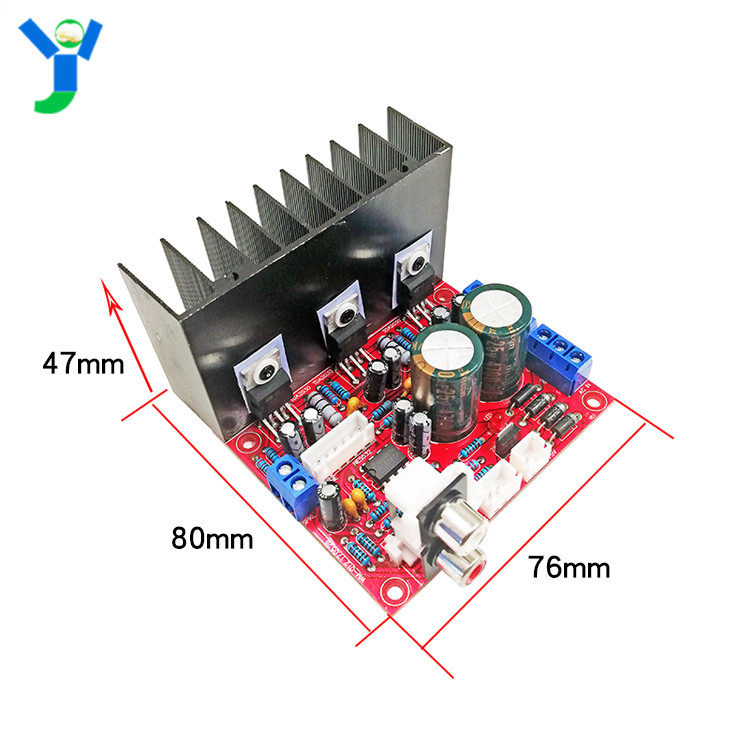

6. PCBS board material: PR-4 glass fiber board PCB board size: motherboard 80×88×65MM
sound board 80x20mm
7. Potentiometer center distance: 0-28-28MM net weight: 130 grams
8. Output impedance: 4-8Ω
9. The main board and the tone board are equipped with a 30MM 6P cable connection.
Special note: TDA2030 and LM1875 can be completely interchanged. If all of them are replaced with LM1875, please change to a larger radiator.The power amplifier chip has five pins: positive power supply, negative power supply, positive input, reverse input and output.The heat sink on the chip is connected to the negative pole. When the power is on, the heat sink of the chip must not be short-circuited with the ground wire, otherwise it will burn out immediately.
The wiring diagram is as follows:
