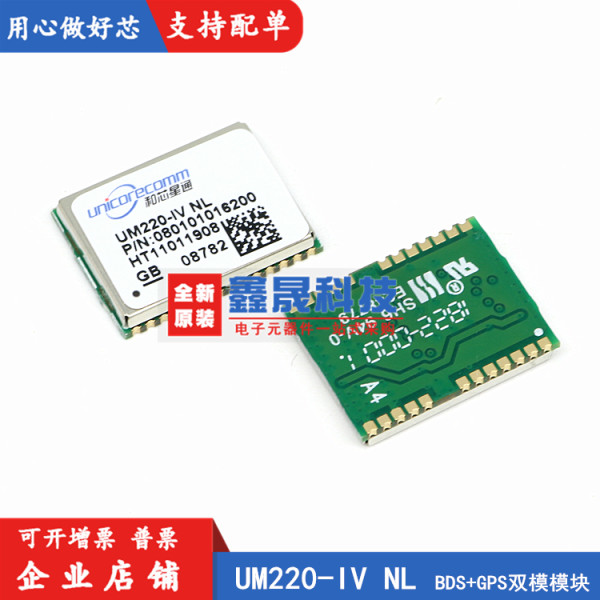

UM220-IV NL BDS+GPS dual-mode positioning module UM220-III NL upgraded version of UM220 Beidou

Product information

Code 590088324766
Status: New
In stock: 99999 PCs
Approx weight: 0 kg
Sales volume for 30 days: 21
Price per 1 piece :
5.82 $8.60 $
Local delivery:
0.00 $
Quantity: + -
Minimal lot:
Total:
8.60 $
Add to cart

Add to favorites

Vendor info

Name: 鑫晟科技电子有限公司
Shop name: 深圳市鑫晟科技电子
Shipping estimate: 4.9
Goods valuation: 4.9
Service evaluation: 4.9
Add vendor to favourites
Rating:

Other items

All items of this seller

Model: UM220-IV; NL;
Brand: Yingbaichuan;
Place of origin: Chinese mainland;
Size: 160x122x24mm;
Module type: GPS+Beidou;
Hot start capture time: 1 second;
Positioning accuracy: 1m;
Original description

Product introduction

UM220-IV N It was launched by Hexinxingtong for the on-board front-loading marketBDS/GPS Dual-mode positioning module.UM220-IV N It's the fourth generationGNSS Navigation and positioning module product, adopts low-power consumption and anti-interference with complete independent intellectual property rights of HexinxingtongGNSS SoCchip- UC6226, high integration, low power consumption, anti-interference design, suitable for high requirements for navigation and positioning performance, product reliability and qualityGNSS Scale application.

Product advantages
• automotive grade product, chip complies with AEC-Q100, production complies with TS16949
• Excellent navigation and positioning performance, supporting single-system independent positioning and multi-system joint positioning
• anti-interference design, the module can work stably in complex electromagnetic environments
• low power design
• supports A-GNSS and D-GNSS
• Compatible with mainstream GPS modules, saving replacement costs
• SMD surface mount packaging method, convenient for customers to produce

Technical indicator

Performance

aisleBased on 64-channel UFirebirdTM  chippositioning accuracy12.0m CEP (dual system level)
frequencyBDS B1 1.0m CEP (SBAS level)*
GPS L1Speed accuracy1(RMS)GNSS/GPS: 0.1m/s
Positioning modeSingle system independent positioning BDS: 0.2m/s
Multi -system joint positioning1PPSsupport
First positioning time (TTFF)Cold start<29sSensitivity&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; BDS&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; GPS
&nbsp;AGNSS<5s&nbsp;Cold start&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; -146dBm&nbsp;&nbsp;&nbsp; -148dBm
&nbsp;Hot Start<1s&nbsp;Hot Start&nbsp;&nbsp;&nbsp;&nbsp; -154dBm&nbsp;&nbsp; -153dBm
&nbsp;Re -capture<1s&nbsp;track&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;-162dBm&nbsp;&nbsp; -162dBm
Data update10Hz&nbsp;Arrest&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; -160dBm&nbsp;&nbsp; -160dBm

Physical characteristics

size16.0x12.2x2.4mm
Encapsulate24-pin, SMD surface mount
Operating temperature-40&deg;C~+85&deg;C
storage temperature-45&deg;C~+90&deg;C

Electrical indicator

Voltage2.7V ~ 3.6V DC
LNA feed2.7V ~ 3.3V,<100mA
Power consumption 216mW@3.0V

Functional interface

2 x UART/1 x I2C / 1 x SPI&nbsp;
1 x Event input
1 x 1PPS output
Data interfaceNMEA 0183 (compatible with Beidou)
&nbsp;Unicore

Functional characteristics

Active antenna, passive antenna, A - GNSS *&nbsp;D - GNSS *
Note: The * part is optional&nbsp;&nbsp;&nbsp;1Typical values,<30m/s Open the sky&nbsp;&nbsp;&nbsp;2open sky, continuous tracking
