Direct sales from manufacturers, large quantity is negotiable.Suitable for self-built cable TV rooms in hotels, hotels, entertainment centers, rental houses, collective dormitories, etc.
All over Shenzhen, you can deliver goods to your home and provide paid installation/debugging services.Free technical guidance is provided worldwide.
Contact: Mr. Zhao
electricity words:15919407001
This code modulation all-in-one machine is mainly sold abroad. Welcome to do AliExpress and EBAY friends to contact us for interviews.
Moderate price and first-class quality.
One machine supports DVB-T/DVB-C/ATSC/ISDB-T/DTMB-T
Product Overview

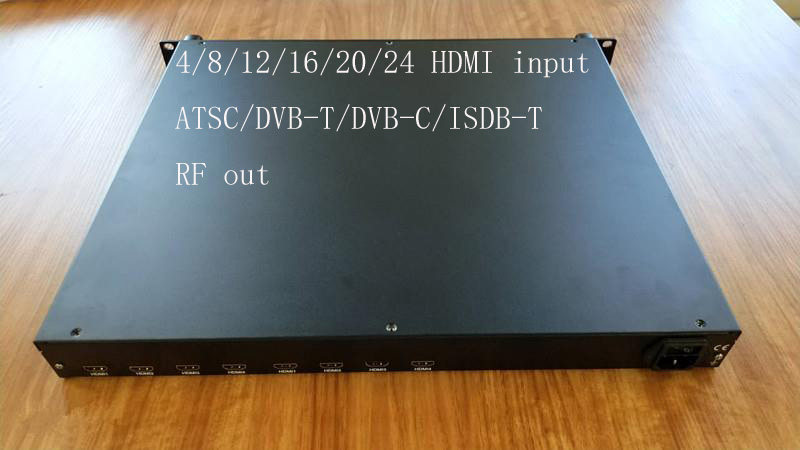

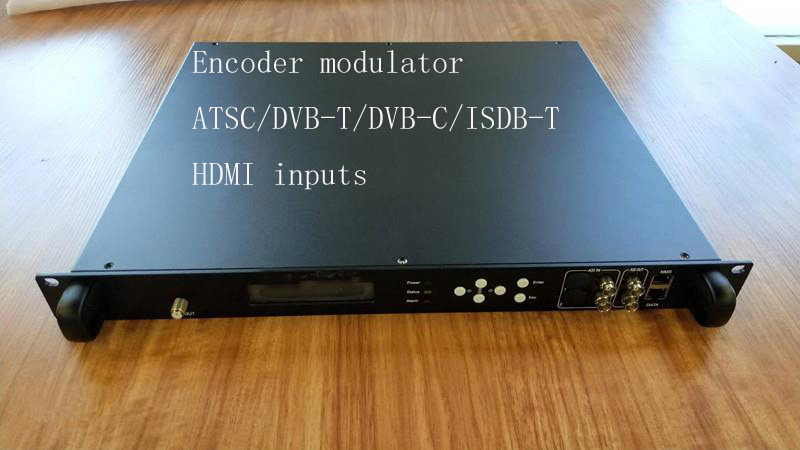

VEK-4782I- is a professional high integration device which includes encoding, multiplexing and module. It supports 4/8/12/16/20/24 HDMI input, 2 ASI input. It also supports DVB-C/DVB-T/ISDB-T/ATSC RF out with 4 carries, This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…
Key Features
* 4/8/12/16/20/24 HDMI input,
* MPEG-4 AVC/H.264 Video encoding
* MPEG1 Layer II Audio encoding
* Support 24 SPTS& 4 MPTS outputs,
* Support UDP, RTP

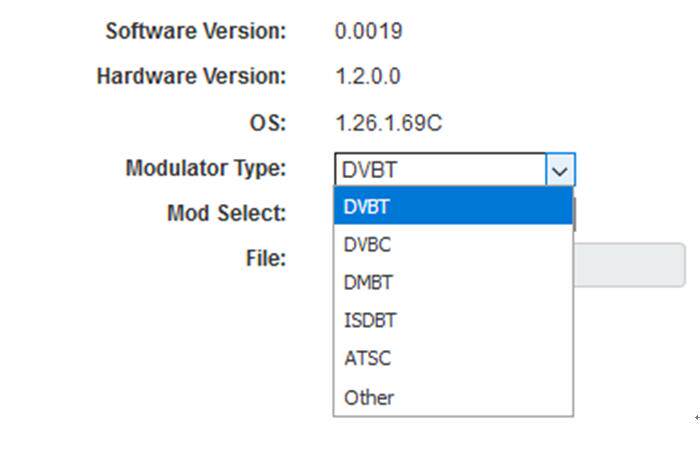

* Control via web management, and easy updates via web
* support LED display& key function
Principle Chart
DVB-C RF out DVB-C/ATSC RF out ISDB-T RF out
Technical Specification
Input | 4/8/12/16/20/24 HDMI inputs for option 2 ASI input | |||||
Video | Resolution | Input | 1920×1080P, 1920×1080i, 1920×1080P, 1920×1080i, 1280×720P, 1280×720P, 720×576i,720×480i, | |||
Output | 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_25P, | |||||
Encoding | MPEG-4 AVC/H.264 | |||||
Bit-rate | 1Mbps~13Mbps each channel | |||||
Rate Control | CBR/VBR | |||||
| | |||||
Audio | Encoding | MPEG-1 Layer 2 | ||||
Sampling rate | 48KHz | |||||
Resolution | 24-bit | |||||
Audio Gain | 0-255 Adjustable | |||||
Bit-rate | 64kbps, 128Kbps, 192kbps, 224kbps, 256kbps, 320kbps, 384kbps | |||||
| | | ||||
System function | Network management (WEB) | |||||
Chinese, English and other languages | ||||||
Ethernet software upgrade | ||||||
Miscellaneous | Dimension (W×L×H) | 482mm×440mm×44mm | ||||
Environment | 0~45℃(work); -20~80℃(Storage) | |||||
Power requirements | AC 110V± 10%, 50/60Hz, AC 220± 10%, 50/60Hz | |||||
Ordering Information
HDMI input: 4, 8, 12, 16, 20, 24
modulator: DVB-C, DVB-T, ATSC, ISDB-T, DTMB-T
