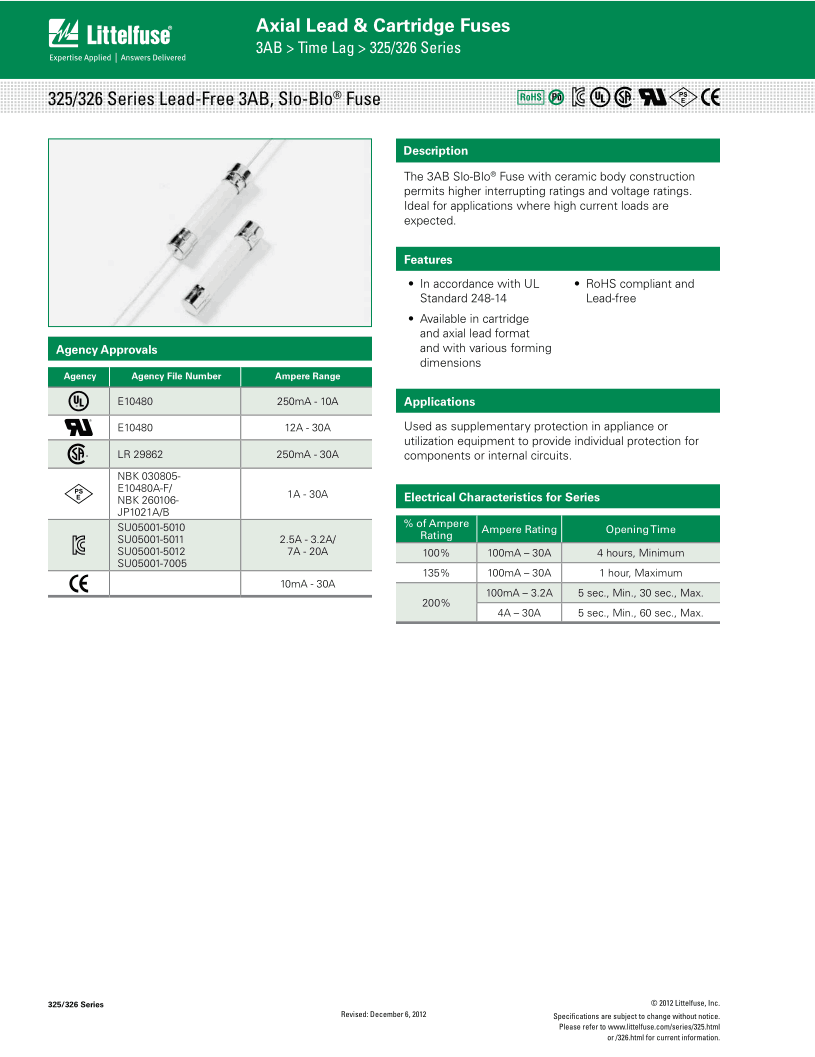

American Lite slow melting fuse tube
Brand; Littelfuse
Model; 0326015.mxp

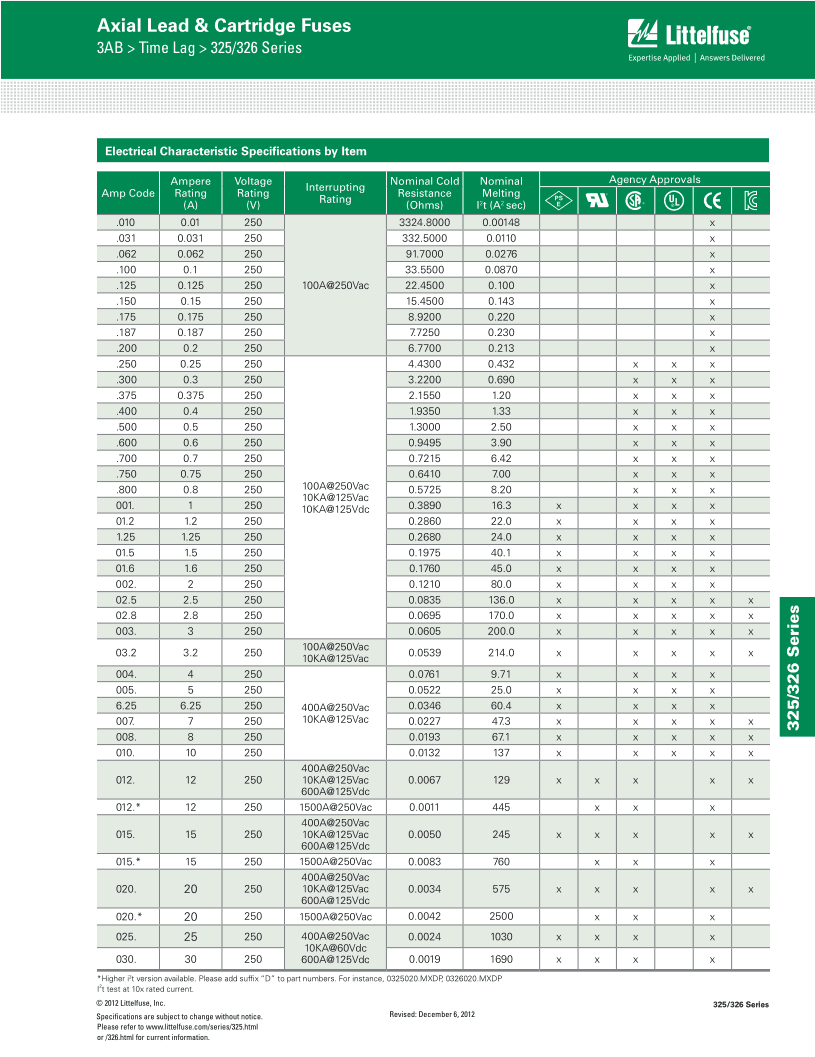

Parameters; 15A~250v
Size; 6.35x31.5 (mm)
Fuse; slow fuse
Packaging; 100 pieces/bag 1000 pieces/box
The difference between fast break and slow break fuse
Quick fuse:Quick break fuse general model starts with F letters, for exampleF1AL250VIt is mostly used for circuit boards. As long as the current exceeds its rated value, it is fused instantly, and it can only be used for short circuit protection.
Slow fuse:Slow breaking fuse is also called delay fuse, which starts with T letters in front of the general model, for exampleT1AL250V,The current of some circuits in the switch is greater than several times the normal working current. Although this current is very high, it appears very short. We call it impact current.The fast -breaking fuse cannot withstand this current. The melt of the delay fuse is specially processed by it. It has the effect of absorbing energy. Adjusting the energy absorption can make it resist the impact current and provide overloading to the overload.Protect.
