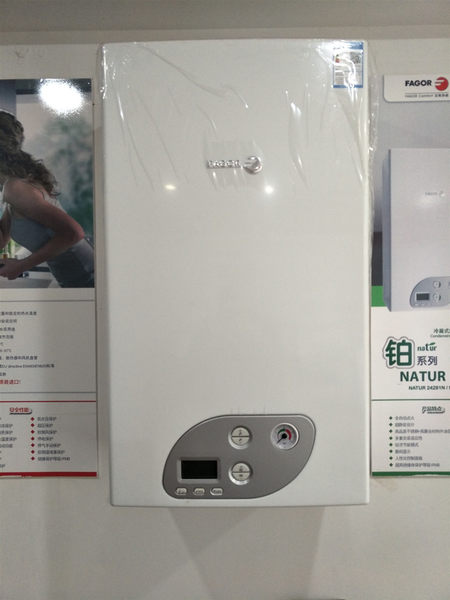

Fage gas wall -mounted boiler Italian imported Yi series hot water heating dual -purpose water heater heating furnace

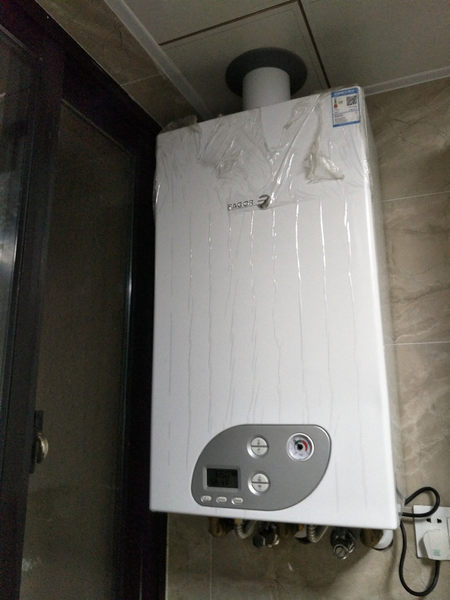

1. Small size and beautiful appearance.long*Width*The high is:700*400*250mm, Installed in the kitchen to occupy a small space, especially users who have been decorated but did not install heating. As long as the original gas water heater of the kitchen is removed, you can basically be installed with such a small gas wall hanging furnace;
2. European imports.Strictly follow the European UnionEU directive EN483/EN625Standard manufacturing and testing, stable quality and safe operation;
3. LCDThe display screen can display the working status, set temperature, actual temperature, and working load. If a failure occurs, the fault code is displayed, which is convenient for fault judgment and maintenance.
4. The heating temperature is wide, from35-78°C, Can meet the needs of any heating terminals such as ground heating, heating, and heating.
5. Living hot water flow is large, which can meet the use of multi -water faucet at the same time.24kwThe Yiyi series gas wall hanging boilers are in Wimbledon25°CThe amount of hot water out of the time is per minute13.3L, Can be satisfied2Use hot water at the same time.
6. The temperature of hot water in life is stable and will not be cold and hot.The Yizhen Gas Wall -mounted boiler is a wall -hung boiler. The hot water in life is replaced by the second stainless steel plate for heat exchange. It is not directly heated on the burning room.Sudden heat.
7. Multiple safety chain protection, comprehensively covered all operating systems such as water circuit, air roads to ignition, exhaust, etc., to fully ensure safe operation.

1. Stallout protection.When the flame was accidentally extinguished, the system automatically cut off the gas channel to stop running;
2. Multiple safety temperature protection.The temperature of the hot water in life is high70°C, When the water temperature is too high, the gas valve immediately stops the gas supply;
3. Water deficiency protection and anti -drying protection.The water pressure in the system is lower than0.6barAt that time, stop working, and display the fault code on the display to remind users;
4. Super pressure protection.If you accidentally, the system pressure exceeds more than2.8barAt this time, the pump stops working, and at the same time, it automatically opens the pressure to prevent the gas wall -mounted boiler and heating system from being bloated by high pressure. At the same time, the display screen displays the fault code.
5. Unexpected gas stop protection.When the gas is stopped by accident, the gas wall hanging boiler will stop running automatically, the gas recovery, and manually reset.
6. The anti -frozen function of the heating system. When the environmental temperature is too low, the gas wall -hanging boiler will automatically turn on and operate to prevent the system water from frozen and freezing.As long as the ventilation is powered, even if the gas wall hanging boiler is closed, the function will be automatically turned on.
7. Frequent anti -frequent startup functions, extend the service life of the gas furnace.In the state of heating, the system temperature and time are dual control to prevent frequent startup of gas wall -hung boilers.
8. Defense wind protection.When the external wind power is too large, the wind turbine fails, the smoke discharge pipe or the inlet pipe is blocked, the system will automatically stop working;
9. Waterproof pump is protected by death.If the system continues24It is not used in hours, the pump will run automatically1In minutes, prevent the pump from sticking to death;
10. Overheating protection.When the system water temperature exceeds91°CAt the same time, the combustion is closed, and the output temperature of the water pump continues to run the system is low to85°C, Restore normal operation;
11. Power shutdown protection.After the power outage, the system stops working, and no gas leak occurs. After the power supply is restored, the system will automatically restore operation;
12. Leakage electricity protection.Fagei series of gas wall hanging boilers reachedIP-44Insulation level.

Introduction to Fagge Company

Fager, high -quality brand of European embedded household appliances, and the overall kitchen appliances advocate.Fage Corporation was founded1943In the year, there is so far76History of the year.He designed and created a complete and novel -style embedded kitchen appliances, comfortable thermal energy system and kitchen supplies.130Multiple countries.

Fage thermal energyFAGOR CONFORT

Since the 1970s, Fa GeFAGORThe Group has opened a new field of home heating and hot water products. So far, it has the history of product research and development and production of product development and production.Products bring global consumers to enjoy a comfortable life.Relying on the Group's cooperation advantages and strong industrial resources, with rich international market experience, Fager thermal products are sold well in Europe, Asia, America, and Africa.

As a European water heating manufacturer, the European Heating Industry AssociationEHIMember, FagerFAGORAlways adhere to a strict comprehensive management system, covering quality management, environmental management, safety performance management and health management.With the awe of the natural and humanities of the earth, observing the concept of environmental protection, continuous innovation, and winning global recognition with excellent energy conservation and environmental protection, and the use of renewable energy to protect the ecological environment of renewable energy.
