| Product Series | EasyPact | |
| product name | EasyPact TVS | |
| product type | Contactor | |

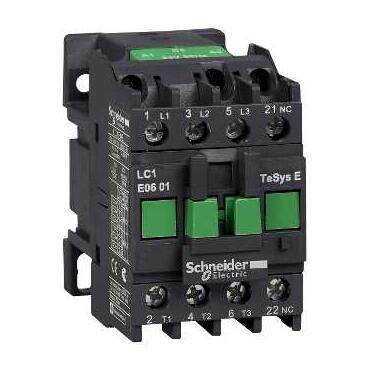

| product name | LC1E | |
| Contactor application field | Apply to the communication load of the power factor greater than or equal to 0.95 The mouse cage motor applied to the connection between the connection division | |
| Use category | AC-1 AC-3 | |
| Extreme | 3P | |
| Circle contact type | 3 NO |
| The rated work voltage [UE] | <= 690 V AC 50/60 Hz Applicable power circuit | |
| The rated working current [IE] | 6 A (<= 60°C) AC AC-3 applicable power circuit<= 440 V 20 A (<= 60°C) AC AC-1 applicable power circuit<= 440 V | |
| Electric power (KW) | 2.2 kW on 415/440 V AC 50/60 Hz 3 kW on 500 V AC 50/60 Hz 1.5 kW on 220/230 V AC 50/60 Hz 2.2 kW on 380/400 V AC 50/60 Hz 3 kW on 660/690 V AC 50/60 Hz | |
| Control loop characteristics | AC 50 Hz standard | |
| Control circuit voltage | 380 V AC 50 Hz | |
| Auxiliary contact type | 1 NO | |
| The rated impact tolerance voltage [uIMP] | 6 KV (the coil is not connected to the power circuit) IEC 60947 | |
| Overvoltage category | III | |
| The heating current is agreed [ITH] | 20 A<= 60°C power circuit | |
| The rated connection capacity [IRMS] | 140 A AC applicable auxiliary contacts conform to IEC 60947-5-1 60 A - 440 V AC Suitable Power Loop Compliant to IEC 60947-4-1 | |
| Rated split ability | 48 kA on 440 V Applicable Power circuit Compliant to IEC 60947 | |
| The rated short -time tolerance current [ICW] | 80 kA on...<= 40°C - 10 s Applicable Power Loop 45 kA on...<= 40°C - 60 s Applicable Power Loop 20 kA on...<= 40°C - 600 s Applicable Power Loop | |
| Follow the combined with relays | IEC 60947-5-1 | |
| Average impedance | 2.5 mΩ on 50 Hz Ith 20 A Suitable Power Loop | |
| The rated insulation voltage [UI] | 690 V conforms to IEC 60947-4-1 | |
| Electrical life | AC-3 AC-1 | |
| Each power consumption | AC-3 AC-1 | |
| Installation method | DIN guide rail installation Bottom plate installation | |
| Wiring ability | Power circuit: Bolt fastening - 1 soft cable 1...4 mm² with wire terminal Cable end Power circuit: Bolt fastening - 2 cord cable 1...2.5 mm² with wire terminal Cable end Power circuit: Bolt fastening - 1 hard wire Cable 1...4 mm² without wire terminal Cable end Power circuit: Bolt-tightening - 2 hard wire Cable 1...4 mm² without wire terminal Cable end Control loop: bolt fastening -1 soft wire and cable 1 ... 4 mm & sup2; do not bring the end of the cable and cable Control loop: bolt fastening -2 soft wire cable 1 ... 4 mm & sup2; do not bring the end of the cable cable Control loop: bolt fastening -1 soft wire cable 1 ... 4 mm & sup2; band line terminal and cable end Control loop: bolt fastening -2 soft wire and cable 1 ... 2.5 mm & salp2; band line terminal and cable end Control loop: bolt fastening -1 hard wire cable 1 ... 4 mm & sup2; do not bring the end of the cable cable Control loop: bolt fastening -2 hard wire cable 1 ... 4 mm & sup2; do not bring the end of the cable cable | |
| Torch | 1.2 N.M Applicable control loop 1.2 N.m Applicable Power Loop | |
| Action time | ||
| Mechanical life | 10000,000 times | |
| Maximum operating frequency | 1800 times/hour on...<= 60°C | |
| Control voltage limit | 0.3...0.6 Uc on...<= 55°C release 50 Hz 0.85...1.1 Uc on...<= 55°C run 50 Hz | |
| (~ 50Hz absorption) Power consumption (VA) | 95 VA on 20°C (0.75) 50 Hz | |
| (~ 50Hz maintained) power consumption (VA) | 8.5 VA on 20°C (0.3) 50 Hz | |
| Dissipation | 2 ... 3 w applicable control loop | |
| No more time | ||
| high | 74 mm | |
| width | 45 mm | |
| depth | 80 mm | |
| product weight | 0.3 kg |
| Standards compliant | EN 60947-1 EN 60947-4-1 IEC 60947-1 IEC 60947-4-1 GB 14048.4 | |
| certified product | CCC | |
| IP protection level | IP20 complies with IEC 60529 | |
| Protective measures | IEC 60068 | |
| Pollution level | 3 | |
| Run temperature | 5...55°C | |
| Store environmental temperature | -60...80°C | |
| Higher work altitude | 3000 m no renovation | |
| Refractory resistance and abnormal high temperature ability | IEC 60695-2-1 | |
| Anti -impact, vibration performance | Impact resistance Contact opening 7 gn (11ms) Removal of seismic performance open 1.5 GN (5 ... 300 Hz) Seismic properties closed state 3 GN (5 ... 300 Hz) Anti -impact performance Tinoca closed state 10 GN (11ms) |
