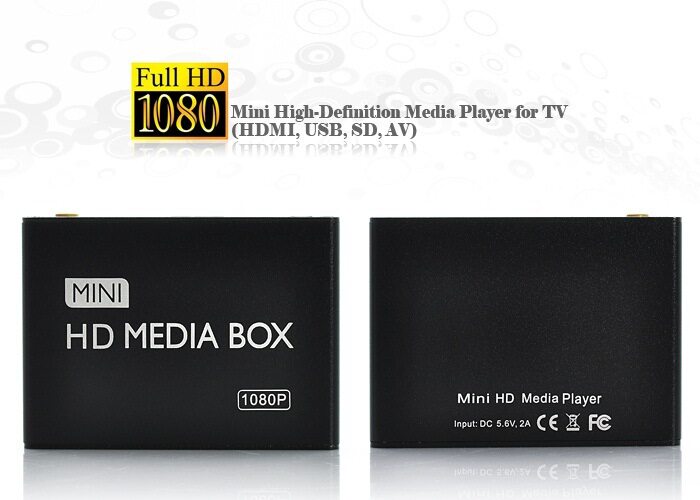

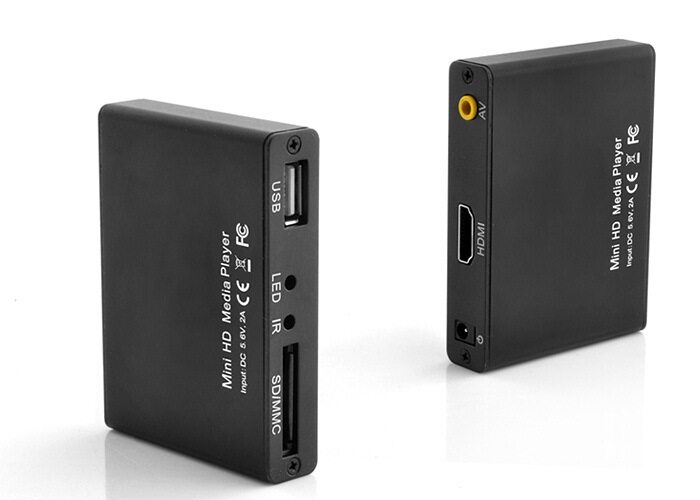

Real shot of product
It can be used as an advertising player, automatically played, and played.
AV video output, you can connect CRT big buttocks old TV
Can connect to HDMI LCD TV
Specification :
USB input: USB2.0 480MBTS/second high -speed transmission
Storage card: Support SD, SDHC, MMC card
File system: FAT/FAT32/NTFS
Audio format: MP3, WMA, WAV, OGG, AAC, LPCM, FLAC, AC3, APE (Supportless Music Decoding Play)
Video decoding: H.264, MKV, WMV9, MPEG1/2/4, HD DIVX, XIVD, FLV, RM/RMVB
Video format: MKV, TS, M2TS, WMV, Ifo, VOB, DAT, AVI, MP4, MOV, RM, RMVB,
DIVX,XVID,FLV
Video resolution: Maximum support 1920x1080p, 30 frames/second
Subtitles format: sub, SMI, SSA, SRT, IDX+SUB
Video output: HDMI digital output and AV output (supporting ordinary non -HD TVs)
Audio output: left -right channel stereo, hdmi digital output
System language: Chinese simplified Chinese, traditional, English/German/Spanish/French/Portuguese/Italian/Dutch, etc.
1. Technology core: use F10 full HD hardware chip;
2. Smooth guarantee: support up to 100MPBS code rate smooth decoding;
3. HD video: Support video 1920*1080p full HD decoding playback;
4. Complete output: HDMI1.3 interface, AV composite video, simulation left and right channels.
5. Exclusive support: supports HDMI and AV output, which facilitates the connection of more display devices.
6. Fuse button: The fuselage has full -function keys, and most of the functions can be completed through the fuselage button.
7. Data reading: The USB (HOST) interface is built on the side, which is convenient to connect the storage devices such as USB hard disks and U disks.
8. Extended application: The SD/MMC card interface is built on the side, and the record content of the digital camera and camera is supported directly.
9. Commonly used videos: Supports the most commonly used RM/RMVB-HD video playback, and supports 1920*1080P video resolution;
10. HD playback: support VC-1 (WMV9-HD), H.264, MPEG2-HD video coding; Support to 1920*1080p video resolution
11. Ultimate decoding: supports most popular video formats on the Internet: MKV, AVI, TS/TP, M2TS, MOV, VOB, RM/RMVB, FLV, WMV and other video formats.
Support to 1920*1080p video resolution.
12. Subtitle mounting: All format videos support the mounting ASS, SSA, SUB format subtitles.
13. Sound rail switching: Support MKV and AVI format video sound rail switching.
14. Music playback: Support MP3, WMA, OGG, AAC, ATRA and other audio files.
15. Audio decoding: Support DTS/AC3 digital audio 7.1 channel decoding, and directly solve the left and right channel analog output.
16. Picture browsing: support*.jpeg / *.bmp / *.gif / *.png and other pictures format
17. Elegant shape: small square appearance, optimal length, width and height ratio.
18. Comfortable operation: standard high -end remote control, all operations can be completed through remote control.
19. Complete accessories: composite sound video cable, composite sound video cable, power adapter, remote control, instruction manual.
20. Language customization: support customized multi -language.
Power Specifications: 90-230V, 50/60Hz access.
Power supply: External adapter, 5V power access
Storage medium: Create a USB HOST interface, which can be connected to USB hard disks and U disks.Very convenient to replace storage equipment.
Support video decoding: H.263, H.264, VC-1, MPEG1/2/4-HD, XVID, WMV, RV
Support video format: MKV, AVI, TS/TP, M2TS, RM/RMVB, MOV, VOB, FLV, WMV
Support audio coding: DTS, AC3, FLAC, AAC.
Support audio format: MP3, OGG, WMA, APE.
Support image format: JPEG, GIF, PNG, BMP format
Video output terminal: hdmi1.3 interface, AV composite video output interface
Audio output terminal: Stereo -Sound Sound simulation channel output
Storage expansion terminal: Support SD/MMC two -in -one port, support SDHC high -speed cards.
Support subtitle format: ASS, SSA, SUB
Support language: Support customized multi -language language
Full function remote control: standard all -function remote control.
In addition, in terms of music, F10 takes all lossless and lossy formats such as M4A, MP3, WAV, WMA, OGG, APE, FLAC, ACC, etc., supports a variety of sound effects modes, and also has spectrum and lyric display functions.
Common customers?
1. Q: Is Xunlei's XV, Storm Video BHD, QVS format support for QVS format?
Answer: The factory has testing all the player schemes, including 1073 1185 AML8626h, 8613 and other solutions, which do not support it.The XV, BHD/QVS files are the cache files played by Thunder to watch the film library and webpage. Due to the copyright, these files can only be played directly by using the Thunder player (equivalent to adding a secret to the FLV file, plus the addition of secrets, plus plus the FLV file, plus plus, plusIt is a shell), the same source of the chip, you can't play the same software with the same software.
2. Q: Do you support mobile hard disks?Does it support the SD card U disk?How big to support the hard drive?
Answer: Supports mobile hard drives, SD cards, and USB drives.Mobile hard disks can support a maximum of 2TB, and can also support hard disk holders. N multiple hard disks within 2TB are supported.The theoretical support for SD cards and USB drives is relatively large, and a 32GB disk has been measured.
3. The camera recorded, DVD copied, and CD copied. In this case, the video should be re -converted in this case.
AV, color difference, VGA, HDMI detailed connection:
1.AV line connection method: (suitable for old TV) AV line (yellow, red, white).Yellow is a video, red and white are audio.
1.First adjust the TV mode to the AV video office (note that there is a video with a video 1/2/3).Like the principle of connecting the DVD machine.
2. Connect one end of the AV line to the AV port of the player, and the other end is connected to the TV according to the color and connect to the power.
3. If the line is sure to be connected, the TV mode is also adjusted to the corresponding video mode, and the screen does not appear (or the black color is wrong\\splash screen is displayed), you can press the third row of the remote control“CVBS key”Correct the mode of player and TV. Press and hold one second at a time. If you don't come out, let go, and press again.
2. Color component line (YPBPR) connection method: ((This kind of connection is usually used at the least) component line is only image, and the sound depends on the AV line output.
1. Adjust the TV mode to the color difference/weight, and connect the line according to the color.The component line is just an image, and the sound depends on the AV line output.Receive the red and white interface in the AV line to the TV (do not connect with yellow, if there is no sound of red and white, that is, there is no insertion, because when the color is consolidated, there are only one group of AV ports in the TV., Can be a group of tests.
3. You can also choose to output the sound to the sound, that is, insert the red and white lotus head to the sound. If there is no red and white interface, there is only one 3.5mm interface like the headset. You needThe red and white lotus head is turned into a 3.5mm headset mother head, (can be contacted to the customer service staff to order).Putting the audio or headset interface directly into the AV interface, it will cause color and sound interference.
4. If the line is sure to be connected, the TV mode is also adjusted to the corresponding video mode, and the screen does not appear (or the black color is wrong\\splash screen is displayed), you can press the third row of the remote control“YPBPR key”Correct the mode of player and TV. Press and hold one second at a time. If you don't come out, let go, and press again.
3.vga cable connection method: (mostly used for display \\ advertising machine \\ projection)
1.VGA cable, which can be used to connect the display and projector. The VGA cable is the same as the color difference line, but the video, the sound also outputs the sound through the red and white interface of the AV line.
2. You can also choose to output the sound to the sound, that is, insert the red and white lotus head to the sound. If the audio does not have a red and white interface, there is only one 3.5mm interface like the headset. You needThe red and white lotus head is turned into a 3.5mm headset mother head, (can be contacted to the customer service staff to order).Putting the audio or headset interface directly into the AV interface, it will cause color and sound interference.
3. The interface is not displayed and displayed, and the third row of the third row can be used on the remote control.“VGA”Key to correct mode.You can hold it for a second at a time. If you don't come out, let it go, continue to press again.
4. HDMI line connection method: (with the popularity of LCD TVs, it becomes the mainstream market in the future)
1. HDMI is currently a high -definition interface with LCD TVs. It can reach up to 1080P. It integrates video and audio. A line can be output with video and audio.HDMI cable output can also output audio from the AV red and white interface, set the player audio output mode!
2. First adjust the TV at HDMI high -definition, and then connect the wires. Some TVs have 3 sets of HDMI interfaces. When connecting HDMI (1/2/3), the TV will be adjusted to the corresponding (1/2/3) In mode, you can.
3. If the interface is not out, you can use the third row on the remote control.“HDMI”Bond correction mode.You can press and hold it for a second at a time.
Reminder: Customers who use VGA output (for VGA interface devices such as connecting display, projector and other VGA interfaces), contact before shooting, or pay a message:“VGA output”The VGA output needs to be set simply. In order to facilitate you can use it, please tell us customer service or leave a message, and adjust it to VGA output (the debugging method is introduced above).We will output the default HDMI out of the cargo factory!
A variety of video output mode: AV (PAL/NTSC), color difference (720p), HDMI (HDMI-series), VGA is dedicated to this playback. Customers who want to adjust VGA first turn off the automatic detection HDMI, then adjust it to first to first to the first to the first to the first to the first to the first to the first to the first to be adjusted to it.VGA-1024*768, press confirmation, locks on the VGA interface.Or after picking up, press the VGA key on the remote control, press a few times, you can correct it and use it simple.
The HDMI function is automatically detected. After opening, the 99 % TV set will automatically correct the video mode of the player and the TV. After the wire is connected, the power -on interface can be displayed.
When the AV cable/HDMI cable/color difference, the TV can be automatically recognized.It is a very practical function. Generally, we are opening the default.Customers using VGA should automatically detect HDMI and turn off. This can lock the VGA interface and does not display the main interface. You can correct the video mode by pressing the VGA key on the remote control.
