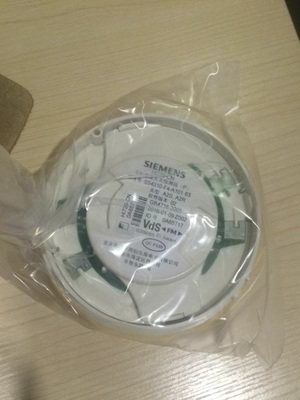

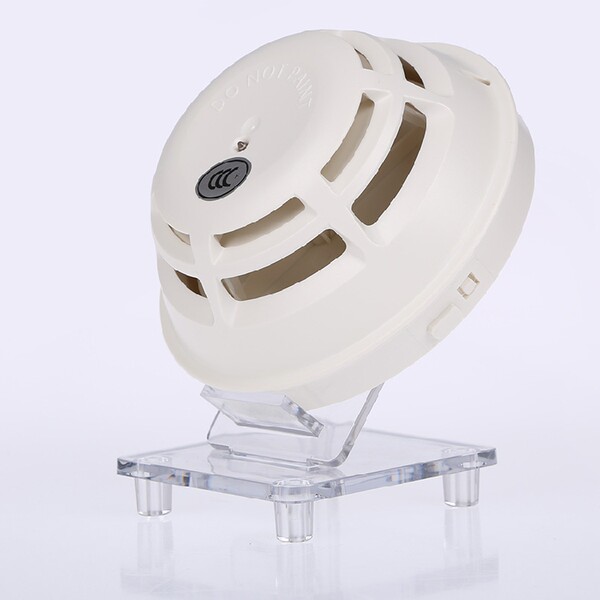

Siemens Siemens OH720-CN dot-type composite smoke temperature sensing fire detector

1. OH720-CN product introduction:

●  Meet the national standards GB4715-2005 "Point-type Fire Detector" and GB4716-2005 "Point-type Fire Detector"
●  The emitter irradiates smoke particles from different angles, and the scattered light is transmitted to the receiving tube to generate a measurable electrical signal.At the same time, the temperature sensor can detect smokeless fire.
●  Early fire detection can be carried out regardless of whether there is smoke (black smoke or white smoke) or no smoke at all
●  Strong ability to resist environmental factors, including dust, fiber, insects, moisture, extreme high or low temperatures, electromagnetic interference, corrosive gases, vibration, non-fire smoke, etc.
●  internal integrated short circuit isolator
●  communicate with the controller through the D-BUS loop
●  The product label comes with tearable coded stickers for easy engineering debugging
●  Soft address addressing mode

two,OH720-CNThe main parameters:

Operating mode  indicator light status
normal  extinguish
Positioning/test  flash once per second
Call the police  Changliang
Operating Voltage  12 ... 33 VDC
Quiescent current 230μA
Number of external lights that can be connected 2
External lamp current  10 ... 16 mA
External lamp voltage  9 ... 33 VDC
Anti -electromagnetic interference
-10 kHz... 1.8 GHz  50 V/m
-1.8 GHz... 2.5 GHz  20 V/m
Operating temperature  -10 ... +50℃
Storage temperature  -30 ... +70℃
humidity≤95% rel.
color  Pure white, RAL9010
Weight 0.088 Kg
Protection level EN60529 / IEC529
- Base DB720-CN  IP40
- Base DB720-CN with base gasket RS720  IP42
Allowed air flow rate  maximum 5 m/s
