Brand: Jiangson
model:M302MJ

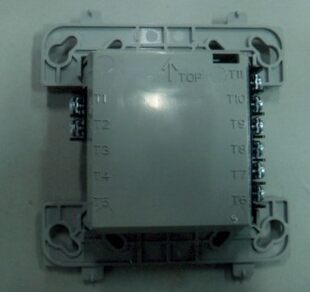

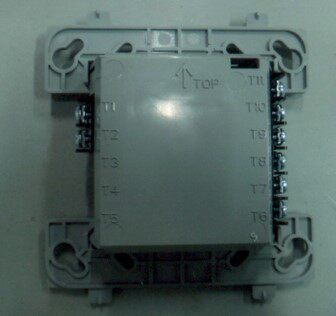

American Johnson M302MJ ordinary detector intelligent interface module
characteristic
Supports compatible two-wire detectors.
- Monitor the status of input lines and external power supplies
- Strong anti-interference (EMF/RFI)
-SEMS screws with clips for easy wiring
-Decimal address settings (01-159)
- Under normal conditions, the LED light flashes green and the red light is always on when alarm is called
-FLASHSCAN protocol
parameter
-Working voltage: 15-32VDC
- Quiescent current: 255μA(LED flashes)
-Maximum current: 5.1mA (LED is always on)
- Terminal resistance: 3.9 ohms
-External power supply: 18-28VDC, maximum ripple 0.1VRMS, 90mA (maximum)
-Temperature range: 0-49 degrees Celsius
-Humidity range: 10%-93%, no condensation
-External dimensions: 114.3mm (height)*101.6mm (width)*31.75mm (thickness)
