Overview:

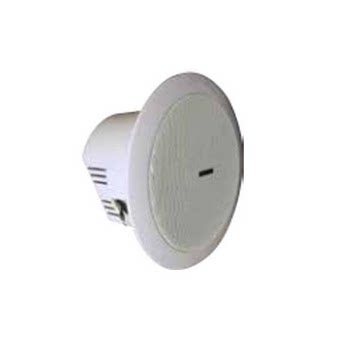

N-CL06P is an affordable universal 6W ceiling speaker with an atmospheric and stylish appearance design and beautiful creamy white coating, making it perfectly matched with various interior decorations.The bottom box shape is consistent with the panel style, and the two are harmoniously matched, which can fully protect the speaker from dust and fallen objects, and prevent sound from spreading through ceiling pores to adjacent areas.The speaker mask and bottom box are made of high-strength ABS material, the flame retardant grade meets the UL94V0 standard, and all materials meet the environmental protection requirements of RoHS.
parameter:
| Maximum power | 9W |
| rated power | 9W |
| Power tap (100V) | 6W |
| Sound pressure level 6W / 1W | When 98 dB/90dB (150 Hz ~ 15k Hz, 1m) |
| Effective frequency response range | 100Hz~18kHz(-10dB) |
| Open angle | 175°(1kHz/-6dB) |
| Rated voltage | 70V/100V |
| Rated impedance | 6.7kΩ/3.3kΩ/1.7kΩ |
| Connector | 4-pole plastic terminal |
| Dimensions (diameter x height) | Φ180mmx110mm |
| Hole Size | Φ160mm |
| weight | 0.78kg |
| color | White (RAL9003) |
| Speaker size | 125mm(5inch) |
| Operating temperature | -25℃ to +55℃ |
| storage temperature | -40 ℃ to+70 ℃ |
| -Relative humidity | <95% |
