Catalog Musical Instruments الآت موسيقيه Sound systems, amplifiers Loudspeakers

Speakers, 5 years, Germany, S2, 2v, S2, S3, S3, 3v, horizontal version

Product information

Code 547050754974
Select a configuration:
Sort by color:
Status: New
In stock: 832 PCs
Approx weight: 0 kg
Price per 1 piece :
Local delivery:
Quantity: + -
Minimal lot:
Selected configuration: Sort by color: S2X
Total:
Add to cart

Add to favorites

Vendor info

Name: 音频俱乐部
Shop name: 音频俱乐部
Shipping estimate: 4.97
Goods valuation: 4.97
Service evaluation: 4.97
Add vendor to favourites
Rating:
Sort by color: S2X; S3H horizontal version; S3V vertical version; S2V;
Brand: ADAM;
Price range: 3001-10000 yuan;
Number of speakers: Other;
Original description



The S1X near-field monitor speaker is small in size, but it can deliver high-quality sound.It has all the key features of all SX series speakers, including the X-ART tweeter combined with ADAM-designed Class A/B amplifiers, the HexaCone woofer with an optimized magnetic voice coil system, powered by a premium PWM amplifier.This speaker has crystal clear resolution, tight and fine bass expression, and easy and smooth musical performance.



If high-quality sound is needed, but the interior space is smaller, such as a small recording studio, live broadcast car or 5.1 setup, then at any time, the S1X will be.

Technical specifications:

Woster: 155mm HexaCone
Tweeter: X-ART
Frequency response (+/-3dB): 40Hz-50kHz
Panel: Input/High Frequency Gain, High Frequency/Low Frequency Equalization
Built-in amplifier: woofer: 200W/280W, tweeter: 50W/100W
Input: Canon Head Balance Input
Size: 295mm×175mm×260mm
Weight: 6 kg

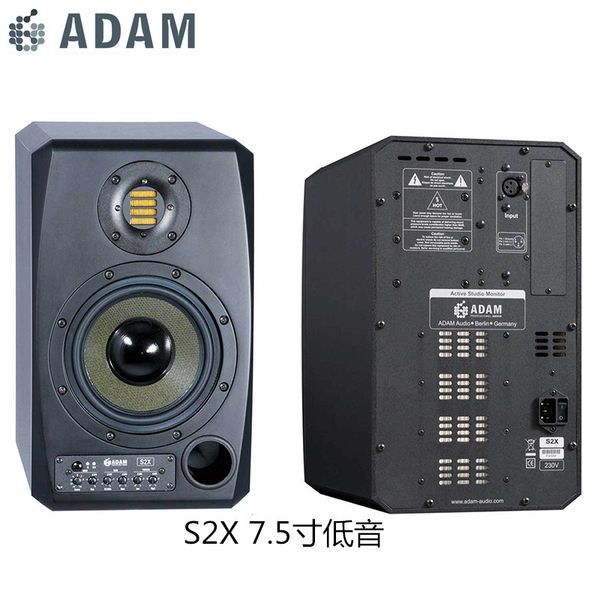

Made of materials, the S2X combines the advantages of a classic 7-inch woofer and tweeter with ADAM innovation.

The HexaCone 7-inch woofer is powered by a precision 2-inch magnetic voice coil system, producing a larger linear amplitude and a greater dynamic effect than speakers of the same size.It combines X-ART and A/B amplifiers to produce audio quality that gives listeners a very shocking, deep but tight low-frequency feeling.

Optional digital input:

All SX series speakers (except S1X) can be modified to add a 24-bit/192kHz digital-to-analog converter with an AES/EBU (Canon Head) and an SPDIF (Lotus Holder) input, and a left/right/mono conversion switch.

Front panel:

There are 6 controls on the front panel.The input sensitivity is operated through two controls, one is a rough control from -20dB to +8dB, and the other is a fine control of 0.5dB per stage, ranging from -1.5dB to 2dB.

There are two other controls used to operate low frequencies.One is an 80Hz equalizer that enhances low frequency response while playing pop music.The other is a broom filter, which can change frequencies below 150Hz.

The last two controls are used to operate high frequency.Change the high-frequency volume (-2dB to +2dB), and the second is a broom-shaped filter with a frequency of more than 6kHz.Both high-frequency and low-frequency filters can be increased or reduced by +/- 4dB in their respective frequency band ranges.

Technical specifications:

  • Woster: 186mm HexaCone
  • Tweeter: X-ART
  • Frequency response (+/-3dB): 35Hz-50kHz
  • Panel: Input/High Frequency Gain, High Frequency/Low Frequency Equalization
  • Built-in amplifier: woofer: 250W/300W, tweeter: 50W/100W
  • Input: Analog: Canon Head Balanced Input, Digital (optional): AES/EBU + SPDIF
  • Size: 370mm×220mm×320mm
  • Weight: 10.8 kg





S3X-H is the new generation of S3A speakers, and S3A is one of ADAM's speaker models and is used in recording studios everywhere.As the successor of the S3A, the S3X-H is in monitor speakers of the same size and price



Unlike the S3A, the new S4X speaker combines a 4-inch HexaCone mid-frequency unit, which can further improve the important mid-frequency music expression and provide more detailed performance.

The two symmetrical woofers have the same frequency range, which can produce a low and tight bass effect.Easy installation and setup in any multi-channel application.

Optional digital input:

All SX series speakers (except S1X) can be modified to add a 24-bit/192kHz digital-to-analog converter with an AES/EBU (Canon Head) and an SPDIF (Lotus Holder) input, and a left/right/mono conversion switch.

Front panel:

There are 6 controls on the front panel.The input sensitivity is operated through two controls, one is a rough control from -20dB to +8dB, and the other is a fine control of 0.5dB per stage, ranging from -1.5dB to 2dB.

There are two other controls used to operate low frequencies.One is an 80Hz equalizer that enhances low frequency response while playing pop music.The other is a broom filter, which can change frequencies below 150Hz.

The last two controls are used to operate high frequency.Change the high-frequency volume (-2dB to +2dB), and the second is a broom-shaped filter with a frequency of more than 6kHz.Both high-frequency and low-frequency filters can be increased or reduced by +/- 4dB in their respective frequency band ranges.

Technical specifications:

Woster: 2×186mm HexaCone
Alto unit: 116mm HexaCone
Tweeter: X-ART
Frequency response (+/-3dB): 32Hz-50kHz
Panel: Input/High Frequency Gain, High Frequency/Low Frequency Equalization
Built-in amplifier: woofer: 2×250W/350W, midrange unit: 250W/350W, tweeter: 50W/100W
Input: Analog: Canon Head Balanced Input, Digital (optional): AES/EBU + SPDIF
Size: 280mm×530mm×320mm
Weight: 19.6 kg







The S3X-V control monitor uses the newly developed 4-inch HexaCone mid-frequency unit, 9-inch HexaCone woofer and X-ART tweeter.



Compared to smaller speakers, the S3X-V can produce more power and sound, with more detail and even sound expression, enough to satisfy the picky listener.Whether it is a symphony or a jazz trio, the S3X can show slight differences.

Optional digital input:

All SX series speakers (except S1X) can be modified to add a 24-bit/192kHz digital-to-analog converter with an AES/EBU (Canon Head) and an SPDIF (Lotus Holder) input, and a left/right/mono conversion switch.

Front panel:

There are 6 controls on the front panel.The input sensitivity is operated through two controls, one is a rough control from -20dB to +8dB, and the other is a fine control of 0.5dB per stage, ranging from -1.5dB to 2dB.

There are two other controls used to operate low frequencies.One is an 80Hz equalizer that enhances low frequency response while playing pop music.The other is a broom filter, which can change frequencies below 150Hz.

The last two controls are used to operate high frequency.Change the high-frequency volume (-2dB to +2dB), and the second is a broom-shaped filter with a frequency of more than 6kHz.Both high-frequency and low-frequency filters can be increased or reduced by +/- 4dB in their respective frequency band ranges.

Technical specifications:

Woster: 228mm HexaCone
Alto unit: 116mm HexaCone
Tweeter: X-ART
Frequency response (+/-3dB): 32Hz-50kHz
Panel: Input/High Frequency Gain, High Frequency/Low Frequency Equalization
Built-in amplifier: woofer: 250W/350W, midrange: 250W/350W, tweeter: 50W/100W
Input: Analog: Canon Head Balanced Input, Digital (optional): AES/EBU + SPDIF
Size: 485mm×281mm×295mm
Weight: 15.4 kg
