| Sort by color: | Genuine West Lake X1514 380V; Genuine West Lake X1514 220V; Genuine West Lake x1527 three -phase 750W; Genuine West Lake x1527 single phase 750W; |
| Brand: | Longjing tea; |
| Model: | X1514/X1527; |

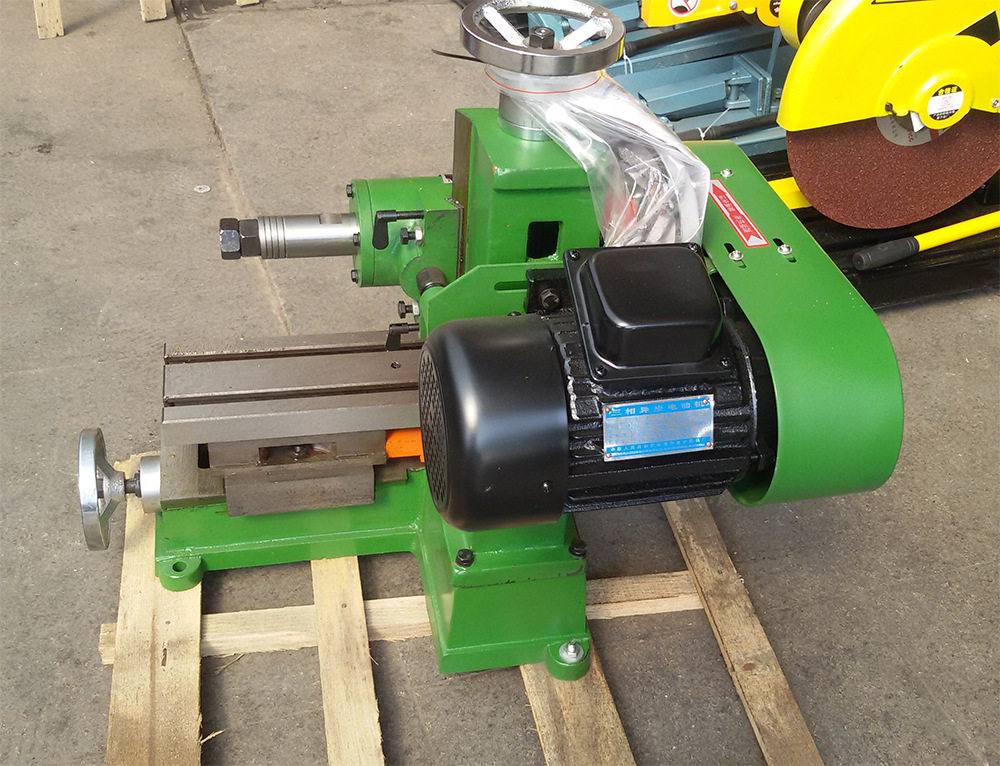

Xihu brand: X1527 simple horizontal milling machine
X1527 simple horizontal milling machine is a small mechanical processing equipment, suitable for non-ferrous metals, plastics, plexiglass, wood sawing, milling slots, engraving lines and other milling pins. The above-mentioned cutting processing can be completed at any position using the multi-directional rotation of the workbench.
The machine is small and exquisite, beautiful in appearance, stable in accuracy, easy to operate and widely used.

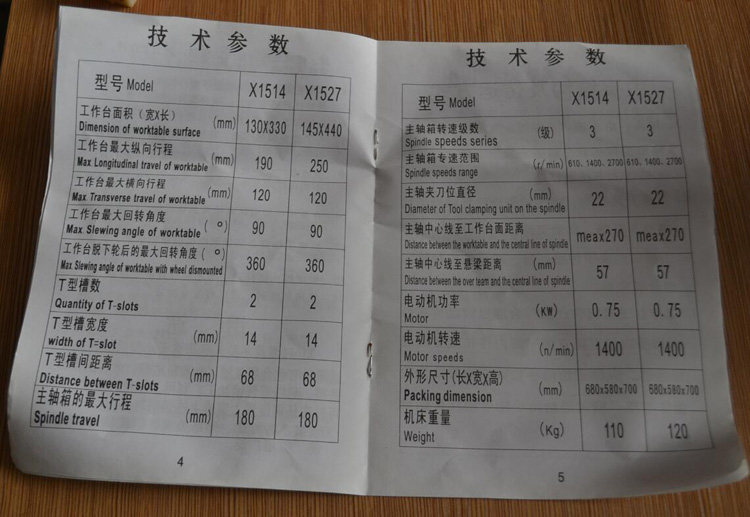

Technical Parameters:
Model X1527

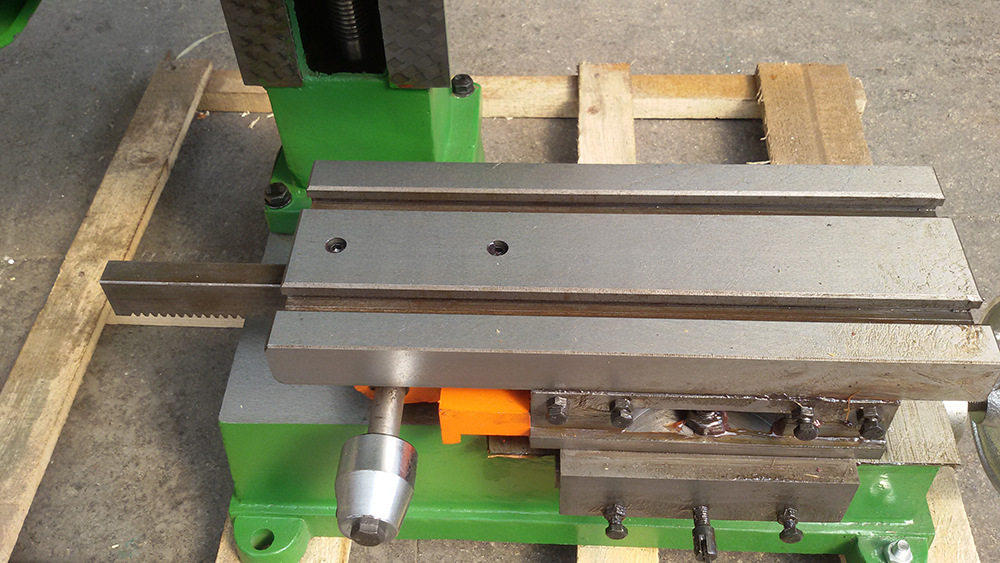

Working table (width x length): 145*440mm
Maximum longitudinal stroke of workbench: 250mm
Maximum horizontal stroke of workbench: 120mm
Maximum rotation angle of workbench: 90 degrees
Maximum rotation angle after the workbench is removed: 360 degrees
Number of T-shaped slots: 2
T-shaped groove width: 14mm
T-shaped groove distance: 68mm
Maximum stroke of spindle box: 180mm
Spindle box speed stage: Level 3
Spindle box speed range: 610, 1400, 2700 rpm
Spindle clip diameter: 22mm
Distance from the center line of the spindle to the hanging beam: 57mm
Motor power: 0.75KW
Three-phase motor: 380V/220V
Motor speed: 1400 rpm
Dimensions: (Length x Width x Height) 680x580x700
Machine tool weight: 120 kg
Remarks: This machine is relatively heavy. You can only go to logistics and cannot send courier. The price on the Internet is: the price of ordinary logistics in Jiangsu, Zhejiang and Shanghai.
For customers of Fadebang, Tiandi Huayu and Jiaji Logistics, the price is calculated separately.
(Single-phase three-phase can be matched, and a single-phase additional 100 yuan)
The product is heavy goods. Generally, only logistics is issued.0123456789
