The H1008 is an excellent and powerful eight-channel headphone distribution amplifier, using high-precision transistor technology and independent ultra-large power amplifier technology for each channel.It has input/output LED signal indicator and LED overload indicator.The standard 19-inch 1U rack-type metal body design provides good handling and sound quality for recording studios, live performances and music studio monitoring.
Multiple H1008s can be connected and used, and even in large-scale occasions such as large bands, multimedia production, education, and large conferences, H1008 (multiple) can be handled completely freely.The H1008 is suitable for all types of headphones.
Technical characteristics:
- Eight-channel high-power headphone distribution amplifier
- First-class amplifier technology and high-precision transistor technology
- Standard 19-inch 1U rack-type pure aluminum body design, effective heat dissipation

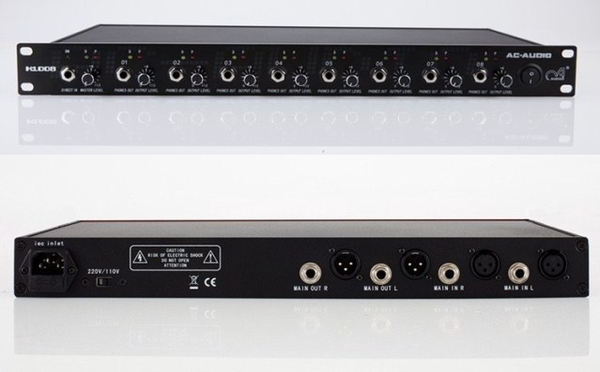

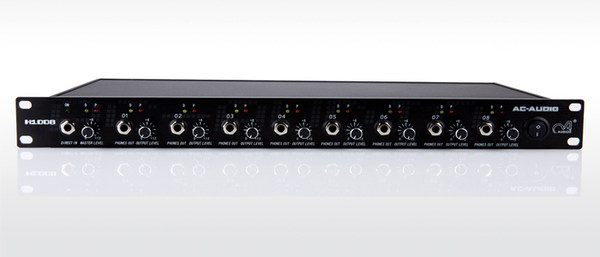

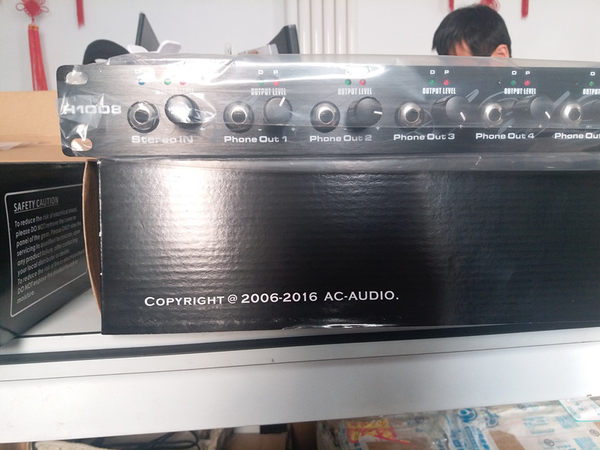

- Direct input interface on the front panel
- With balanced input

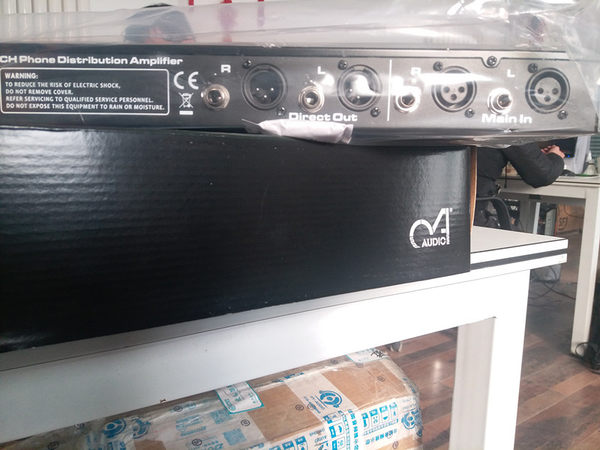

- Two stereo inputs on the rear panel, with Canon interface input and Large three-core interface input respectively
- LED displays the output level and input level, and emits light from 0dBu to +12dBu.Peak LED monitors the entire signal chain, illuminates at 6dB to avoid overload
parameter:
Main input:
HF-filtered, servo-balanced 1/4"TRS connection
input resistance:
40 kΩBalance, 30kΩUnbalanced
Large input level:
16 dBu Equilibrium and Unbalanced
CMRR:
typically 40 dB,>55 dB @ 1 kHz
Main output:
XLR- and 1/4"TRS connection, balance
Canon output:
1/4"TRS connection (stereo)
Large output power:
+24 dBm (load impedance 100Ω)
Frequency response:
10 Hz to 150 kHz, +/-3 dB
noise:
22 Hz to 22 kHz>90 dB @ 0 dBu
Dynamic Range:
22 Hz to 22 kHz: 110 dB
distortion(THD):
0.006 % typ. @ +4 dBu, 1 kHz, Gain 1
Input level:
LED displays, luminescent when 0dBu to +12dBu.Peak LED monitors the entire signal chain and emits light when the limit reaches 6dB.
Output level:
LED displays, luminescent when 0dBu to +12dBu.Peak LED monitors the entire signal chain and emits light when the limit reaches 6dB.
Voltage:
AU: 240 V~50 Hz, US: 120 V~60 Hz, EC: 220 V~50 Hz, UK: 240 V~50 Hz, JP: 100 V~60 Hz, SA: 240 V~50 Hz
energy consumption:
30 W
fuse:
100-120v:T630mAH, 200-240v:T315mAH
size (H x W x D):
Approximately 45 mm x 483 mm x 190 mm
About 1.8" x 19" x 7.5"
weight:
About 3 kgs
