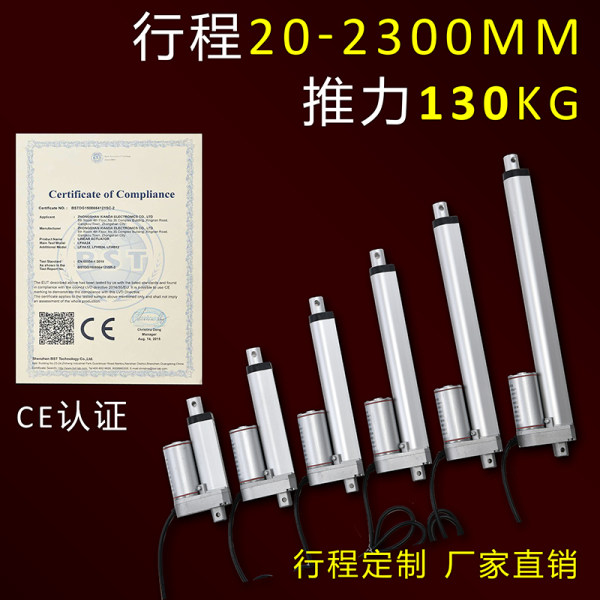

Electric engine, 300mm, 220v, 12v, 24v

   Our company specializes in the production of electric push rods, with discounted prices and guaranteed quality.

    Orders can be shipped on the same day before 16 pm. Welcome to call us for consultation        Inquiry:13531754436

  Pushing rod warranty period is one year, and returns are not supported if there is no quality issue.The machine may not be disassembled and installed without permission.



   The tax price is excluded on the Internet, and the tax price is 10%.Only by purchasing more than 10 units can you issue a VAT invoice.



Product name: Linear electric push rod

Technical Parameters:

1. Rated power: 20W Maximum 30W
2. Permanent magnet DC motor drive; voltage: 12V, 24V, 36V, 48V,
3. There is a stroke limit switch at both ends of the push rod. After the telescopic rod runs to the bottom or to the top, it will automatically disconnect the power.The motor will not idling.You can also stop the power supply at any position, with self-locking.

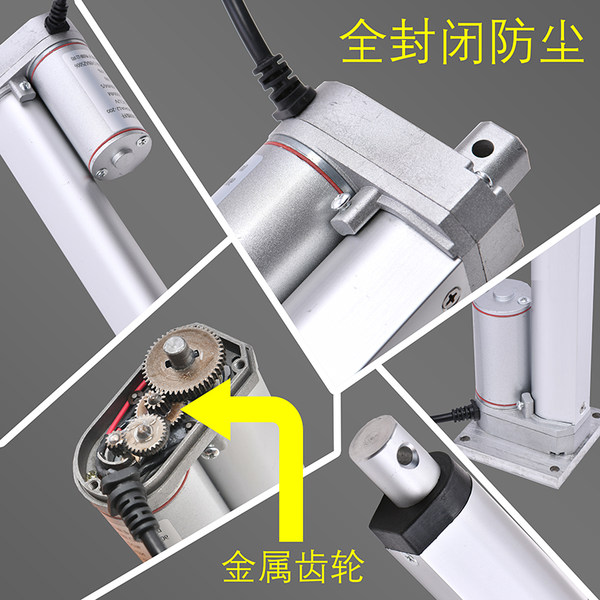

4. The push rod is driven by a DC motor and driven by a screw.The telescopic rod can only telescopic and not rotate.
5. The motor is positive and negative poles.For example, the positive electrode extends and the negative electrode shrinks.Change the direction of the rod to expand and retract.

6. Ambient temperature -20℃ to +75℃.(-40℃ antifreeze oil can be added according to customer requirements)
7. Standard protection level: IP54.
8. Low noise design, noise level is less than 42dB.
9. The putter warranty period is one year, and returns are not supported if there is no quality issue.The machine may not be disassembled and installed without permission.
10. Push rod material: aluminum alloy.

11. Product functions: drive other objects to push, pull, raise, and lower.

12. Product application scope: TV lifting platform, massage table, electric bed, medical chair, electric equipment, micro equipment, electric sofa, camera rack, camera, etc.



1.Standard itinerary:(10.20.30.50.100.150.200.250.300.350.400.450.500.550.600.650.700.750.800.850.900.950.1000.1050.1150.1200)mm,Non-standard itinerary can be customized according to customer requirements.

The itinerary can be customized to 2000mm. 1300mm-2000mm is a customized product and does not support returns. The round-trip shipping fee can be borne by the customer.

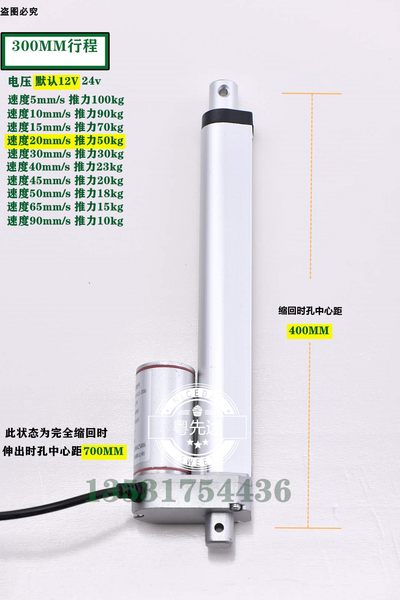

2.Installation size: (1): After the push rod is completely retracted, the central distance between the front and rear two mounting holes is the minimum installation distance of the push rod (that is, the length of the push rod).300mmThe trip is belowL(Installation Size)=100mm+S(journey),300mmand300mmItinerary aboveL(Installation size)=147mm+S(journey).(2): The push rod fully extends out the center distance between the front and rear two mounting holes (300mmThe itinerary is below)=100mm+S(journey)+S(journey),(300mmand300mmItinerary above)=147mm+S(journey)+S(journey).





The power of a putter is related to speed. The faster the speed, the smaller the force, and the slower the speed, the greater the force, and the two are inversely proportional.Buyers can select the motor with appropriate speed and thrust according to the following parameter table:

The longer the trip, the higher the price, the longer the trip, the heavier the weight, and the corresponding freight is also the more expensive. If you buy the payment directly, you need to make up the difference. Thank you for your cooperation!



1. The motor coil is burned without warranty

2. Motor gears and other accessories are damaged, free warranty, and the warranty period is one year (from self-portrait payment)
3. The round-trip express fee for the motor during warranty shall be borne by the buyer, but the seller shall not bear it.

1. The pictures of our baby's baby are taken in kind, genuine and authentic goods, please rest assured to buy.

2. In order to ensure that the baby has no quality problems and normal use, we will unpack the packaging before issuing to check the quality and operation status, and absolutely ensure the integrity of the goods!

3. Welcome to the premise of the transaction, so that we can reach an unanimous understanding of the product itself or other matters, so as not to cause misunderstandings.

4. Regarding freight: Because the goods arrive at different places, different freight fees will be incurred. The above postage is for reference only and the actual situation shall prevail.The unified delivery method of this store is express delivery. Some products are heavier or larger in size, and logistics freight delivery method can also be used.

5. About signing for receipt: When the buyer receives goods delivered by the delivery personnel, please be sure to unbox the goods in person and check the goods on the spot, pay attention to whether there are obvious damages caused by fall, bump, squeeze, and pressure on the outside surface, and whether the quantity and accessories are complete. If there is incomplete goods, wear or even damage on the road, please do not sign and receive the goods and contact us for verification in time.If there are any problems after signing for the receipt, our store will not be responsible!If the buyer has any problems with the quality of the product, he or she can submit a return and exchange within 24 hours after receiving the product, but the items must be ensured that the product is intact and cannot be disassembled for forced repair or replacement of the accessories in the machine.Due to the customer's own reasons and other than product quality problems, no return or exchange will be given!





6.After receiving the baby you took, if you are satisfied with the baby and the service, please give me a good review. Your good review will be the motivation for the owner to continue to work hard. Thank you!



The longer the trip, the higher the price, the longer the trip, the heavier the weight, and the corresponding freight is also the more expensive. If you buy the payment directly, you need to make up the difference. Thank you for your cooperation!
