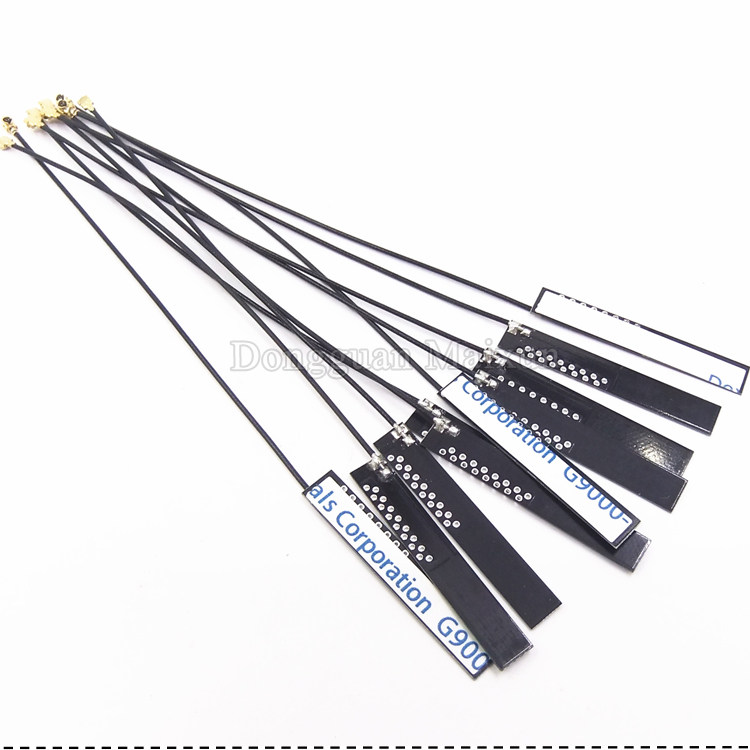

2.4GWIFI Bluetooth built -in antenna 4db full -directional AirGainPCB with gel iPEX1 generation conventional RF1.13

Our shop activity: free shipping in this model

No free shipping areas: Taiwan; Hong Kong; Macau; overseas; Qinghai; Xinjiang; Tibet... and other remote areas

Customers and friends note: This antenna connector has 4 types (ipex1 generation, ipex4 generation, welding type, SMA internal screw needle). Please make sure to confirm it clearly.If you buy the connector incorrectly, you will be responsible for the return and exchange freight costs yourself. It is recommended to consult customer service before purchasing, or purchase freight insurance yourself.

2.4GWIFI Bluetooth built -in antenna 4db full -directional AirGainPCB with gel iPEX1 generation conventional RF1.13

Joint: welding, ipex1 generation, ipex4 generation, SMA internal screw needle

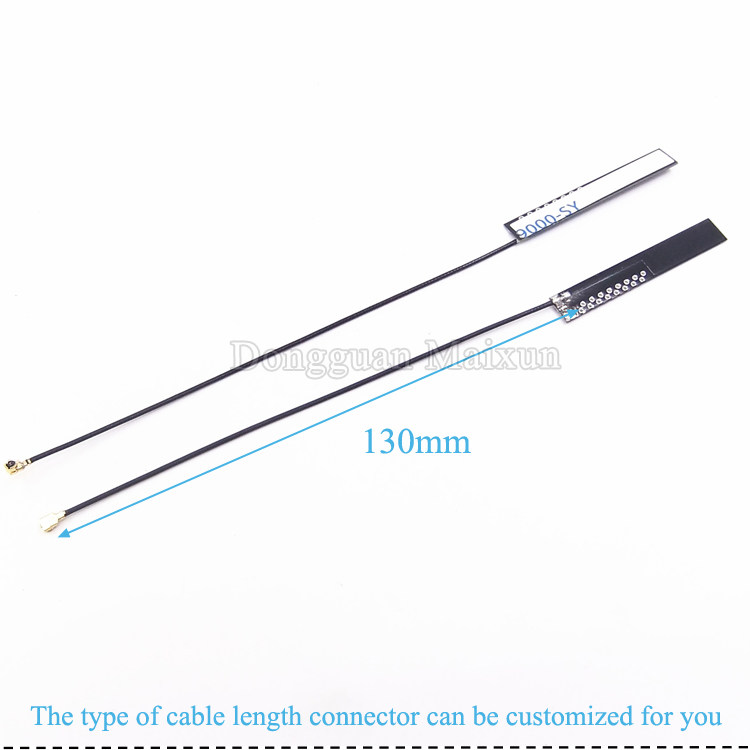

Total line length: optional and customizable, you can refer to the detailed example diagram to calculate the length

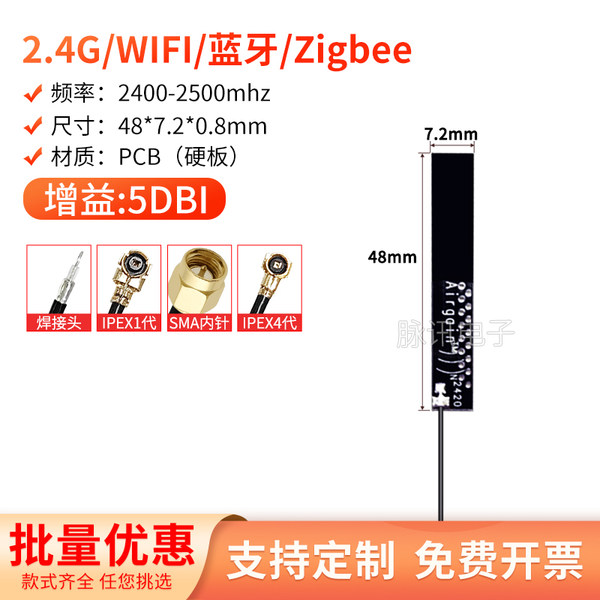

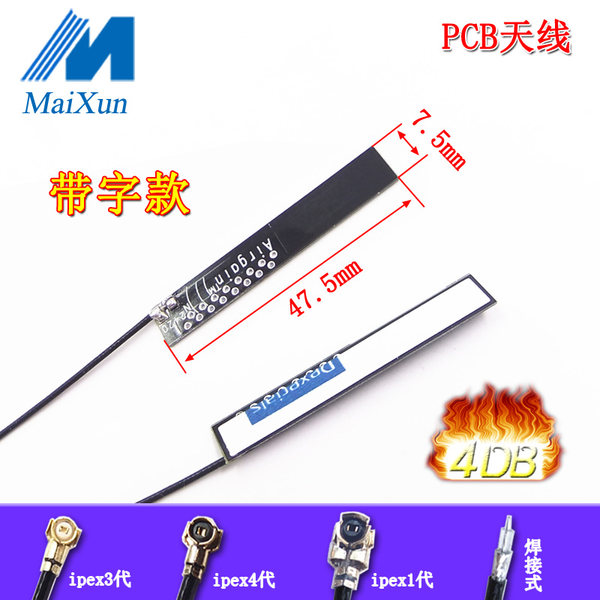

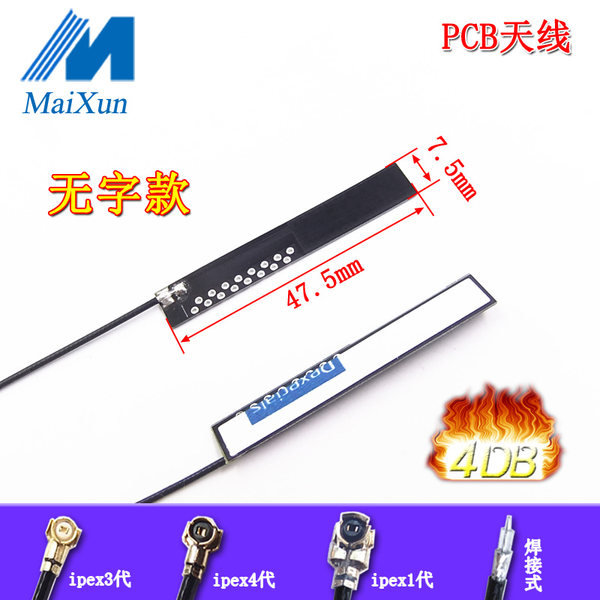

PCB specification: 47 X 7 X 0.6mm (approximate size)

Definition of Bobby: S.W.R<= 2.0 @ 2400 MHz ~ 2500 MHz
Gain definition: 4-5dBi ( *Typical* )
Frequency band definition: 2400 MHz ~ 2500 MHz
Image definition: 50 ohm

A. Electrical Characteristics
Frequency 2400 ~ 2500 MHz
S.W.R.<= 2.0
Antenna Gain 4-5dBi± 0.7dBi
Polarization Linear
Impedance 50 Ohm
B. Material& Mechanical Characteristics
Material of Radiator PCB
Cable Type O.D.  RF1.13 mm
Connector Type Mini Connector
Pull Test>= 1.0 Kg
C. Environmental
Operation Temperature - 40°C ~ + 65°C
Storage Temperature - 40°C ~ + 80°C

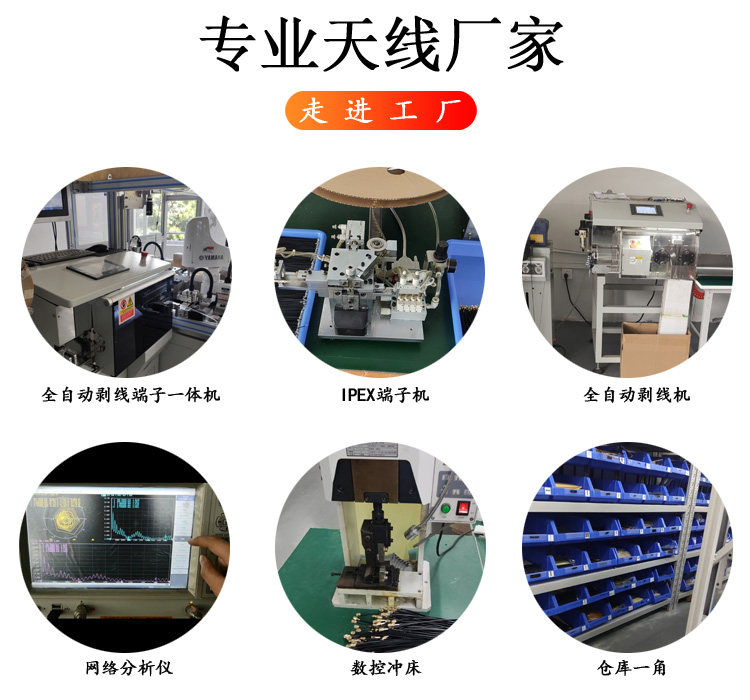

We welcome consultation for large quantity and excellent quality, ensuring stable supply.

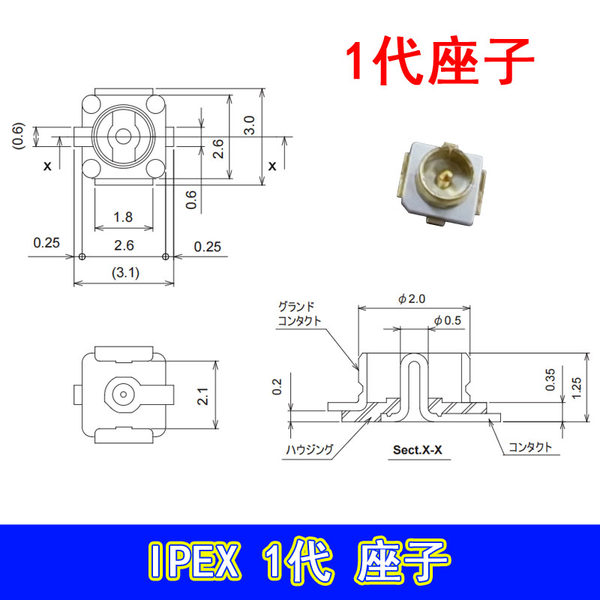

Please click the picture for a patch seat that needs supporting facilitiesEnter the purchase

For the following type of antennas, please click the pictureEnter to buy,

Different line lengthAnd the connection type, batch can be customized, please contact customer service
