This connection does not have a power amplifier, and it cannot be directly connected to the speaker. It must be modified to connect the amplifier before it can be used. For the specific connection method, please refer to the relevant instructions and related precautions below the picture;

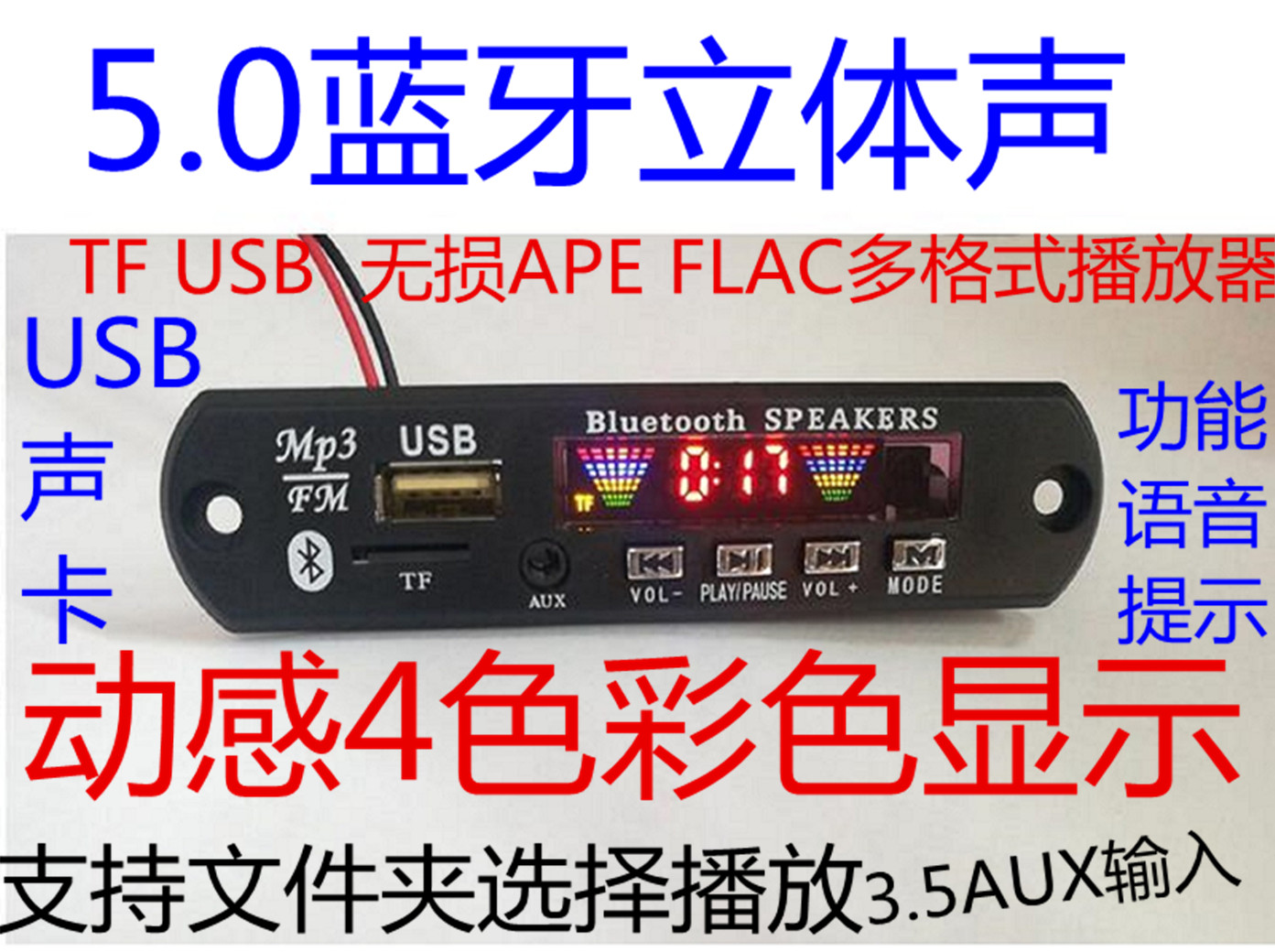

The latest upgrade supports APP control;Display spectrum dynamic effect (such as connection video)
This connection is equipped with Bluetooth. Each of the 6 colors represents 6 packages. Please choose the corresponding photo.
Package instructions (except for packages, no FM radio, all other packages are equipped with FM radio; with call welding, without call, no call, no call, no call function, the same as others):
Package 1: Bluetooth, no FM, no caller, host + 2P3P plug-in;
Package 2: Bluetooth no caller host + 2P3P plug-in;
Package 3: Bluetooth call-free host + small thin remote control + 2P3P plug-in;
Package 4: Bluetooth with call host + small thin remote control + 2P3P plug-in;
Package 5: Bluetooth call-free host + silicone remote control + 2P3P plug-in;
Package 6: Bluetooth with call host + silicone remote control + 2P3P plug-in cable;
Support breakpoint memory (if the USB flash drive or TF card is pulled out after about 3 seconds when power is pulled out, the power will be cut off when power is turned on again. If the power is cut off first, you can only remember the current song);

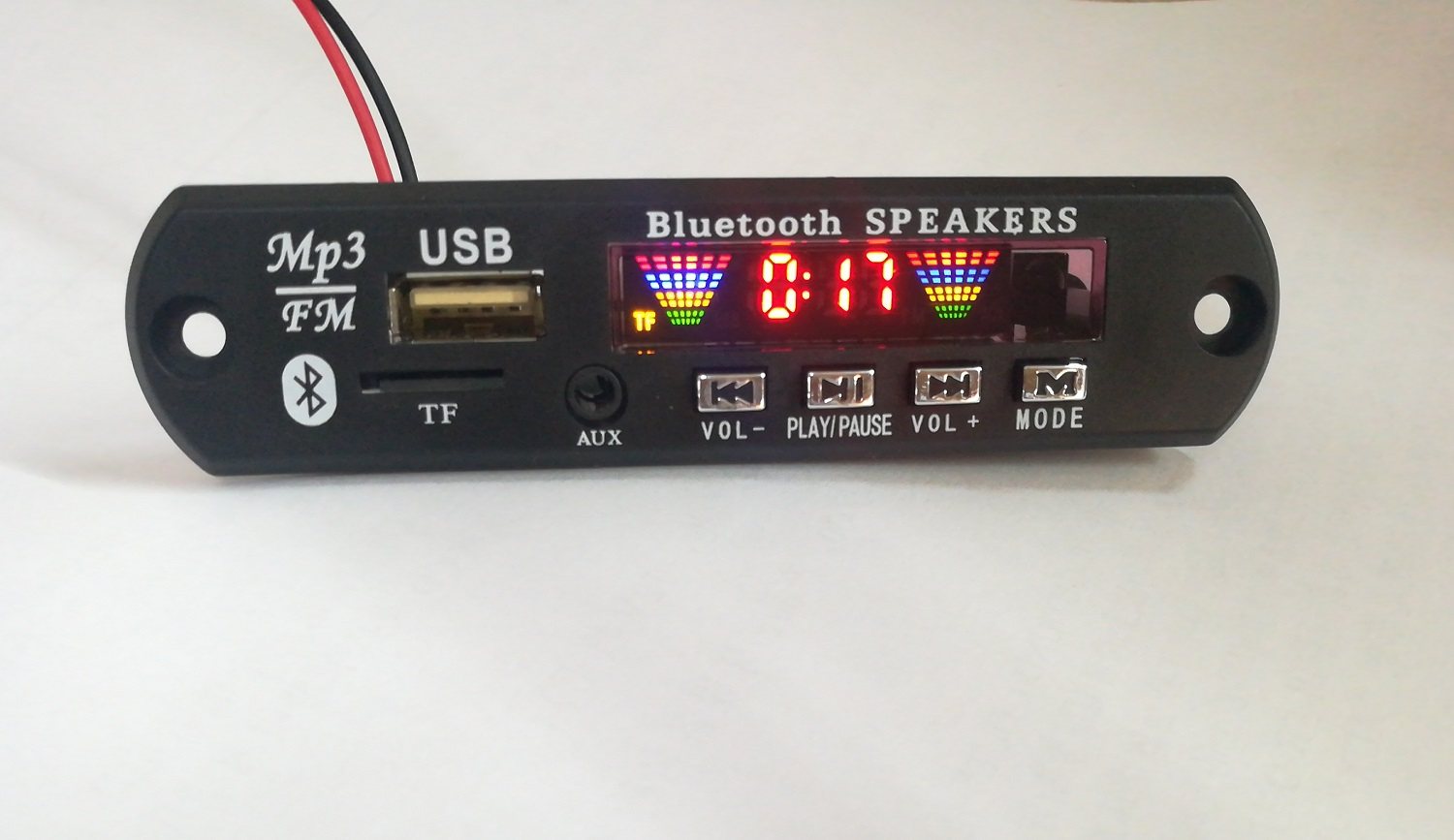

4 color frequency display; display is more dynamic;USB sound card function (using a pair of USB wires with data transmission is generally not available, one end is inserted on the computer and inserted on the surface of the face, the MP3 module will appear"PC"Two words; at this time, the computer can be transferred to the audio through the audio output of the module; you can also copy the music on the computer directly to the TF card on the module or delete the card of the card.If you need to insert a TF card, and then open my computer on the computer, there will be different tips for mobile hard disks or U disks and other computer systems.

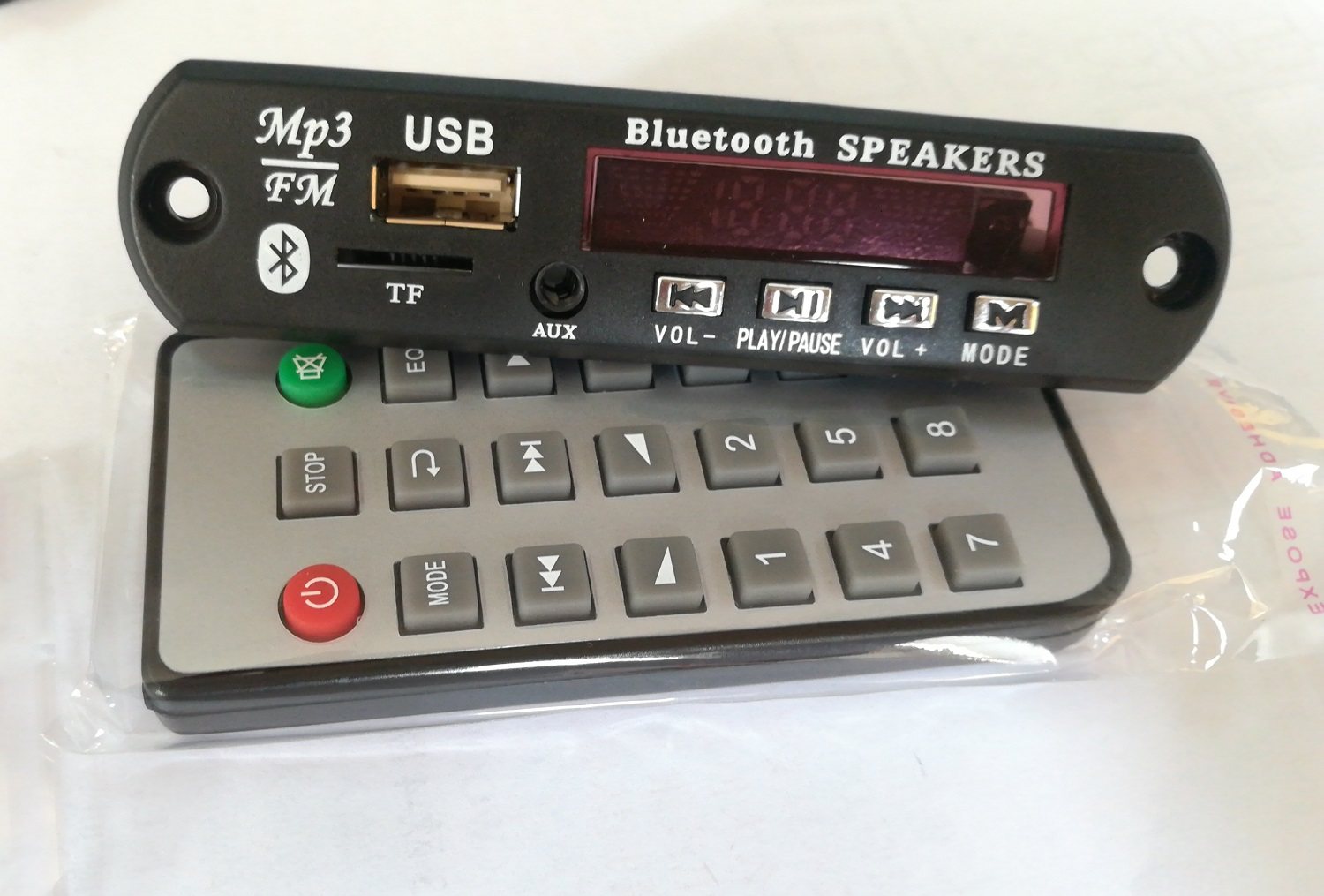

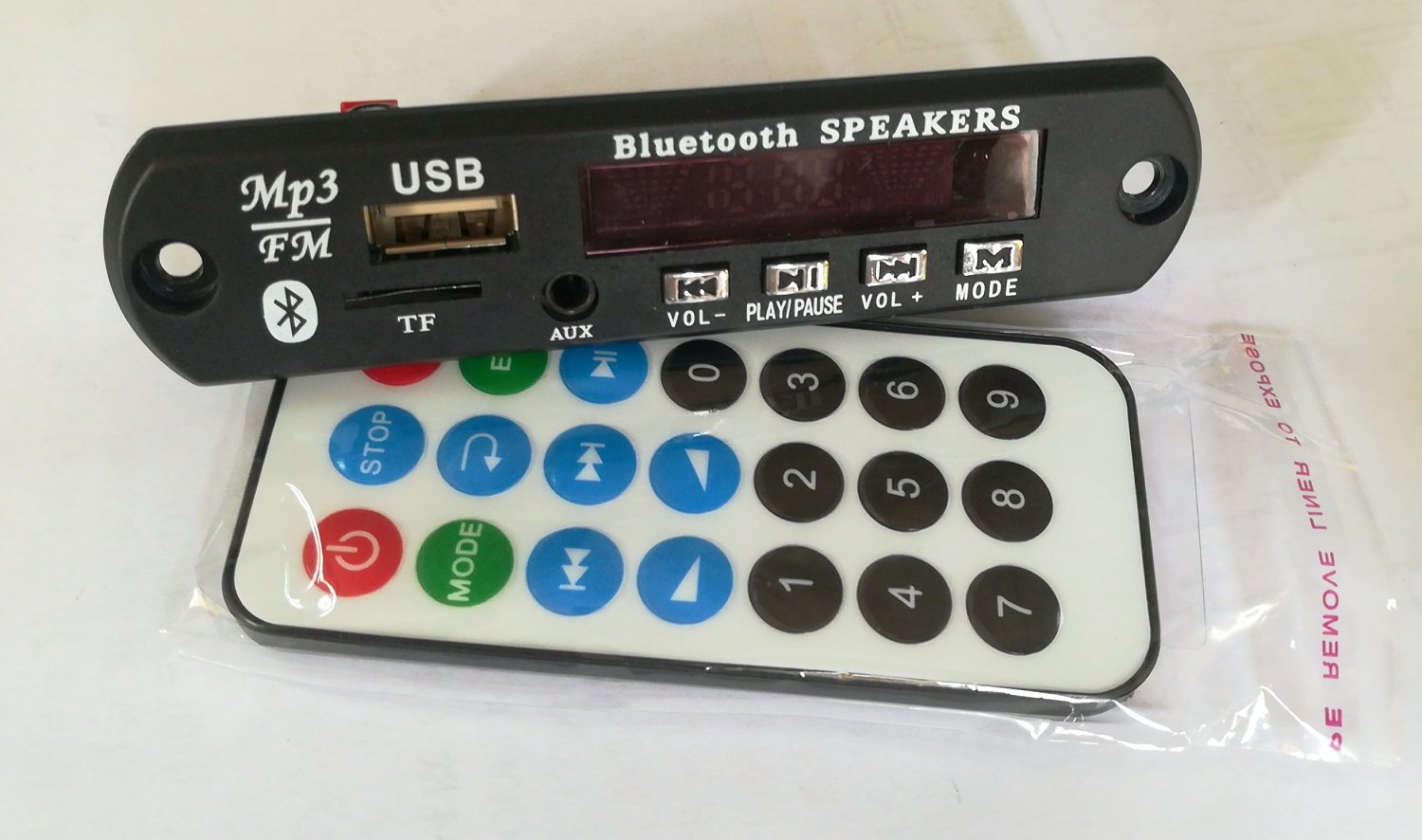

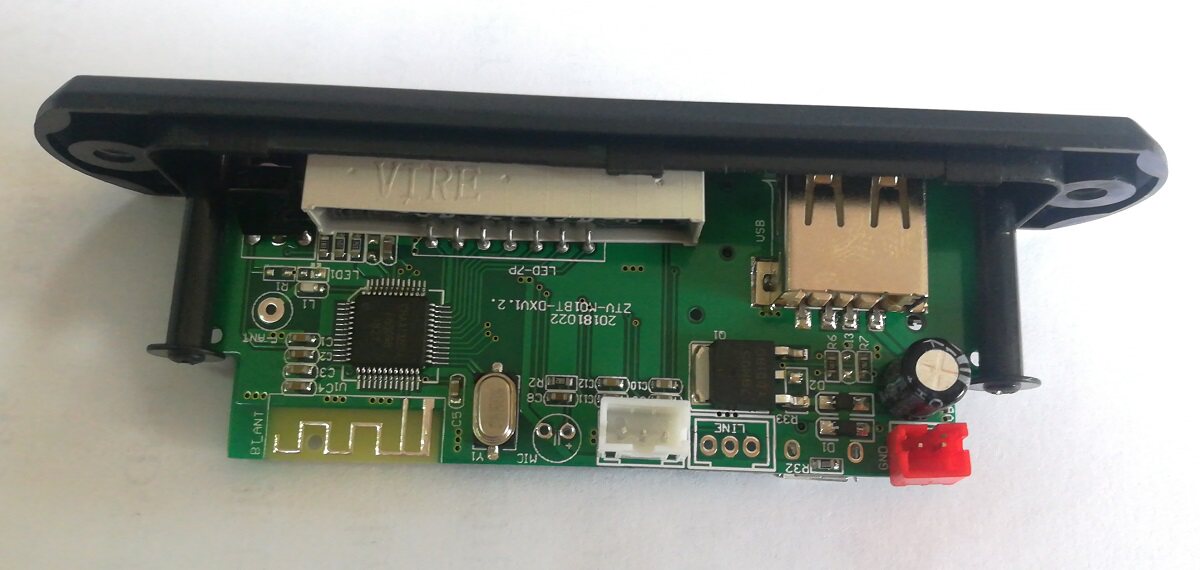

Model: M01BT; Panel 3.5AUX input Bluetooth MP3 decoding board Bluetooth module lossless MP3 Bluetooth decoder board; Panel size: 107MM*height 25MM*deep 38MM; opening: 83*20*38deep MM; installation hole spacing: 92MM;
Power voltage: Choose one of the two power inputs, do not connect the two channels at the same time; the 12V is the red sub DC DC 7V-12V; the 5V is connected from the back of the board, and the DC DC 4V-5V cannot be higher than 5V, so it can be used directly (the mini USB MICR0 cable head pair is convenient and practical, as shown in the figure).No AC AC voltage value can be connected;; Please learn more about the precautions below the picture before shooting.
Free shipping instructions: This store defaults to Shentong Express. If you cannot arrive, please make up the difference and indicate the price difference. Please check before you auction the product. If you cannot arrive, you will pay the other shipping fees incurred by yourself. Thank you for your cooperation.
Multifunctions: Supports mobile APP control, 4-color color screen display, and the effect is more touching;DC DC 12V and 5V mini 5P inputs, two-channel input optional/two-choice (The red seat is connected to DC 12V DC, and the mini USB behind the board is 5V input) Panel 3.5AUX input; USB/TF playback MP3 lossless APE/WAV and WMA/FLAC can also support folder selection playback; FM AUX ; Stereo Bluetooth, style with call can also be used to call without hands-free calls, DIY speakers and modified audio/car-mounted tools
Bluetooth: Baby and mobile phone pairing Wireless receiving mobile phones to play all format music. If your mobile phone supports a wide range of formats, there is no way of music you want to hear.
Panel size: 107MM*height 25MM*deep 31MM; opening: 83*20*31MM; installation hole spacing: 92MM;
Module characteristics:

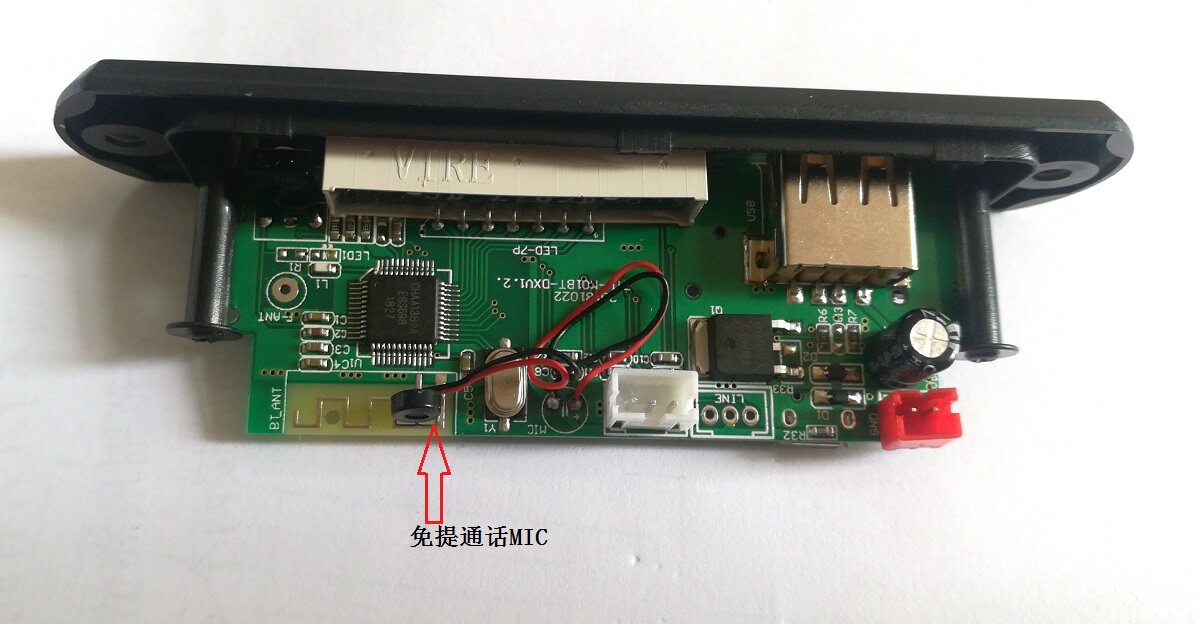

*Support Bluetooth+APP control and hands-free calls (After pairing with your baby and your phone is completed, you can wirelessly receive all formats of music on your phone. If your phone supports wide formats, it is not a problem for any format of music you want to listen to, and you can also answer hands-free calls and hear them when you call.“ Dudes—” and when the number is reported, please answer the call)
Call callback: Press the last call number for a short -press key under Bluetooth,
*Support folder selection playback-convenient for different music classifications to select the playback card/U disk puts the music classification different folders, DJ music/background music/nursery songs;Play panel long press the playback key, you can choose a folder playback (at the same time, there will be F001, F002, ..) on the screen
Cycle mode: Press” arrow or“RPT” symbol key: random (RAN)/single loop (ONE)/folder cycle (FOL)/full song cycle (ALL);Full song circular playback
*Support USB/card/bluetooth/fm/aux switch.Conversion prompts and calling numbers (Chinese and English options, the default of the delivery is Chinese, please leave a message in English)
*Support MP3/WMA/WAV format music.Mp3 song 32-320kbps, non -damaged APE/FLAC/WMA/WAV is an ordinary two -sound channel below 1411kbps
Support USB/card switching, previous song, next song, volume adjustment, EQ, play/suspension, stop,
Repeat, mute, shutdown, direct selection songs.
*Support Bluetooth Bluetoot last song, next song, volume adjustment, play/pause, mute.
*Support the power -off memory function: The songs and volumes played before the memory can be memorized to the current point.Break -point memory (Draw a USB flash drive or SD/TF card in about 3 seconds in the play state, and then call again at the time of the memory.Qu, can't remember it as a point)
(List of objects, see the package description for details)
Instructions:
Note: If you are not a smartphone (Android system), you need to enter the password -0000; the product Bluetooth device name M01BT
Instructions for installation and usage in APP:
When using Bluetooth APP, please turn off the mobile phone's own player. Secondly, pause playback and select songs, and use the APP to operate (no panel buttons or remote control); otherwise, two music will be played at the same time.

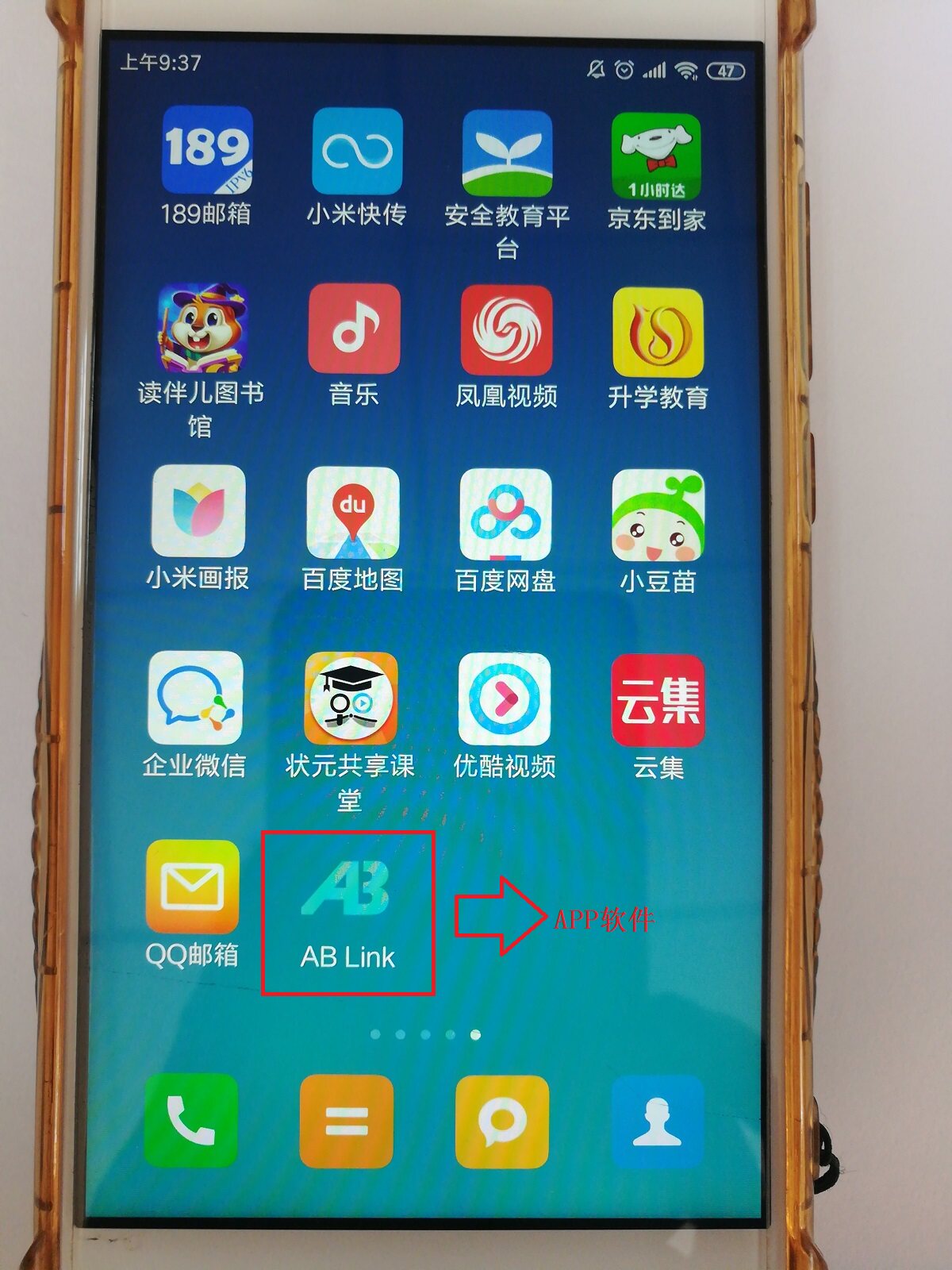

1) First in the mobile application market (such as“ Application treasure” etc.) Search“AB Link”, click to download and install it on your phone;

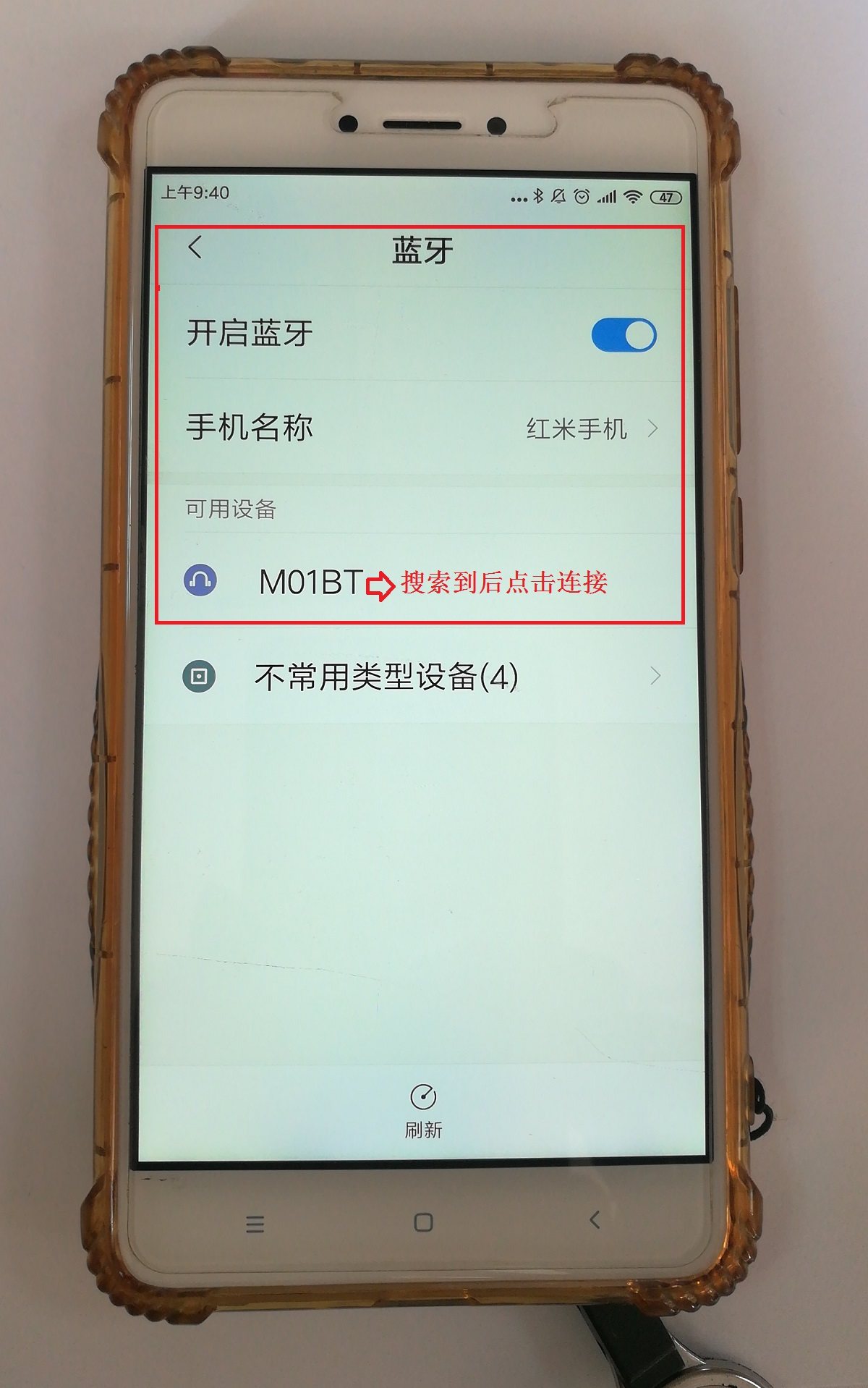

2) Press the MODE key on the decoding board to convert to Bluetooth (bluet), and also hear it“Beep, beep or prompt tone“Take the phone also to turn on the phoneBluetooth detectability so that the phone is detected by the device, and then enter the Bluetooth menu - search for the device or paired device, search for (M01BT)“ touch pairing” I also heard it“ Dudes&rdquo: "Sound pairing is completed; if you are not a smartphone (Android system), you need to enter the password -0000, the product Bluetooth device name M01BT;
3) Return to the mobile APP interface, double-click the software to open it and scan and search it.“Bluetrum"Click to connect, if there are two“Bluetrum", To connect one of them in both points); after the connection is successful, the main interface of the APP is returned4) When clicking the corresponding menu on the phone, the product will enter the corresponding mode (the light control and timing are not open for the time being)
5) Enter the Bluetooth mode

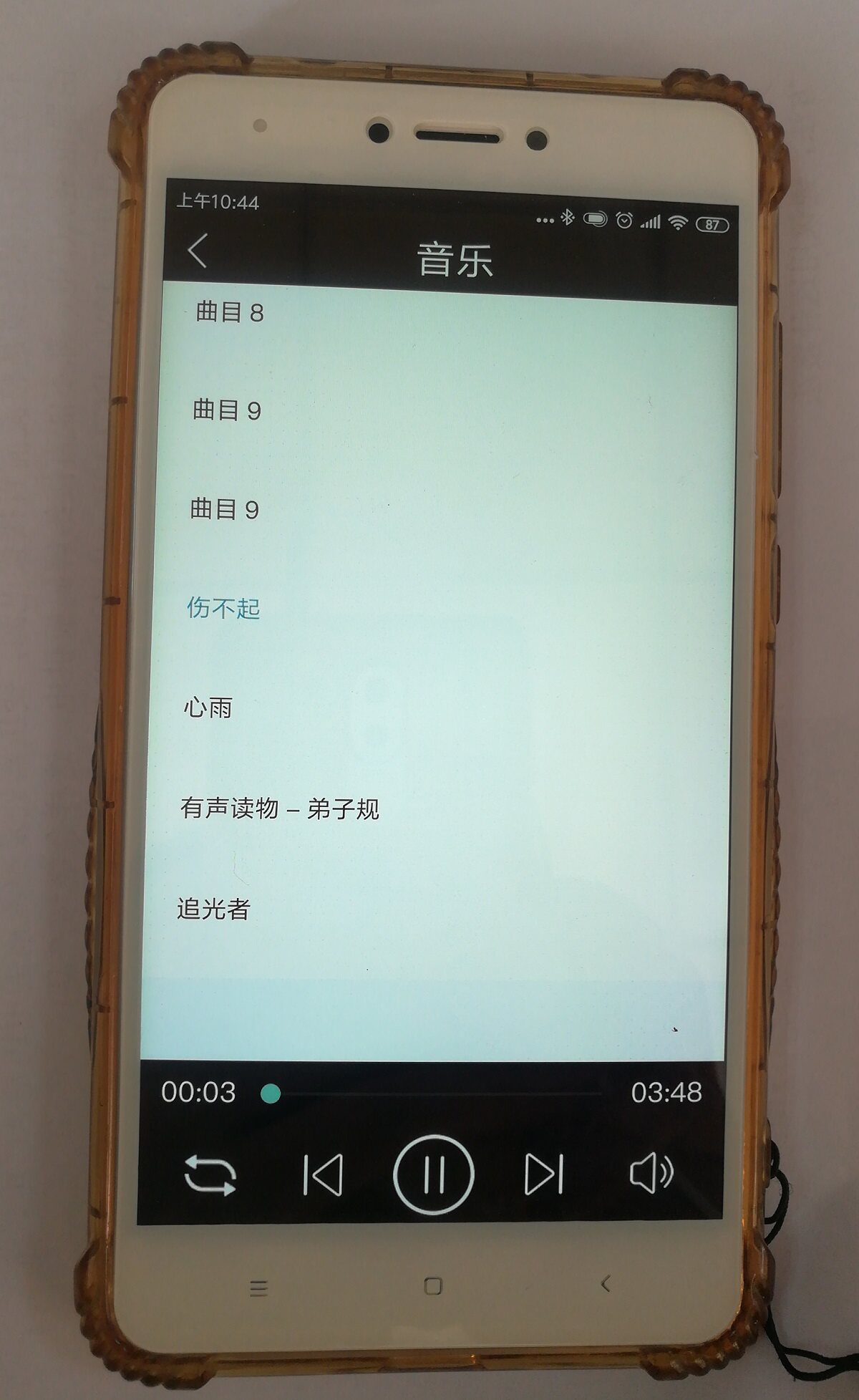

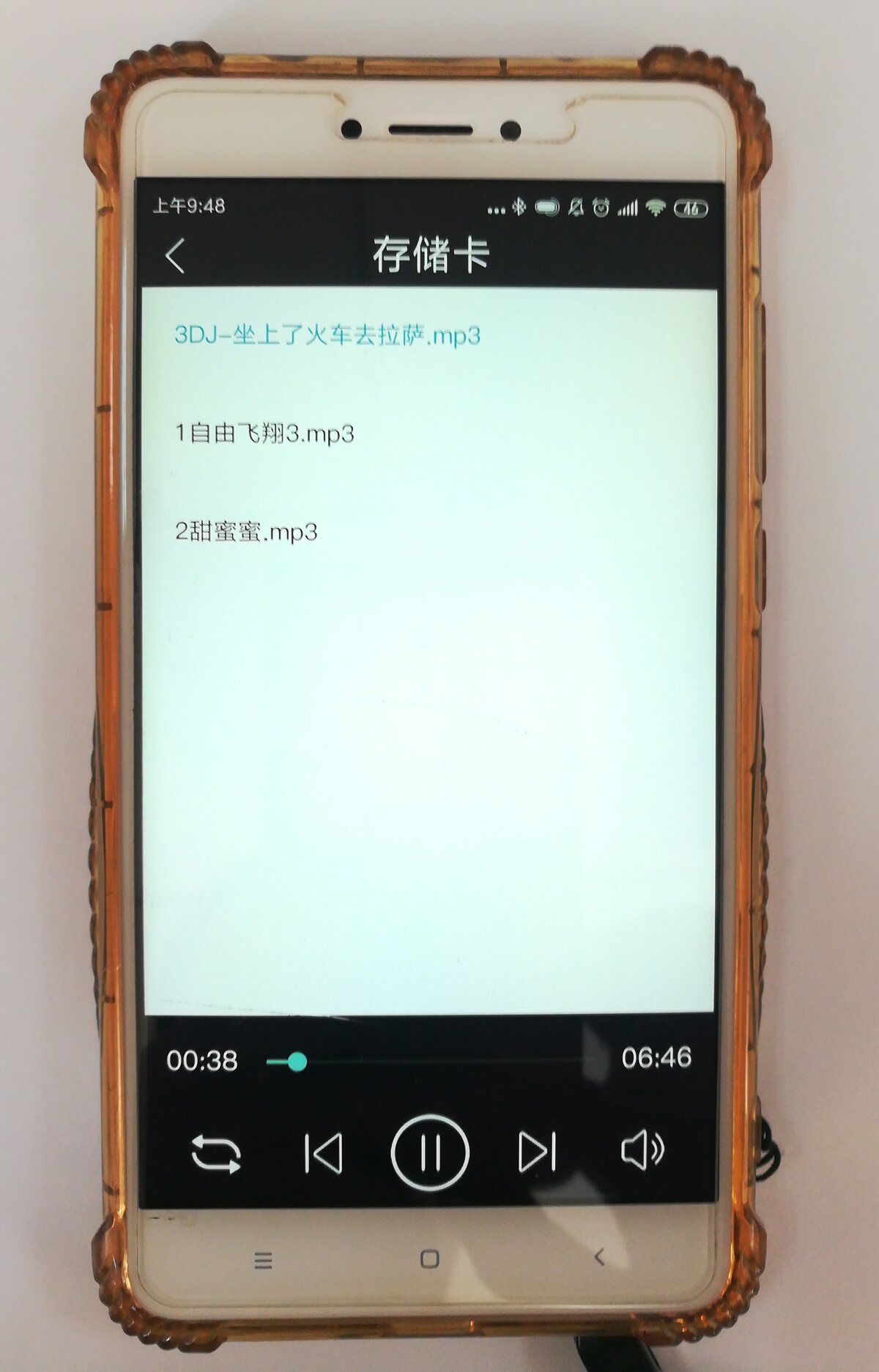

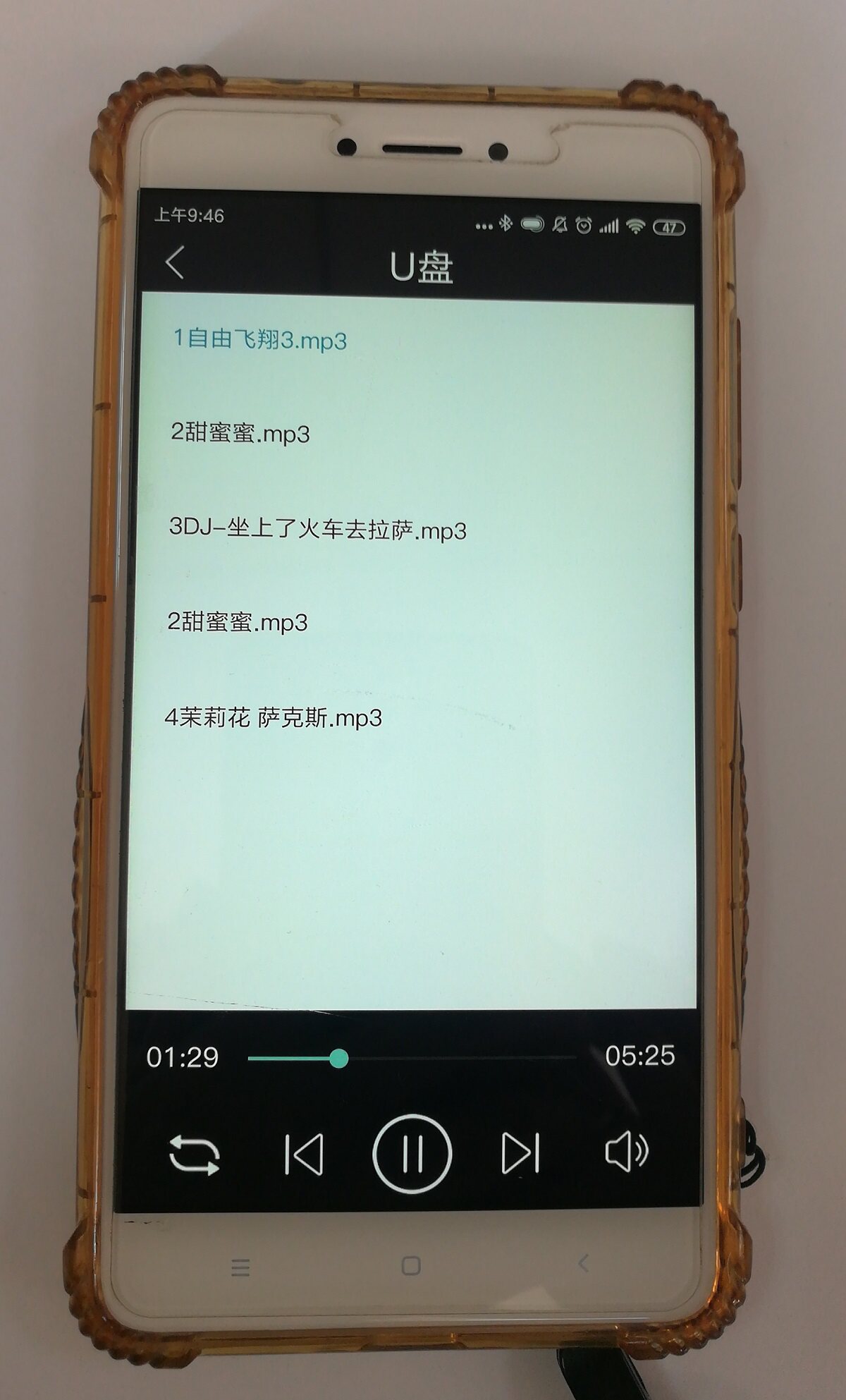

6) U disk or TF device mode

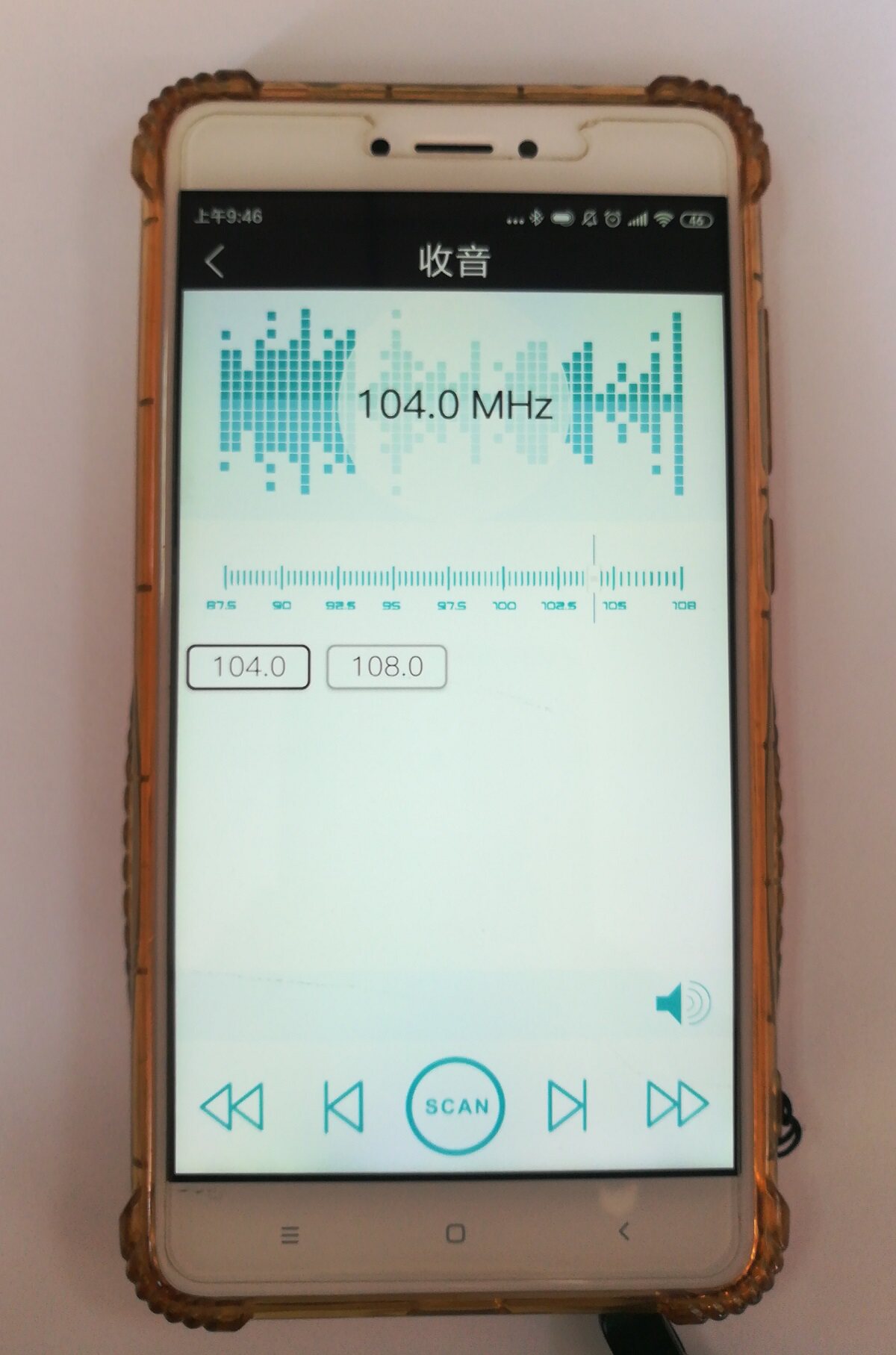

7) radio mode
8) External audio AUX input9) Sound effect (open function);Volume control (startAPPLater, when the connection is connected to play, the main menu is returned to the current state of the playback mode. There is a small speaker in the lower right corner, and then click the speaker to adjust it)
Note for special attention:
1: Work voltage 12V: DC DC 7V-12V, 5V (Mini 5P input): 3.7V-5V; current 800mA-1A.If the current is not enough, there will be a phenomenon of jumping or remote control or unable to read Bluetooth abnormalities (if you have this problem, please check your power supply); the voltage cannot be higher than the maximum voltage range required for the product, otherwise it will damage the main chip and related components.
  2: Module power areas and signal places are separated, and there are separate resistors to be more convenient for different power amplifiers to choose from (see the 0 Euro resistance place on the board), and the existing delivery has been connected by 0 Euros.Individual amplifiers will have noise. It is recommended to use a power supply to power the decoding board when used."AGND"and"GND"The R32 0 ohm resistor) must be turned on here before wiring (operating when the power is turned off); there are also wiring or other problems in this aspect or other problems that are not understood or are not handled well, you can contact us at any time)
For Tao You who does not grasp the power supply, in order to allow the product to play the effect normally, it is recommended to use our power supply to support it. You can put the power and the host into the shopping cart.https://item.taobao.com/item.htm?spm=a1z10.5-41155555590.zm8ekj&id=38921024791
Special attention two:
Care modification note
&Intersection
If you are modifying on a car, when looking for the audio signal line in the CD machine and are not sure which line is the audio input, it is recommended that each of the left and right audio output lines of the decoding board is connected in series with an electrolytic capacitor within 10UF to protect the decoding audio output module (if you need to receive the message, you will provide the electrolytic capacitor for free, and no comments will be provided)
Three: Family modification pay attention to
power supply
A: It should be noted that the DC power supply that is connected from the original power amplifier is to connect the rectification; the power is not directly connected to the transformer or before the rectifier.Can't directly power the decoding board, this will burn bad products)
B: The power supply needs to be flowing in full wave, and the filter has a capacitor of more than 1000UF to power the decoding board.If the power supply that is not filtered well has a direct effect on the radio and decoding sound quality
Regarding the problem of vehicle audio interference (common ground category), in terms of the car condition, it can be treated as follows
C: If you are not taken on the CD circuit, you can add a DC-DC to isolation power.
D: A audio output is added with a 1: 1 isolation audio transformer (note that it is a special transformer for audio).
E: Pick up the BA3121 circuit (noise reduction circuit)
Four: The principle of audio wiring of vehicles and home modification:

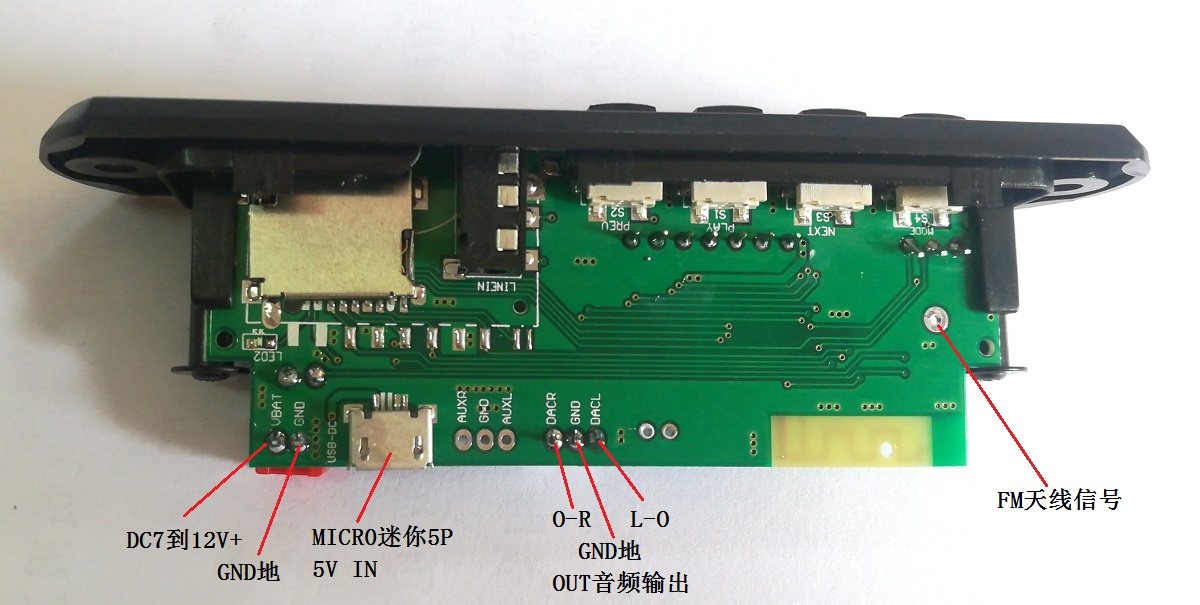

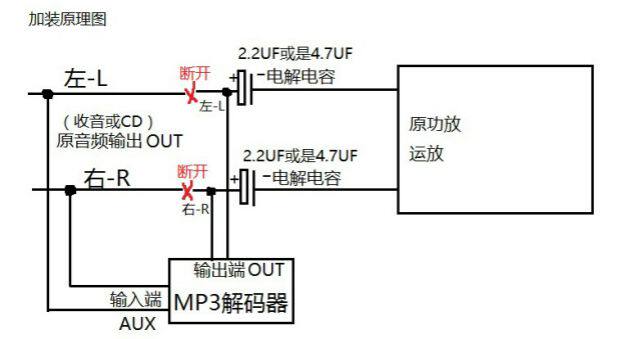

A. Audio cable wiring board: decoding board audio output“R-OUT/GND/L-OUT”It is the audio input that comes to your amplifier“R-IN/GND/L-IN&rdquo: "Contact correspondingly; then the audio source on your original amplifier must be disconnected. The audio output of the non-decoding board and the audio source of the original amplifier are connected to the amplifier in parallel. In this way, the power-on operation will burn the chip or other components; if you need to connect other audio sources, you must terminate the audio source signal to the audio input of the decoding board. Remember!!
B. Connect with 3.5 audio cable: audio output on the decoding board“R-OUT/GND/L-OUT&rdquo“3.5 audio cable”Connect directly and plug it into your amplifier or car“AUX&rdquo: On the hole, this is the easiest and most convenient wiring method. It is recommended to use this connection method
