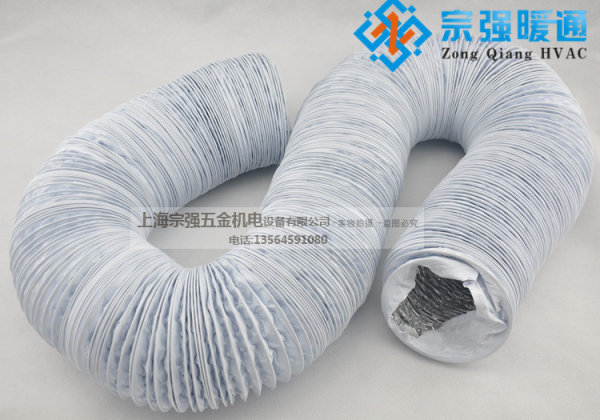

【Baby physical map】
【product description】
This product is made of PVC film wrapped around the steel wire and is coated with an anti-corrosion film. Suitable temperature: -20℃-80℃ Maximum air flow rate: 30m/s, maximum working pressure: 2500Pa, the product is suitable for exhaust systems containing corrosive gases such as acid and alkali.Advantages: High strength; can be bent at will, without hard elbows, which can reduce air resistance; integrated molding, small air leakage; can be corrosive gases such as acid and alkali, and are not easy to age.
【Product Parameters】

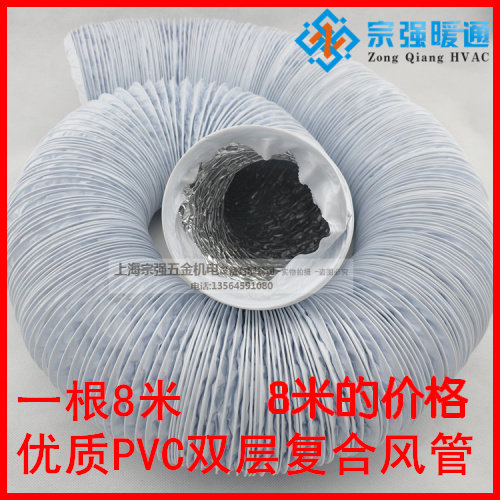

〉model:TC-PVC100
〉the inside diameter of:φ4「(100mm) For other specifications, please click the following link:http://zqnt.taobao.com/?search=y&keyword=PVC
〉Length: 8m (actual length is between 7.5m~8m)
〉Temperature resistance:-20+80 ℃
〉Material:High flame retardant pvc film, silver-gray(Other colors can be customized)
〉Steel wire:0.8mm, 72# carbon steel wire(Can be customized according to customer requirements)
〉spacing:33mm to 35mm(Can be customized according to customer requirements)
〉Shrinkage ratio:10:0.4
〉Product Features:It has good elasticity, flame retardant, acid- and alkali-resistant, corrosive gases, anti-aging, low-cost and practical, easy to construct

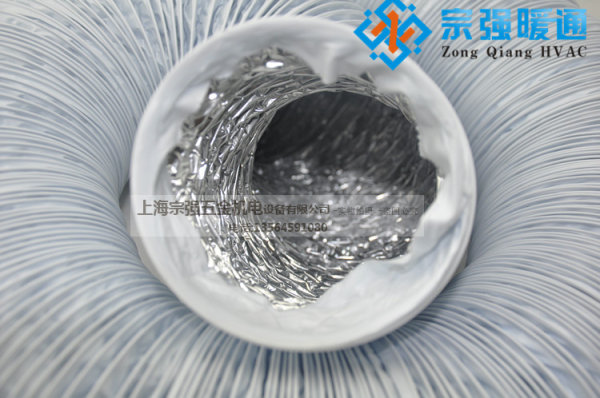

structure:Two layers of high flame retardant PVC films on the upper and lower sides, and the elastic carbon steel wire is pressed through a temperature of 400°C.
【Product Usage】
Various mechanical equipment (various dryers, ovens, injection molding machines, high-temperature ironing). Factory buildings, automobile exhaust, bathrooms, electronic factories, sewers, shipyards, refrigeration, environmental protection. Exhaust smoke, moisture, dust, high-temperature gas, powder extraction, ventilation, etc.It has anti-static, acid and alkali resistant, chemical waste gas, flame retardant, wear-resistant, pull-resistant and arbitrary telescopic universal transformation functions. Welcome to call to negotiate and order.
【installation method】
Step 1: Put the clamp on the pipe for later use (air-conditioning ties are also available)
Cluster link:http://item.taobao.com/item.htm?id=10186410121&
Step 2: Tear apart the aluminum foil tube wire one or two
Step 3; The torn steel wire is wrapped around the check valve, the outer ring of the air outlet is fixed with aluminum foil belt
Air outlet link:http://shop58918504.taobao.com/?search=y&orderType=_hotsell&viewType=grid&baobei_type=&keyword=%B3%F6%B7%E7%BF%DA&price1=&price2=
Step 4: Use the entire aluminum foil tape or waterproof tape to stick it for a few times (remember to stick it in the tear to prevent air leakage)
Step 5: Secure the clamp sleeve (or air conditioning tie) in the air outlet
One corner of the manufacturer
