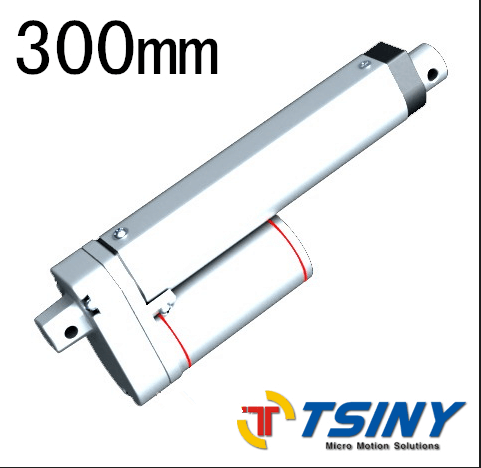

Electric engine, 300mm, 220v, 12v, 24v

Product information

Code 43976356902
Status: New
In stock: 858 PCs
Approx weight: 0 kg
Price per 1 piece :
38.77 $2.63 $
Local delivery:
0.00 $
Quantity: + -
Minimal lot:
Total:
2.63 $
Add to cart

Add to favorites

Vendor info

Name: 中胜xiesheng
Shop name: 微型推杆工厂直销店
Shipping estimate: 4.9
Goods valuation: 4.9
Service evaluation: 4.9
Add vendor to favourites
Rating:
Model: Electric putter;
Brand: Electric putter;
Place of origin: Chinese mainland;
Rated voltage: 12V;
Air load speed: 90mm/s;
Rated tension: 1000N;
Rated thrust: 1000N;
Schedule: 30cm;
Full load speed: 5mm/s;
Original description

journey Voltage Speed ​​Negative Gravity You can confirm what it is.I know which specification it is. Relatively speaking, the faster the speed, the smaller the thrust.The two are the opposite.If you need to fix the bracket and power controller, contact customer service.

The itinerary can be customized and will not affect the progress of work due to the long wait caused by customization. Payment before 2:00 on the same day and delivery can be arranged on the same day. This electric push rod has the advantages of low price, high thrust and high cost-effectiveness.

 Product name: DC electric push rod
Technical Parameters:

1. Rated power: 20W Maximum 30W

2. Permanent magnet DC motor drive; voltage: 12V, 24V, 36V, 48V,

3. There is a stroke limit switch at both ends of the push rod. After the telescopic rod runs to the bottom or to the top, it will automatically disconnect the power.The motor will not idling.

4. The push rod is driven by a DC motor and driven by a screw.The telescopic rod can only telescopic and not rotate.

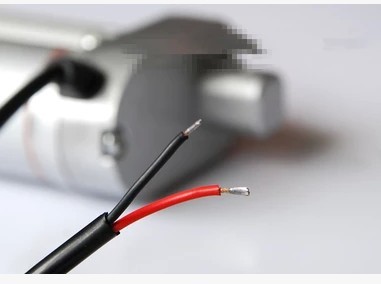

5. The motor is positive and negative poles.For example, the positive electrode extends and the negative electrode shrinks.Change the direction of the rod to expand and retract.

6. Ambient temperature -26℃ to +65℃.


7. Standard protection level: IP66.

8. Low noise design, noise level is less than 42dB.

9. The putter warranty period is one year, and returns are not supported if there is no quality issue.The machine may not be disassembled and installed without permission.

10. Push rod material: aluminum alloy.

11. Product function: drive other objects to push, pull, raise, and lower

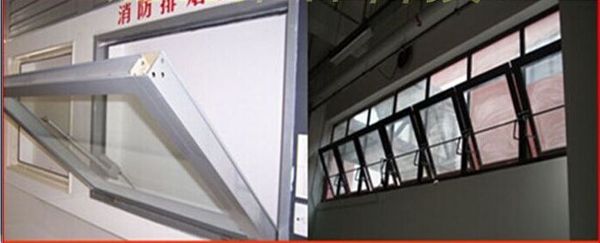

12. Product application scope: TV lifting platform, massage table, electric bed, medical chair, electric equipment, micro equipment, electric sofa, camera rack, cameraetc.
Material description: The shell is aluminum alloy, and the screws are stainless steel screws. We choose good materials, and the workmanship is good. The real objects look very exquisite. The pictures of our products are taken in real objects without any treatment!

Technical parameters of permanent magnet DC electric push rod







After -sales service:

1. The motor coil is burned without warranty
2. Motor gears and other accessories are damaged, free warranty, and the warranty period is one year (from self-portrait payment)
3. The round-trip express fee for the motor during warranty shall be borne by the buyer, but the seller shall not bear it.
