Brand: Bay Model: GST-LD-D02

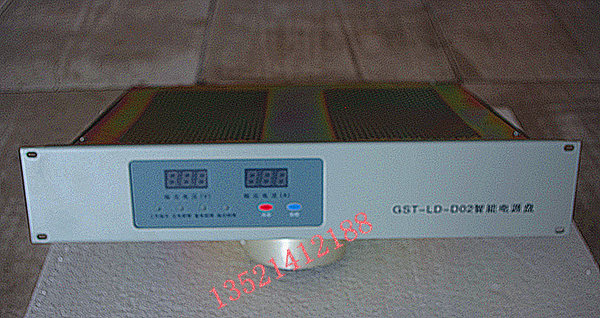

The real shot is as follows:



Product parameters:
Product Brand: Bay
Product model: GST-LD-D02
Working voltage: main power is AC 220V+10%-15% V
Dimensions: 484mm*89mm*325mm
Relative humidity:≤ 95%, no exposure
Ambient temperature: 0℃~+40℃ ℃
color: White
Dimensions: 484mm*89mm*325mm
Features
The GST-LD-D02 smart power disk is composed of three parts: DC conversion circuit, spare power floating charging control circuit and power surveillance circuit, which is specially powered by the entire fire linkage control system.
The GST-LD-D02 smart power disk uses AC 220V as the main power supply, and can also be connected to an external DC 24V/24Ah battery as the backup power supply.When the backup power supply is normal, the main power supply is charged. When the on-site AC power is out, the backup power supply is automatically imported to power external devices.The intelligent power disk can alarm the main power failure and output failure. When the AC 220V main power supply is powered off, the main power failure will be reported; when the output is short-circuited, the output failure will be reported when the output is short-circuited, the output current is greater than 8A.It also has battery overcharge and overdischarge protection functions.The power monitoring part is used to indicate which power supply is currently being used, the voltage value of the AC input and the output voltage value, as well as various faults and status displays.In a system with a cabinet-type fire alarm controller (linkage type) as the control core, this power disk can be used as the power supply of the linkage control system.
