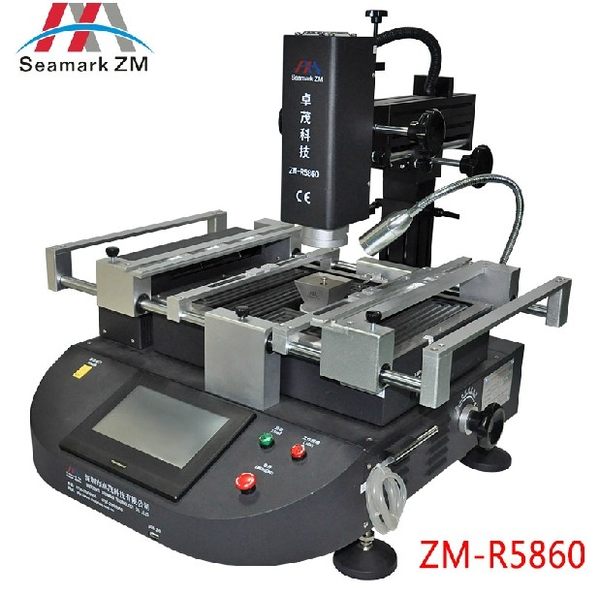

Free shipping Zhuo Mao returned to repair Taiwan ZM-R5860 ZM-R5860 Infrared Return to repair the restaurant to buy

● Independent three-temperature zone temperature control system

① The upper and lower temperature zones are hot air heating, and the IR preheating zone (350×260) is infrared heating, and the temperature is accurately controlled in±At 3℃, 6-section heating and 6-section constant temperature control can be set at both upper and lower temperature zones, and 50 sets of temperature curves can be stored, and can be called according to different BGAs at any time;

② The BGA chip and PCB board can be heated locally at the same time, and the bottom of the PCB board can be heated with a large area of ​​infrared heater, which can completely avoid deformation of the PCB board during the rework process; by selecting the upper or lower temperature zones can be used separately, and the energy of the upper and lower heater is freely combined;

③ The IR preheating zone can adjust the output power according to actual requirements, so that the PCB board can be heated evenly without deformation;

④ The external temperature measurement interface realizes precise temperature detection, and can analyze and proofread the temperature curve of the actual BGA collected at any time;

● Multifunctional and user-friendly operating system

① The machine adopts the human-machine interface of Taiwan touch screen, PLC control, and uses high-precision K-type thermocouple closed-loop control. The real-time temperature curve is displayed in the touch screen, and can store multiple sets of user temperature curve data; the upper temperature zone can be manually moved forward, backward, left and right directions, and the lower temperature zone can be manually adjusted up and down;

② It is equipped with various alloy hot air nozzles, which can be 360°Rotating, easy to replace, can be customized according to actual requirements; ③ It is equipped with red dot positioning function, which can quickly locate the PCB board;

④ Multifunctional PCB positioning bracket, which can move in X direction, makes the PCB board positioning convenient and fast, and is suitable for installation and positioning of opposite-sex boards;

⑤ Use a high-power cross-flow fan to quickly cool the PCB board to prevent deformation of the PCB board; at the same time, a built-in vacuum pump and an external vacuum suction pen are built-in to facilitate and quickly pick up the BGA chip;

⑥ The machine comes with a USB port, which can quickly download the temperature curve

● Superior safety protection function

It has an alarm function after welding or desoldering. When the temperature is out of control, the circuit can be automatically powered off and has a dual overtemperature protection function.The temperature parameters are protected by password, which prevents arbitrary modifications and other security protection functions. They have superior security protection functions to ensure that PCB and components are damaged and the machine itself is damaged in any abnormal situation.

 ZM-R5860Main parameters of the repair station

● Power supply: AC220V±10 % 50/60Hz
● Power: Max 4800 W
● Heater power: upper temperature zone 800 W lower temperature zone 1200 W IR temperature zone 2700 W
● Electrical material selection: PLC programmable controller + true color touch screen + high-precision intelligent temperature control module
● Temperature control: K-type thermocouple closed-loop control
● Positioning method: V-shaped card slot PCB positioning
● PCB size: Max 410×370 mm Min 20×20 mm
● Dimensions: L635×W600×H560 mm

● Machine weight: 45 kg

Gift gift package products The list is as follows:
1. Imported BGA welding oil                              *1
2. Large bottle of 0.5 tin beads (125,000 pellets)       *1
3. Large bottle of 0.6 tin beads (125,000 particles)       *1
4. Small vial 0.4 spheres (30,000 pellets)           *1
5.Video 0.45 spheres (30,000 pellets)         *1
6. Small vial 0.76 spheres (30,000 pellets)         *1
7. Tin-sucking belt GOOT3515 imported              *5
8. Thickened and lengthened aluminum foil                         *1
9.140 pieces 80*80 large steel mesh                  *1
10. Universal bead planting platform                       *1
11. Special tool box for maintenance                       *1
12. Notebook repair information 2DVD               *1
