Features
1. Long size:28mm XWidth12mm XHigh 10mm
Second, work voltage: DC 3.3-5.5V
Fourth, characteristics:
1. Humidity measurement range: 0 --- Rh
2. Humidity measurement accuracy: ± 2%RH
3. Temperature measurement range: -40 --- 80 ℃
4. Temperature measurement accuracy: ± 0.5 ℃
5. Work voltage: DC5V commonly used
6. Single bus digital signal output, two -way data of serial port data;

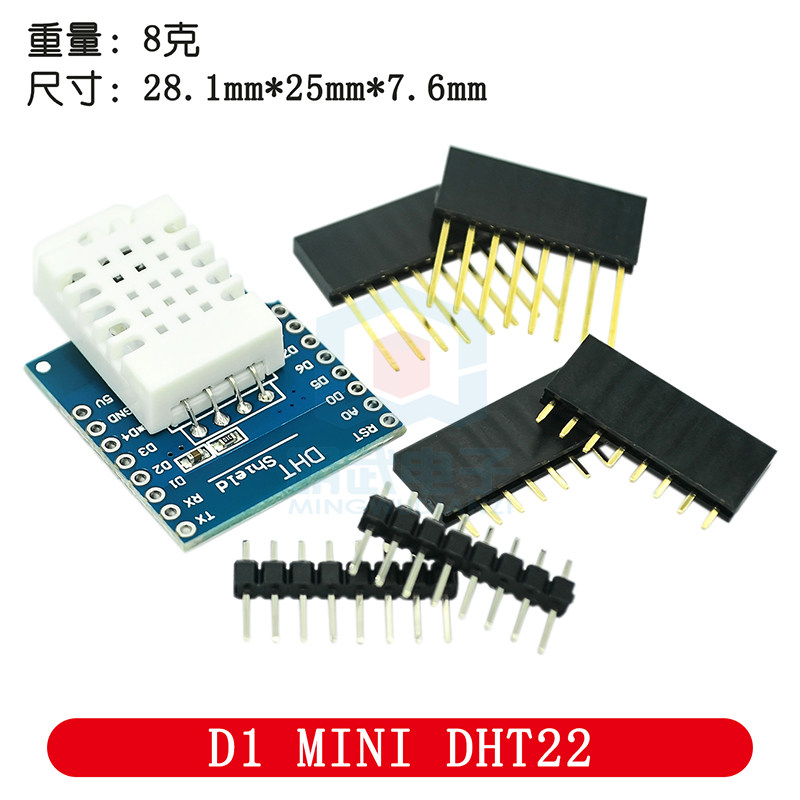

DHT Pro Shield for D1 MINI DHT22 SINGLE-BUS Digital temperature humidity sensor
Technical specifications:
Temperature: 40 ～ 80 ° (0.5 °)
Humidity: relative humidity (RH 0-99.9 ± 2%

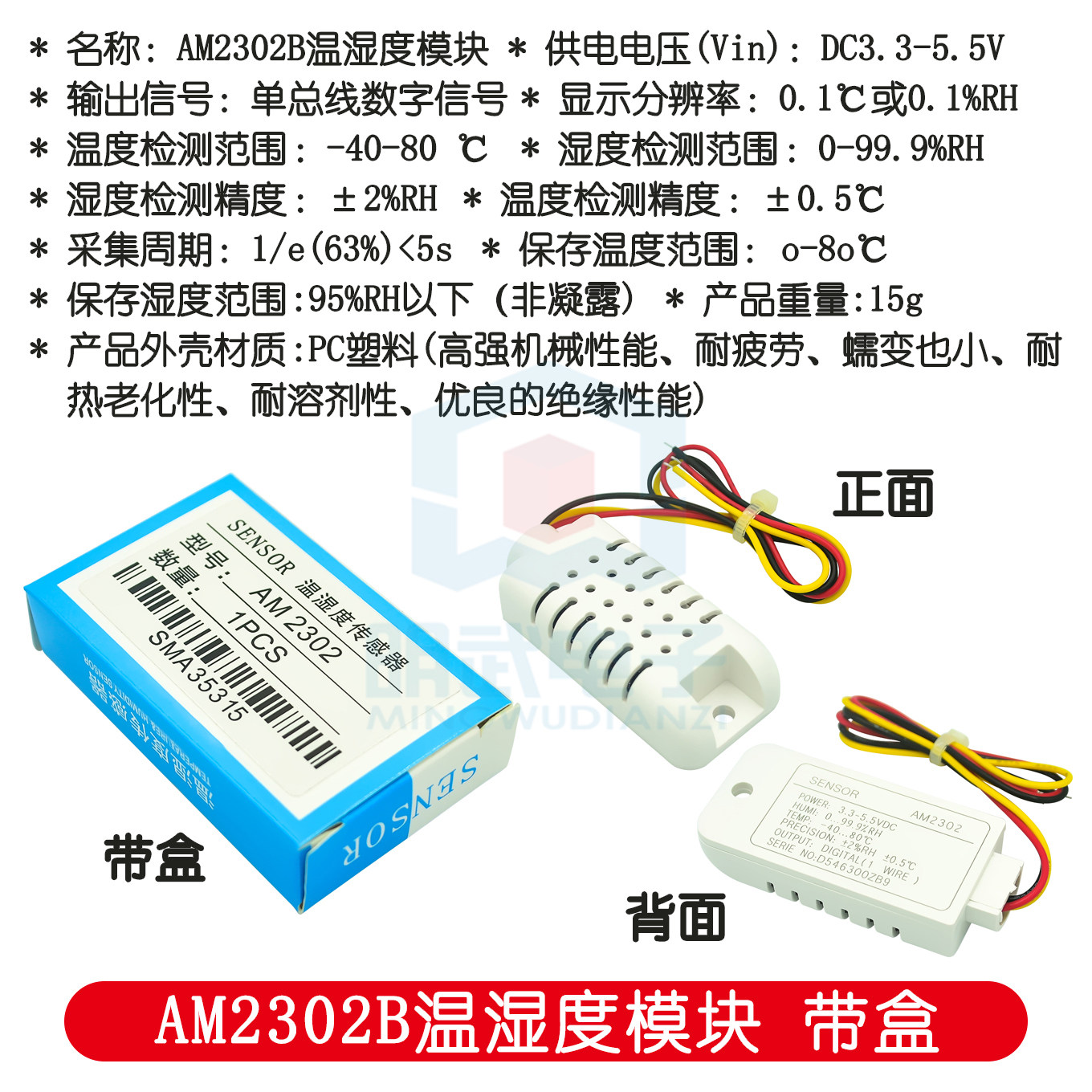

1. Product overview
AM2302 Wetmine capacitance digital temperature humidity module is a temperature and humidity composite sensor containing its own calibration digital signal output.It uses dedicated digital module collection technology and temperature and humidity sensing technology to ensure that the product has high reliability and long -term stability.The sensor includes a capacitive sensor wet component and a high -precision temperature measurement element, and connects to a high -performance 8 -digit single -chip microcomputer.Therefore, the product has the advantages of quality, ultra -fast response, strong anti -interference ability, and high cost performance.Each sensor is calibrated in the extremely humid school laboratory.The calibration coefficients are stored in a single -chip microcomputer in the form of a program. The inside of the sensor must call these calibration coefficients during the processing of the detection signal.Standard single bus interfaces make the system integration simple and fast.The super small volume and extremely low power consumption, the signal transmission distance can reach more than 20 meters, making it a good choice for various types of applications or even harsh applications.The product is 3 lead (single bus interface) connection.Special packaging forms can be provided according to user needs.
2. Application scope
HVAC, dehumidifier, testing and testing equipment, consumer goods, car, automatic control, data recorder, home appliance, humidity regulator, medical, meteorological station, and other related humidity detection controls.
Third, product bright spots
Ultra -low energy consumption, long transmission distance, all automation calibration, capacitive wet sensitivity components, complete swap, standard digital single bus output, long -term stability, high -precision temperature measurement element.
Fourth, product parameters
Size: 40*23mm
Weight: 4G
Voltage: 5V
Port: Digital two -way single line
Temperature range: -40-80 ℃ ± 0.5 ℃
Humidity range: 20-90%RH ± 2%Rh
