Product Usage

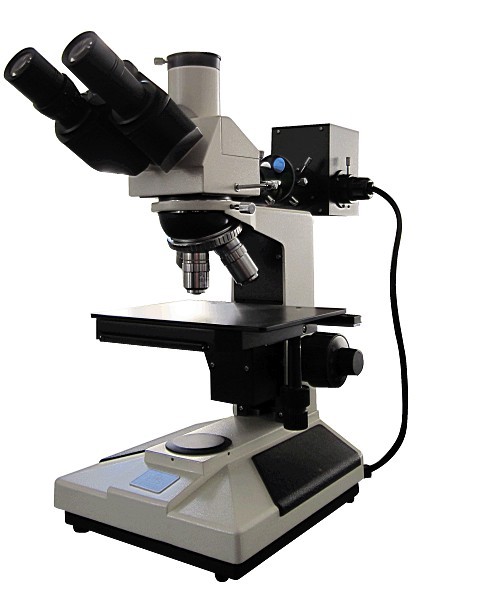

The metallographic microscope is suitable for microscopic observation of opaque objects.This instrument is equipped with an epilight illuminator, a long-distance flat-field achromatic objective lens (without coverslip), a large-field eyepiece and a built-in polarized observation device. It has the characteristics of clear image, good contrast, and easy operation. It is an ideal instrument for metallography, mineralogy, precision engineering, electronics and other research.Suitable for use in schools, scientific research, factories and other departments.
Performance characteristics
*Configure large field eyepieces and long-distance flat field achromatic objective lens (no coverslip), with large and clear field of view.
*Coarse and micro-moving coaxial focus mechanism, thick and flexible elasticity can be adjusted, with limit locking device, micro-moving grid value: 2μ m.
*6V 20W halogen lamp, adjustable brightness.
*The three-eye lens barrel can be switched freely to normal observation and polarized observation, and can perform 100% light-transmitting photography.
Technical specification
Technical specification
1. Large field of vision eyepiece: Eyepiece 10X (φ18 mm)
2. Eyepiece barrel: tilt 30? (built-in polarization detector, can be switched)
3. Long-distance flat field achromatic objective lens (no coverslip):
a. Magnification: PL5X, PL10X, PL40X, PL60X (spring)
b. Numerical aperture (NA): 0.12, 0.25, 0.60, 0.75
c. Working distance (mm): 18.3, 8.9, 3.7, 0.96
4. Focusing mechanism: rough and slightly moving coaxial focus, micro moving grid value: 2μm, adjustable in rough and moving elasticity, with locking and limiting device
5. Cursor grid value: 0.1mm
6. Ectro-illumination 6V20W, halogen lamp, adjustable brightness, epi-illuminator with field of view light rail, aperture light rail, polarization
7. Stage: Double-layer mechanical mobile type (size: 186mm*142mm, moving range: 75mm*50mm)
Standard imaging configuration parameters:
1. Adaptive lens: diameter: 59mm, magnification: 0.5 times , internal focus distance: 0~3mm Closed after focusing
2. Camera: High-speed USB2.0 interface, up to 480Mb/s
Sensitivity: 1V/lux-sec (550nm)
Pixel Size: 2.2μm x2.2μm
White balance: automatic/manual one-click white balance, Frame rate: 40fps
Image collection resolution format: 8 formats are supported Maximum acquisition resolution 2592*1944
Software functions: image display, image shooting, video recording and image processing functions
Basic image software parameters:
1. Add a double ruler to the picture
2. The picture can be added with text function
3. Synthesize and save images, rulers and texts
Complete set of instrument
1. Microscope: 1
2. Observe eyepiece tube: 1
3. Flat field achromatic objective lens 5X, 10X, 40X, 60X: 1 each
4.WF10X eyepiece: 1 pair
5. Halogen lamp 6V20W: 1
6.0.5x adapter: 1
7.YH-3001 camera: 1
8. Random file: 1 copy
Purchase
1. Eyepiece: 12.5X eyepiece; 10X microscope, microscope (grid value: 0.01mm)
2. Long working distance metallographic objective: 20X, 50X, 80X, 100X (dry)
3. 5 million or 9 million digital cameras
4. Digital adapter lens, digital camera
5. Professional research-level image analysis software and computer
