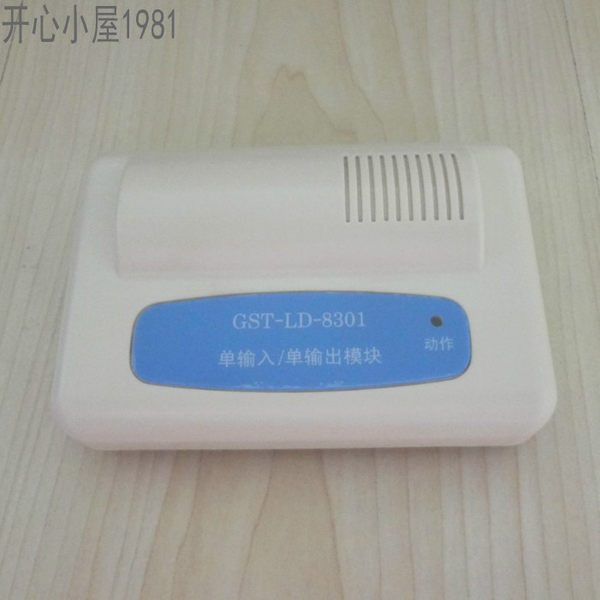

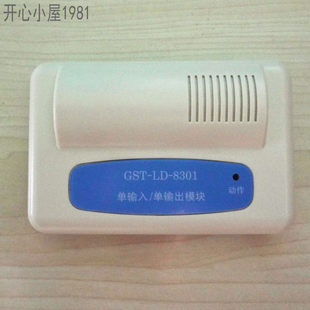

GST-LD-8301 technical features
(1) Working voltage:
Signal bus voltage: bus 24V Allowable range: 16V~28V
Power bus voltage: DC24V Permissible range: DC20V~DC28V
(2) Work current:
bus monitoring current≤1mA bus start current≤3mA
power supply monitoring current≤5mA power supply start current≤20mA
(3) Input inspection line: When the normally open inspection line is closed (short circuit is an action signal), when the normally closed inspection line is input, the input line is short circuit (breaking circuit is an action signal), the module will send a fault signal to the controller.
(4) Output detection line: short circuit or circuit breaker occurs in the output line, and the module will send a fault signal to the controller
(5) Output capacity: Passive output: Capacity is DC24V/2A, and the contact resistance value is 100k in normal timesΩ, closed at startup, suitable for 12V~48V DC or AC active output: Capacity is DC24V/1A
(6) Output control method: pulse, level (relay normally open contact output or active output, relay suction time is 10s when pulse starts)
(7) Indicator: Red (Input indicator: Blinks during inspection, always on during action; Output indicator: Blinks at constant time when starting)
(8) Coding method: Electronic encoding method, occupying a bus encoding point, the encoding range can be set arbitrarily between 1 and 242
(9) Wire system: Use a polarity signal two-wire connection to the fire alarm controller, and use a polarity two-wire connection to the power supply cable
(10) Usage environment:
Temperature: -10℃~+55℃
relative humidity≤ 95%, no dew
(11) Dimension: 86mm×86mm× 43mm (with bottom shell)
(12) Housing material and color: ABS, porcelain white
(13) Weight: about 145g (with bottom shell)
(14) Installation distance: 60mm
(15) Implementation standard: GB 16806-2006
