| Sort by color: | |
| Status: | New |
| In stock: | 840 PCs |
| Approx weight: | 0 kg |
| Sales volume for 30 days: | 2 |
| Price per 1 piece : | 2.59 $ |
| Local delivery: | 0.00 $ |
| Quantity: | + - |
| Selected configuration: | Sort by color: 3-speed 3 terminals (JK423) |
| Total: | 2.59 $ |
| Name: | 佳易坊 |
| Shop name: | 佳易坊汽车配件 |
| Shipping estimate: | 4.95 |
| Goods valuation: | 4.95 |
| Service evaluation: | 4.95 |
| Add vendor to favourites | |

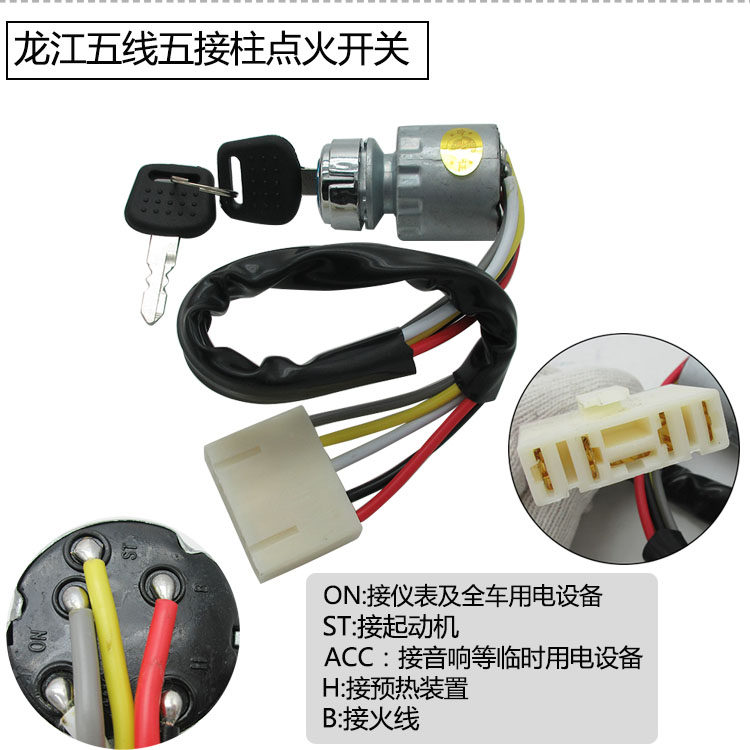

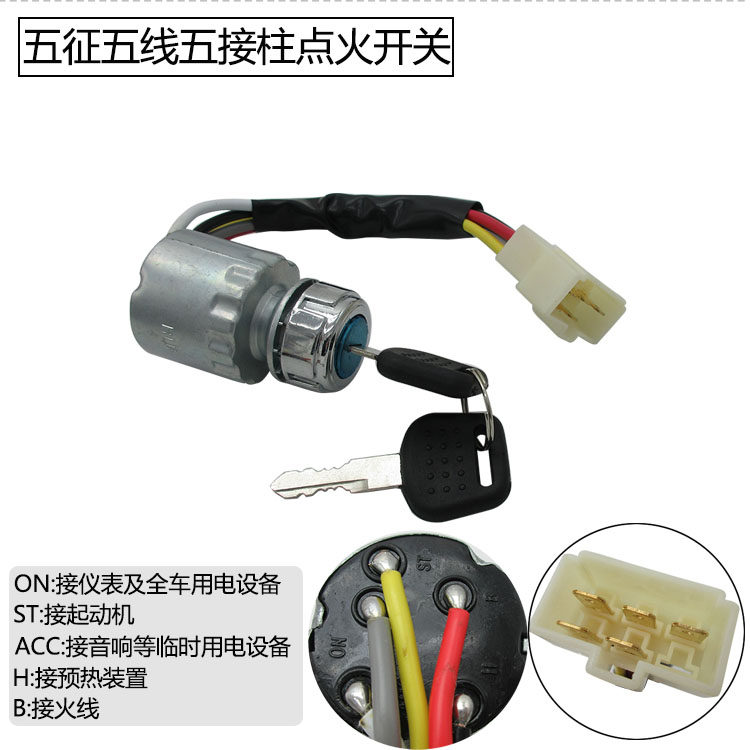

| Sort by color: | 3-speed 3 terminals (JK423); 4-speed 4 terminals (JK424); Longma 4-speed cable; Longjiang 4-speed cable; Five race 4 gears with line; 3 gears and 3 wiring posts Fuda; 3 gears and 3 terminals; Feda; |
| Brand: | FAW; |
| Model: | Modified switch key; |
Shopkeeper's messageTheJK423 type ignition switch, including the closing gear, a total of 3 gears, you can twist it to the right twice, the working gear is the one on the car general electrical equipment, the second lower has an automatic reset function, that is, the start gear is used to control the starter relay.The key can be dialed in the closing gear, that is,Start the file.
The JK424 type ignition switch includes a total of 4 gears. You can twist it to the left to control the auxiliary electrical equipment on the car.You can twist it to the right twice. The first is the working gear, which supports general electrical equipment on the car. The second lower has an automatic reset function, that is, the start gear is used to control the starter.The key can be dialed out in the closing gear, that is, the starting gear.
The 4-speed ignition switch with wires includes a total of 4 gears. You can twist three times to the right. The first is the auxiliary electrical equipment, the second is the working gear, which supports general electrical equipment on the car. The third is the automatic reset function, that is, the start gear is used to control the starter relay.The key can be dialed out in the closing gear, that is, the starting gear.

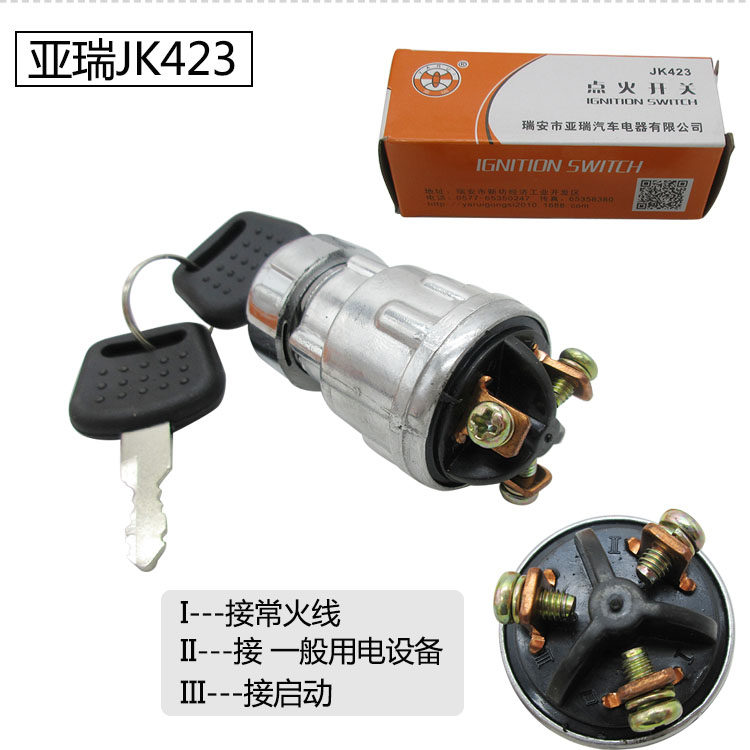

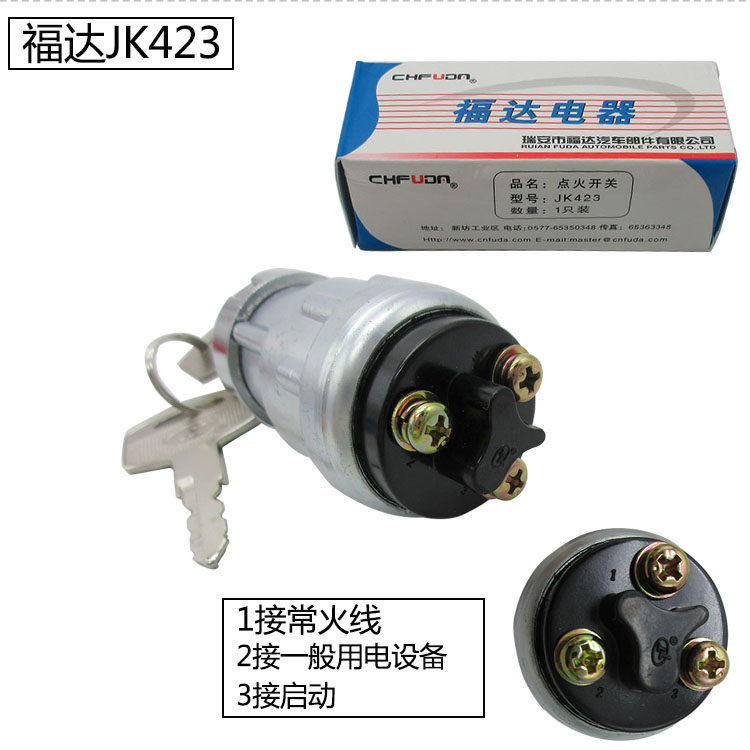

Wiring:The three terminals on the 423 are marked with 1 2 3, 1 is connected to the normal live wire and 2 is connected to the electrical equipment. 3-connect start relay (control starter)

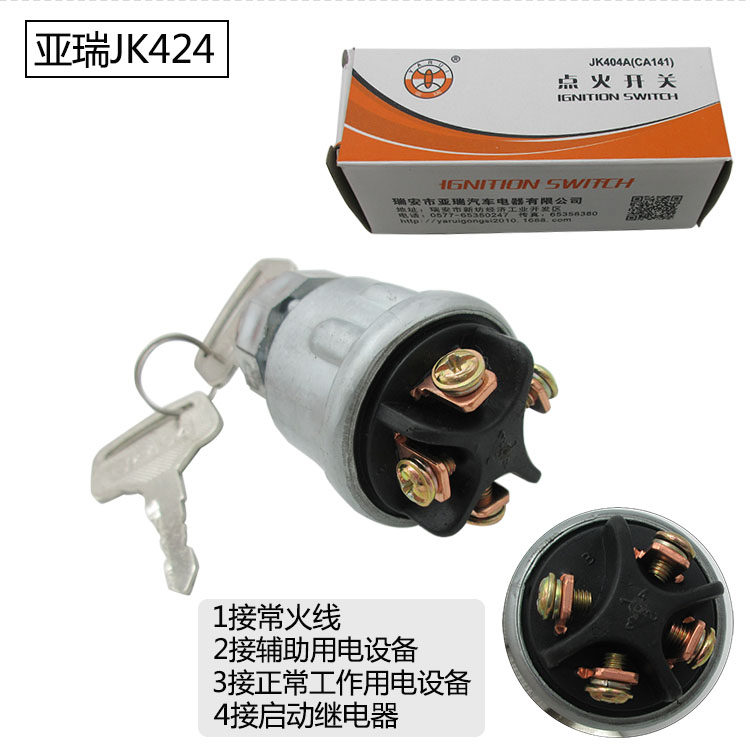

4 terminals on 424, marked with letters BAT connected to the normal fire wire ACC auxiliary electrical equipment IG normal working power equipment ST connection start relay
Special reminder: To control high-power electrical equipment such as headlights or starters, it is best to install a relay. If the relay is not installed, the ignition switch will not be able to withstand such a large current.It can easily burn the electric fire switch.Once burned, the contacts will stick together, which can easily burn out high-power electrical equipment such as the starter.
| |
