| Brand: | TQ; |
| Model: | CoaxJK/V8; |
direct sales by manufacturer eight-way video lightning protection device with extension cord,
Free shipping instructions:“Heilongjiang, Jilin, Liaoning, Gansu, Inner Mongolia, Ningxia, Qinghai, Xinjiang, Tibet,”Except.
Eighth-way video lightning protection device
1. Product introduction and features
CoaxJK/V8 series video lightning protectors are specially designed for the lightning protection requirements of TV monitoring systems, and mainly solve the damage caused by high voltage and high current caused by lightning induction in TV monitoring systems.
This product is specially suitable for the protection of remote transmission lines such as coaxial cables of TV monitoring systems. You only need to pass the coaxial cables entering the monitoring room through the CoaxJK/V8 series equipment first, which can effectively protect the matrix, digital video recorder, and monitors at the back end from damage caused by lightning overvoltage, induced overvoltage, electrostatic discharge, etc.It is suitable for railway communication systems, mobile base stations, differential transfer stations, cable closed-circuit TV CATV, public TV, monitoring system, satellite TV receiving system, video on demand system, etc.
The main feature is:
1. Multi-stage protection circuit is adopted, with low residual voltage level, good protection effect, large flow capacity and rapid response.
2. The core components are made of international famous brands, with excellent performance and reliable work.
3. Easy to use and no maintenance required.
2. Product parameters
Product number CoaxJK/V8
Continuous working voltage Un 5V
Maximum operating voltage Uc 10V
Nominal discharge current In(8/20us) 5KA
Nominal discharge current Imax (8/20us) 10KA
Limit voltage Up 15V
Data transmission rate Vs 10Mbps
Insert loss Ae 0.2dB
Response time Ta 1nS
Interface form BNC
Form of protection Line to line, line to ground
Typical protection DVR/matrix video signal lightning protection
Product specification 168*80*40 (without connector)
working environment temperature-25— +65℃; humidity≤95% (25-30℃)
standard test IEC61643-21:2000
Weight: 700g
3. Equipment instructions
The video lightning protector mainly detects the high-voltage pulse signal in the line, limits the high-voltage and destructive voltage through the third-level protection circuit of the lightning protector to the equipment's withstand voltage value, achieving the purpose of lightning protection.

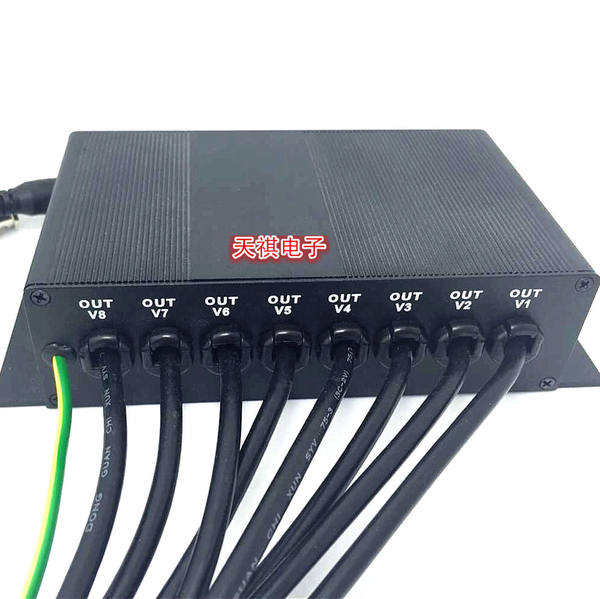

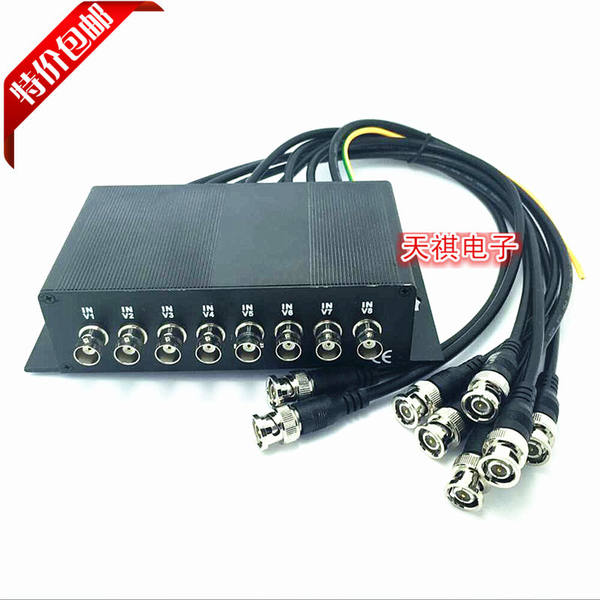

When in use, connect the lines that are susceptible to lightning induction outside to the (IN/lightning terminal) port of the device, and the (OUT/device terminal) port of the device to subsequent matrices, digital video recorders, monitors and other devices.Connect the PE terminal of the device to the ground wire of the control center.
