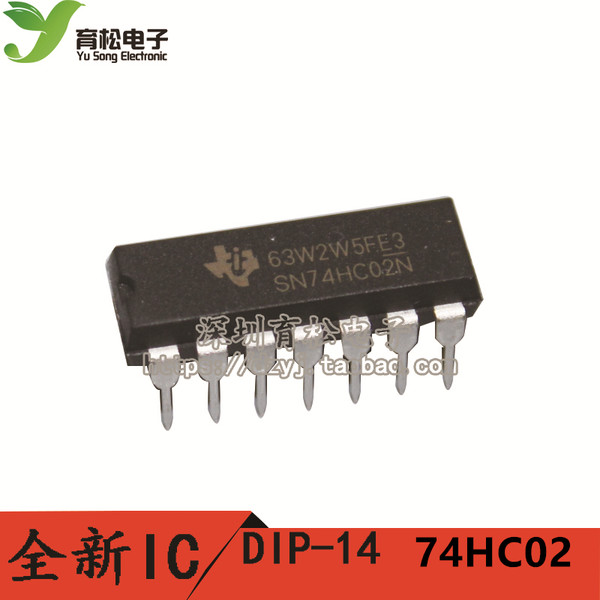

74HC02 2 Input terminal 4 or non-door DIP-14 Shenzhen Yusong Electronics

Product information

Code 178523055
Status: New
In stock: 99999 PCs
Approx weight: 0 kg
Sales volume: 11
Price per 1 piece :
0.17 $23.27 $
Local delivery:
0.00 $
Quantity: + -
Minimal lot:
Total:
23.27 $
Add to cart

Add to favorites

Vendor info

Name: 重庆育松电子经营部
Shop name: 深圳市育松电子元器件模块工具
Add vendor to favourites
IC type: Other;
Brand: Other/Other;
Original description

  • Logical type:NOR
  • Output current: 5.2mA
  • Number of inputs: 2
  • Power supply voltage range: 2V to 6V
  • Packaging type: DIP
  • Number of needles: 14
  • Work temperature range: -40°C to +125°C
  • SVHC (highly followed material): no svhc (20-jun -2011)
  • Device label: 74
  • Packaging type: DIP
  • Work temperature sensitivity: -40°C
  • The highest working temperature: 125°C
  • Power supply voltage: 5V
  • The maximum power supply voltage: 6V
  • The minimum power supply voltage: 2V
  • Chip number: 74HC02
  • Surface installation device: through hole installation
  • Output current Maximum: 5.2mA
  • Logical function number: 02
  • Logic chip function: 42 input positive or non-gate
  • Basic logic chip number: 7402
  • Logic chip series: HC
  • Number of gate circuits: 4
