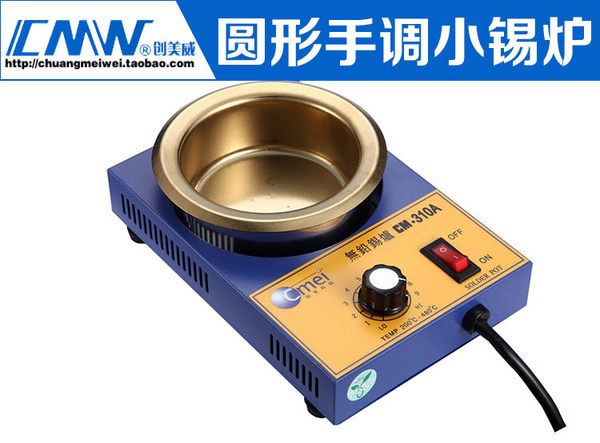

CM-310 Molten furnace welding furnace square-shaped lead-free tin furnace line immersive tin furnace tin furnace soakers























Precautions

1. When working, the tin furnace must be placed in a stable and heat -resistant workbon dealer to prevent high temperature tin from splashing from the tin pot.The overall temperature of tin and furnaces has been high. Be careful to work and beware of burns.
2. When the tin furnace is used for the first time, please do not burn the tin pot to cause the tin oxidation too fast. Please add a small tin or partially dissolved tin to ensure timely heat transfer.
3. Lead -free melting tin furnaces must be placed separately with lead tin furnaces (including all lead -containing items) to prevent lead pollution, which makes lead -free tin with lead tin, resulting in unqualified products.In this regard, the company seriously stated that if such things happen, the company will not bear any responsibility.
4. It is forbidden to use a tin furnace near the flammable gas and flammable and explosive items.
5. When moving the tin furnace, the power must be cut off first, and it must be performed when the tin furnace is cooled to the room temperature.
6. This product is a high -temperature equipment. Remember to cut off the power when not in use to avoid accidents.
7. For the safety and service life of the tin furnace, do not continue to work in the tin furnace continuously12Hour.
8. In order to work normally and the machine can work normally, remember not to burn empty.“Ground line”Power use, and pay attention to“Ground line”Not to be connected“Neutral line” above.
9. The company's melting tin furnace bile adopts Japanese imported titaniumTAIThe material is refined. After a high temperature burning for a while, the surface of the tin pot will become golden or blue. This is normal, and it is also the material characteristics of this metal.
10. The quality assurance of this product is under the conditions of all parts of the brand, otherwise the quality will not be guaranteed.
11. In the case of customers in use, tin pots and thermometers are not guaranteed in the case of strong corrosive materials such as acid, alkali, and tin residue.
12. This tin furnace is a waterproof product, and pay attention to moisture -proof in use.

one,Overview:



   The company developed and developedCMThe series of titanium -free tin furnaces has passed authoritySGSEnvironmental certification, absolutely environmentally friendly lead, customers can use it with confidence. This product tin pot (preheating platform uses aluminum plate) pot uses imported titanium materials and corresponding production technology; with micro -computer chipPIDIntelligent control, it has the characteristics of security and reliability, stable performance, and high accuracy. It is an indispensable ideal tool for the production field of the electronic wire industry.



two,Performance characteristics:



   1,CmThe series of lead -free tin furnaces are equipped with high -power heating core, which can quickly dissolve lead -free tin bars and reach from room temperature450℃, only need to25About minutes (the size of the tin furnace will be slightly different according to the size of the tin furnace).

    2.Smart control of micro -computer chip, dual digital display, intuitive and clear, high thermal sensitivity, rapid return, fast temperature compensation.

    3,Lead -free tin cooker is made of imported titanium materials, high temperature resistance, corrosion resistance, abrasion, and durability.

    4,The tin furnace settings are directly entered using the touch button, simple and accurate.

    5.The data set by the machine can be stored for a long time without being turned off and the power is affected.



three,working environment:



     1,Operating Voltage:AC220±10V(Can be customized110V.

    2.Operating temperature:0– 55Spend

&nbsp;&nbsp;&nbsp; 3,Work temperature: <90%RHNo knot dew

Four,Operation method and functional settings:

&nbsp;

&nbsp;&nbsp;&nbsp;1,temperature setting:

(1), Turn on the power switch of the tin furnace, the operating panel will be displayedTemperature measurement value3.0.0Temperature setting value2.8.0.0.,Use directlyadd+orreduce-The key adjust the temperature setting value, pressadd+orreduce-The key will rise or fall one unit, long pressadd+orreduce-The keys can continue to rise or decrease continuously, and the set temperature value is automatically stored for a long time after two seconds after setting, and is not affected by the turnover and power off.

(2), Open the power supply of the tin furnace, operate the panelDisplay temperature measurement value3.0.0Temperature setting value2.8.0.0., Use the shift key type * to adjust the temperature setting value. When the decimal point stops behind, you can use this numberadd+orreduce-The key is adjusted.The set temperature value is automatically saved for a long time after two seconds after setting, and is not affected by the turnover and power off.

&nbsp;

&nbsp;&nbsp;&nbsp; 2, Micro -computer self -set:

&nbsp;&nbsp;If the deviation of the temperature measurement value and temperature setting value is too high (3-5Degree), or when the temperature measurement value and actual temperature deviation in the furnace are too high (10-20Spend).Please perform self -setting operations, press the shift key * if you don't put the temperature controller for three seconds, automatically enter the self -set state, displayATAnd set the temperature, and the two subtitles will continue to cross the flash, directly20minute-40At the end of the minute, the temperature value you set will be displayed normally.From the end, if you want to exit, press and press the shift key.Factory parameters are optimized values, and generally do not need to be settled.

&nbsp;

&nbsp;&nbsp;&nbsp;&nbsp;3As well asTemperature difference compensation:

&nbsp;&nbsp;&nbsp;&nbsp;If the temperature measurement value and the actual temperature in the furnace have been adjusted by self-tuning, the following methods can be used to correct it.

(1)Hold downCALFunction key for two seconds, displayTemperature measurement value5cTemperature setting value0.0Press at this time+ -The key is compensated.Compensation, pressCALThe function keys twice, save and exit.

Example: The measurement temperature value is higher than the actual temperature in the furnace10Time, usereduce-The key is adjusted to the temperature measurement value5cTemperature setting value-10, Then press the function keyCALSave and exit.On the contrary, the measurement temperature is lower than the actual temperature in the furnace10Time, useadd+ToneTemperature measurement value5cTemperature setting value10, Then press the function keyCALSave and exit.

(2), Factory parameter value.Hold downCALFunction key for two seconds, display5c 0.0, Then press the function key

CALshowLoc cThen press the function keyCAL,Restore the normal window,5cExpress compensation value.

LocExpress the lock, indicating unlocking.

&nbsp;

&nbsp;&nbsp;&nbsp;&nbsp; 4,Precautions:

(1)When self -fixed, other parameters cannot be adjusted.As well as

(2), Perform self -fixed needs20-40In minutes, it is still needed since the end of the rectification10-20The stability of the minute is normal during this period of stability.

5. Fault detection

&nbsp;

1Do not power on, check whether the insurance tube is turned on, or whether the socket is inserted.

2After booting the temperature, the temperature is unchanged, and it does not heat up, indicating that the heating body is broken.

3, After booting, if the display temperature is very high, the right display displayHIAorORAIt has always been flashing, indicating that the thermocouple puppet opens, or the temperature control meter failure.
